Front Timing Belt Cover: Installation

WARNING: This page is about a different car, the 2004 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install front timing belt cover (Figure ).
  2. Install the upper engine mount (Refer to INSTALLATION  ).
  3. Connect fuel supply line at fuel rail (Fig 1 ).

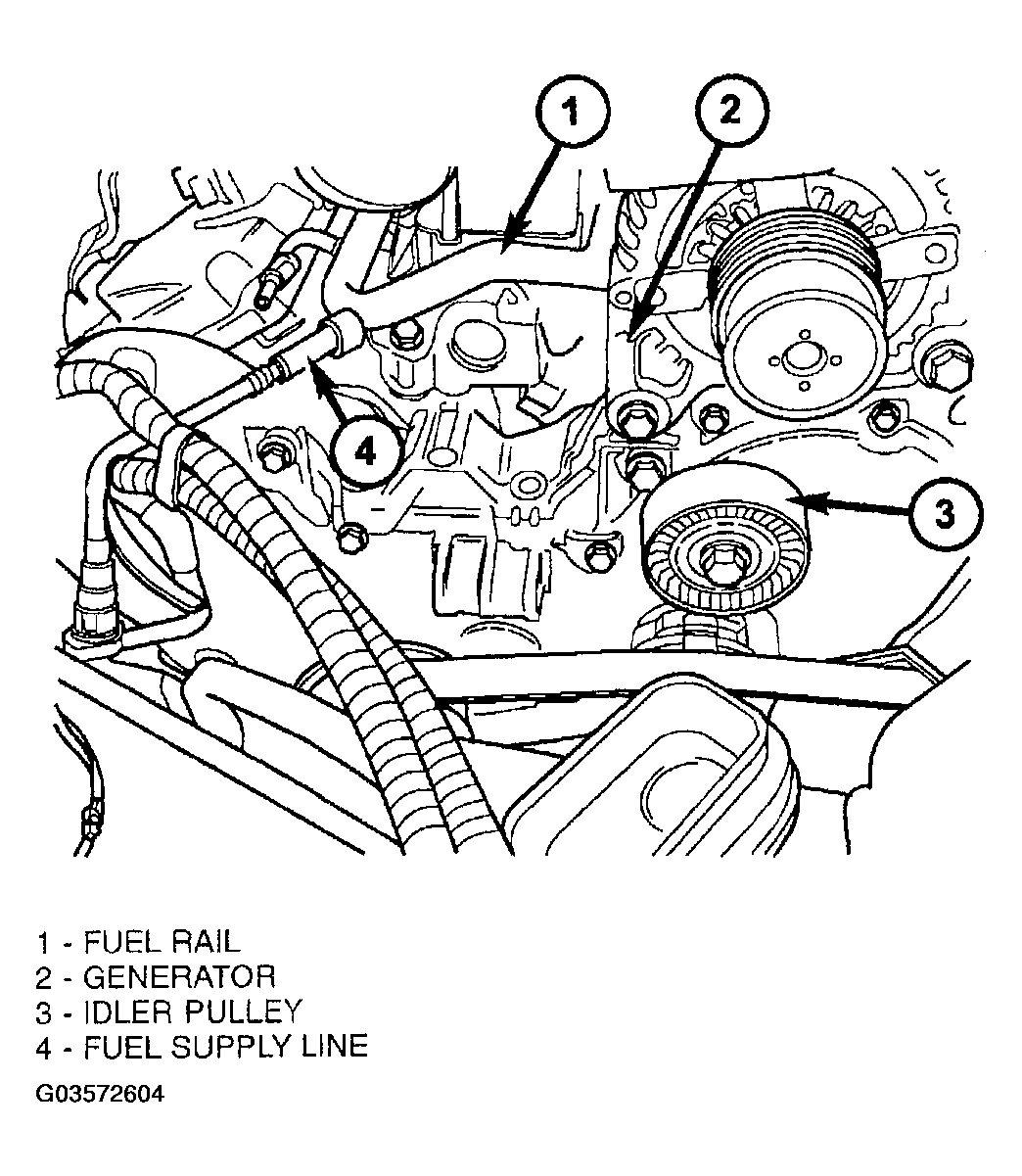

    Fig 1: Connecting Fuel Supply Line At Fuel Rail
    G03572604Courtesy of DAIMLERCHRYSLER CORP.
  4. Install the air cleaner housing (Refer to INSTALLATION  ).
  5. Remove floor jack and raise vehicle.
  6. Install power steering pump fasteners. Tighten bolts to 23 N.m (200 lbs. in..).
  7. Install crankshaft damper (Refer to INSTALLATION  ).
  8. Install accessory drive belt tensioner. Torque fastener to 28 N.m (250 in. lbs.).
  9. Install accessory drive belt (Refer to DRIVE BELTS ).
  10. Lower Vehicle.
  11. Connect negative battery cable.
