Tilt Steering Column: Inspection

  1. INSPECT STEERING LOCK OPERATION

    Check that the steering lock mechanism operates properly.

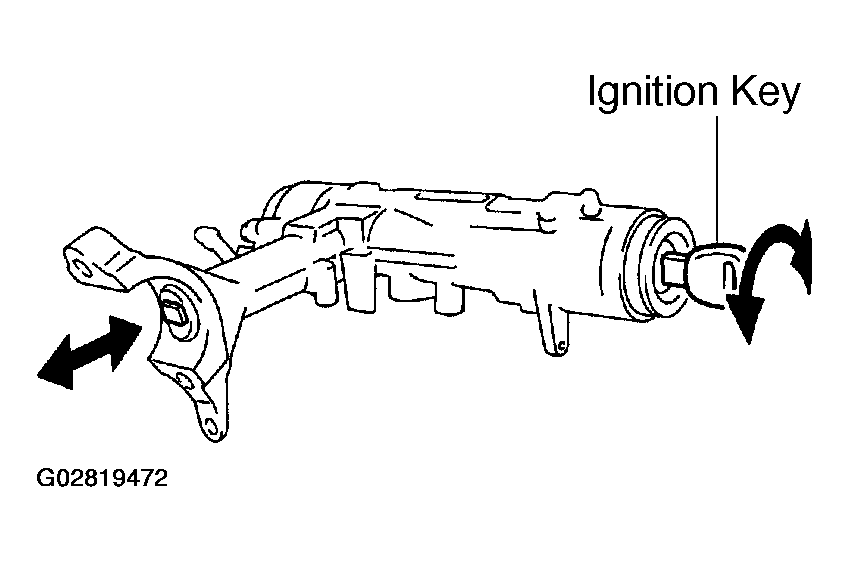

    Fig 1: Inspecting Steering Lock Operation
    G02819472Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. IF NECESSARY, REPLACE KEY CYLINDER
    1. Place the ignition key at the ACC position.

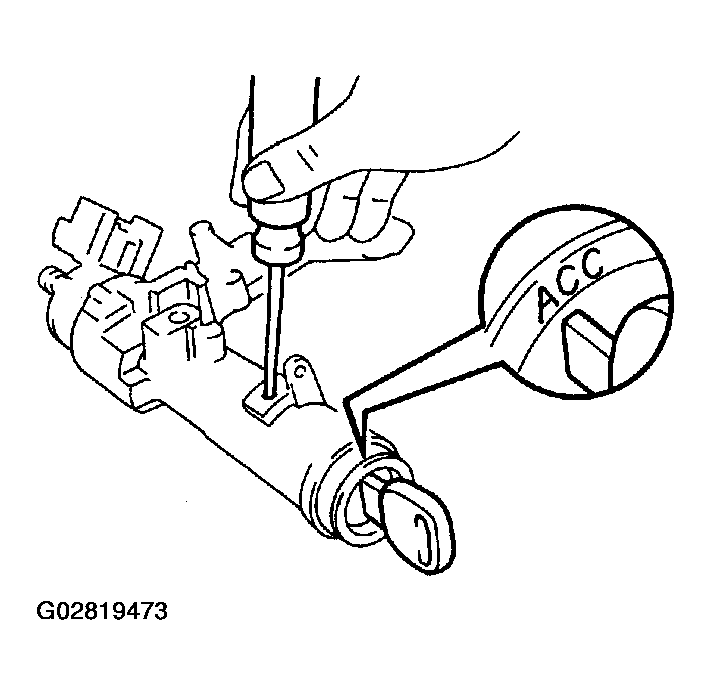

      Fig 2: Removing Key Cylinder
      G02819473Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Push down the stop pin with a screwdriver, and pull out the cylinder.
    3. Install a NEW cylinder.
    NOTE: Make sure the key is at the ACC position.
  3. INSPECT IGNITION SWITCH  See INSPECTION .
  4. IF NECESSARY, REPLACE IGNITION SWITCH
    1. Remove the 2 screws and ignition switch.
    2. Install a NEW ignition switch with the 2 screws.
  5. INSPECT KEY UNLOCK WARNING SWITCH  See INSPECTION .
  6. IF NECESSARY, REPLACE KEY UNLOCK WARNING SWITCH
    1. Slide out the key unlock warning switch.
    2. Slide a NEW key unlock warning switch.
  7. A/T:

    INSPECT KEY INTERLOCK SOLENOID

    (U241E: See  INSPECTION  )

    (A541E: See  INSPECTION  )

  8. A/T:

    IF NECESSARY, REPLACE KEY INTERLOCK SOLENOID

    1. Remove the 2 screws and key interlock solenoid.
    2. Install a NEW key interlock solenoid with the 2 screws.
  9. w/Engine immobilizer system:

    INSPECT TRANSPONDER KEY COIL  See INSPECTION .

  10. w/Engine immobilizer system:

    IF NECESSARY, REPLACE TRANSPONDER KEY COIL

  11. w/Engine immobilizer system:

    IF NECESSARY, REPLACE TRANSPONDER KEY AMPLIFIER

    1. Remove the 2 screws and transponder key amplifier.
    2. Install a NEW transponder key amplifier with the 2 screws.
