Automatic Transmission Shift Lock System - A541E: Inspection

Using a voltmeter, measure voltage at each terminal.

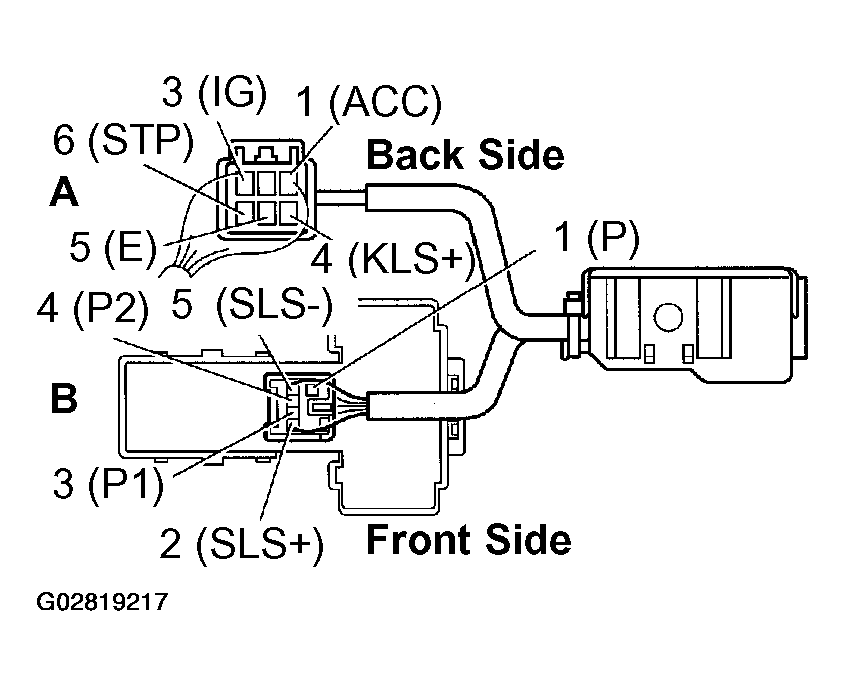

Fig 1: Inspecting Shift Lock Control ECU Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

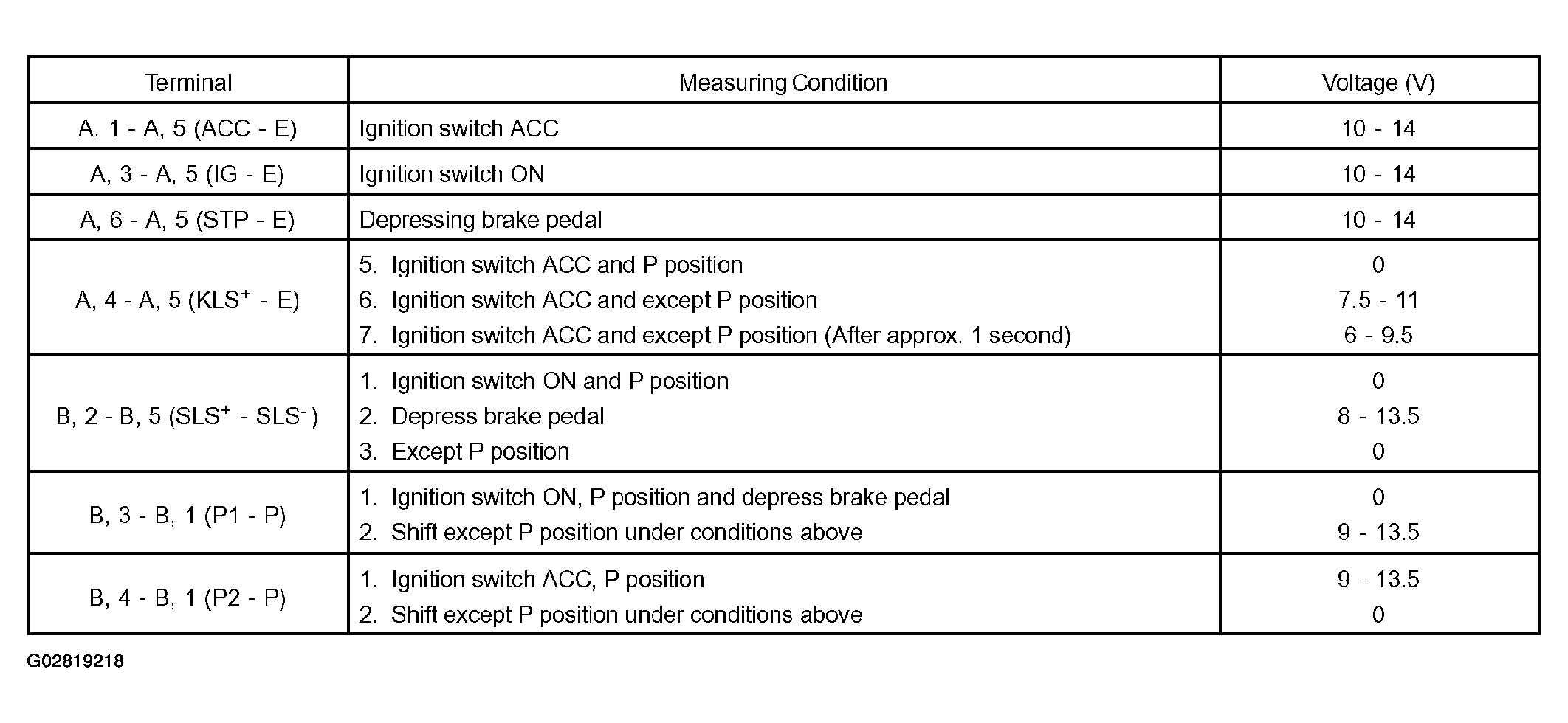

Fig 2: Terminal Voltage Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the solenoid connector.
2. Using an ohmmeter, measure resistance between terminals.

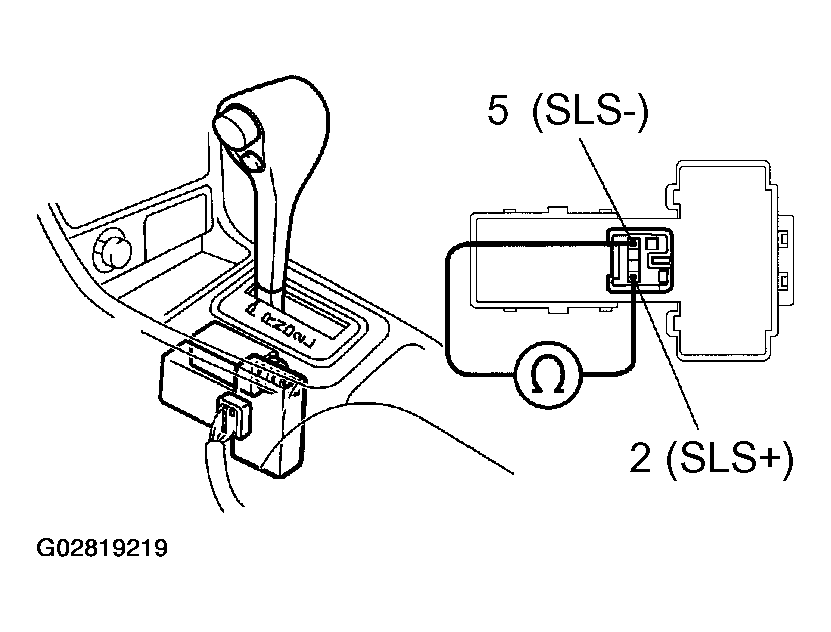

   Fig 3: Measuring Resistance Between Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard resistance: 29 - 35 Ω.

   If resistance value is not as specified, replace the solenoid.

3. Apply battery positive voltage between terminals. Check that operation.

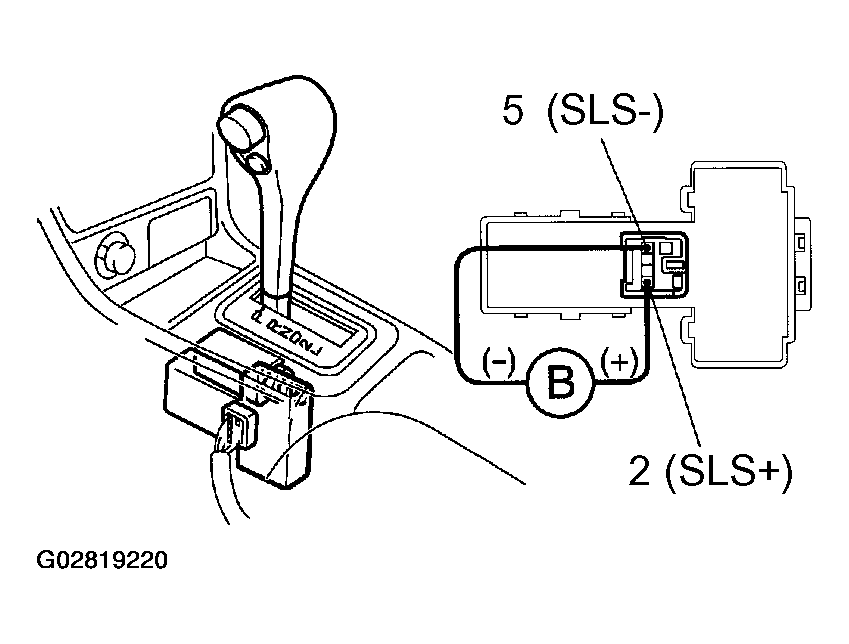

   Fig 4: Testing Shift Lock Solenoid Operation

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the solenoid does not operated, replace the solenoid noise can be heard from the solenoid.

1. Disconnect the solenoid connector.
2. Using an ohmmeter, measure resistance between terminals.

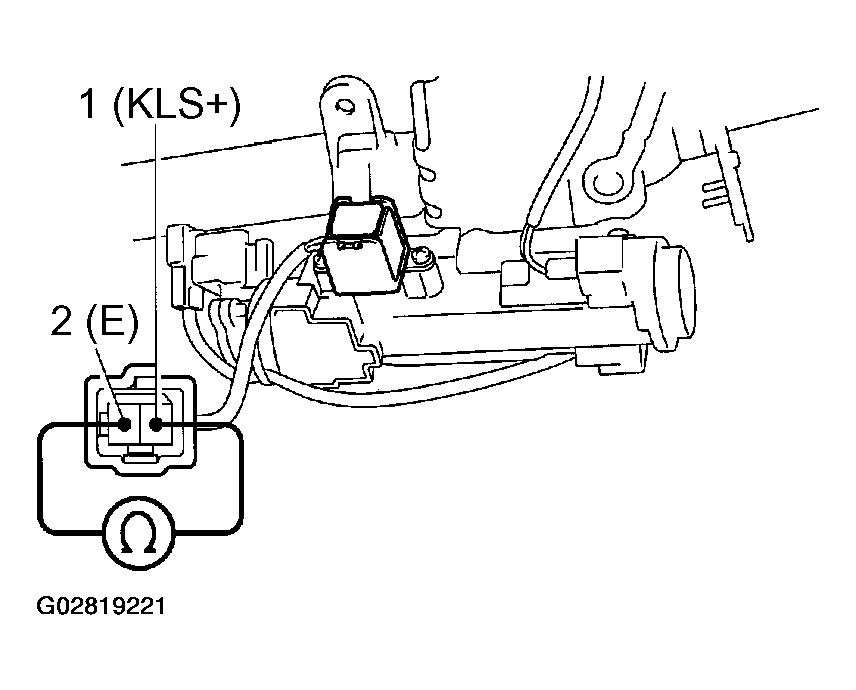

   Fig 5: Measuring Key Interlock Solenoid Resistance

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard resistance: 12.5 - 16.5 Ω.

   If resistance value is not as specified, replace the solenoid.

3. Apply battery positive voltage between terminals. Check that an operation noise can be heard from the solenoid.

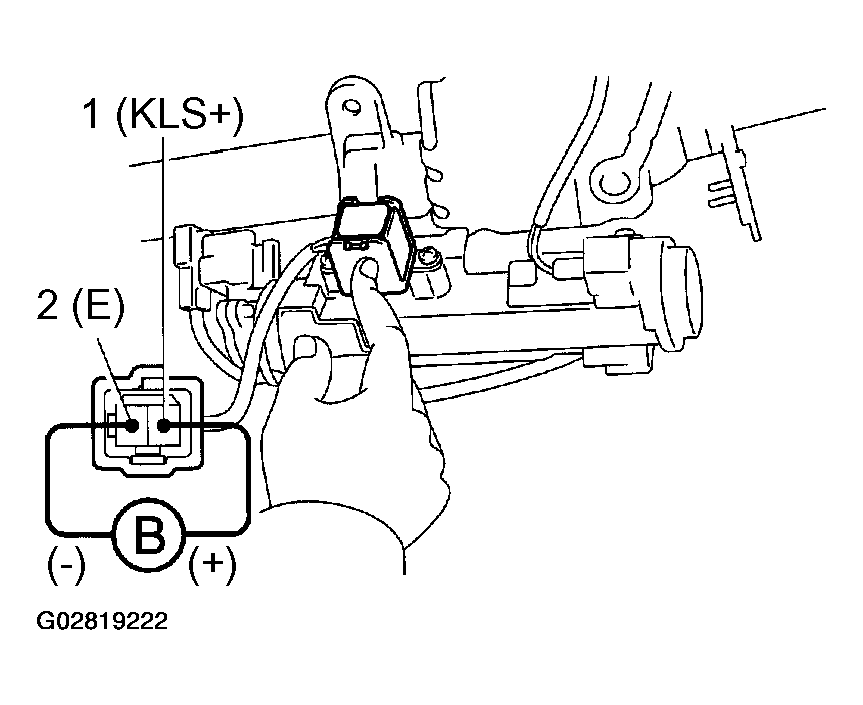

   Fig 6: Testing Key Interlock Solenoid

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   If the solenoid does not operated, replace the solenoid.

Inspect that there is continuity between at each terminal.

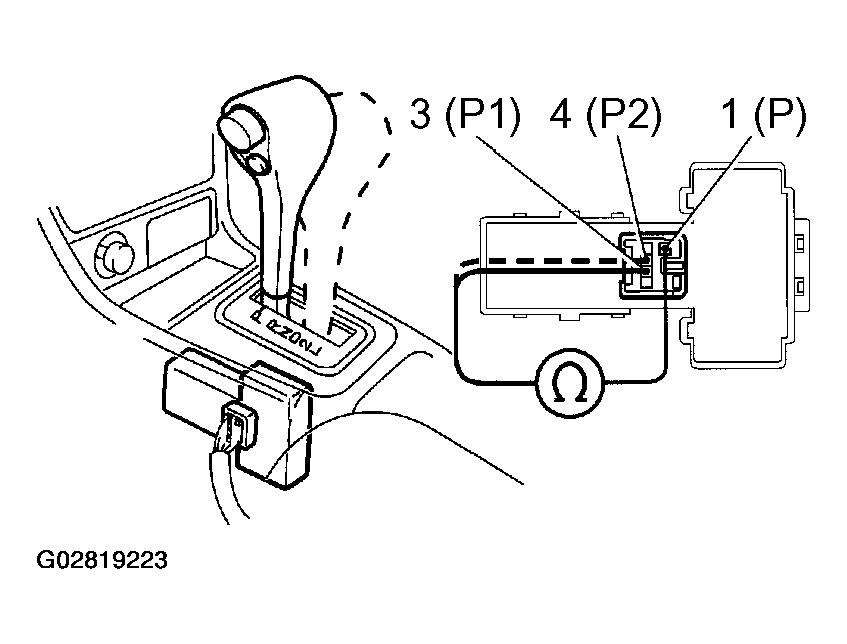

Fig 7: Inspecting Shift Lock Control Switch

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If continuity is not as specified, replace the switch.
