Transmission Range Sensor Removal and Installation: Installation
WARNING: This page is about a different variant/trim than selected.
Reference: TRANSMISSION RANGE SENSOR INSPECTION
CAUTION:
If the transmission range sensor is removed and reinstalled, a gap will be created between the sensor and the manual select lever shaft. This gap prevents the transmission range sensor from correctly identifying the selected transaxle range. Do not reuse any removed transmission range sensor.

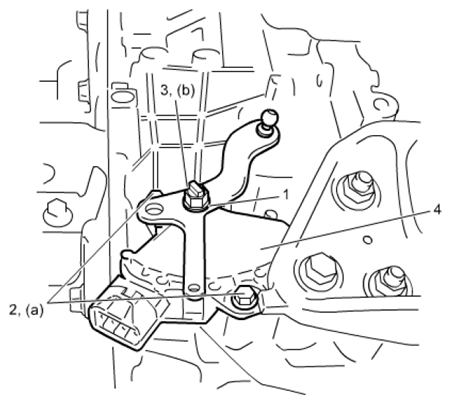

Reverse removal procedure noting the following points.
- Adjust select cable, see SELECT CABLE ADJUSTMENT .
- Use new transmission range sensor (4).
- Use new washer (1).
- Adjust transmission range sensor, see TRANSMISSION RANGE SENSOR ADJUSTMENT .
- Tighten transmission range sensor bolts (2) and new manual select lever nut (3) to specified torque.
Tightening torque
Transmission range sensor bolt (a): 5.9 N.m (0.60 kg-m, 4.5 lbf-ft)
Manual select lever nut (b): 17 N.m (1.7 kg-m, 12.5 lbf-ft)
