Transmission Range Sensor Adjustment

WARNING: This page is about a different variant/trim than selected.

CAUTION: Do not reuse transmission range sensor. Reusing of transmission range sensor may affect the performance of CVT system.

Disconnect negative (-) cable at battery.
Remove air cleaner assembly, see AIR CLEANER ASSEMBLY REMOVAL AND INSTALLATION .
Shift select lever to "N" position and loosen transmission range sensor bolts (1).
Use special tool to align aligning holes on manual select lever (2) and transmission range sensor (3) as shown in figure.
Tighten transmission range sensor bolts to specified torque.
Special Tool
1. 09916-44310
Tightening torque

Transmission range sensor bolt (a): 5.9 N.m (0.60 kg-m, 4.5 lbf-ft)

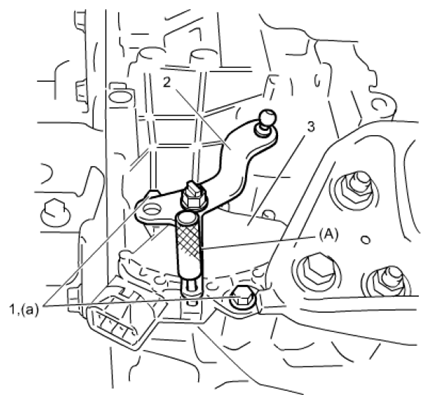

Fig 1: Identifying Transmission Range Sensor Bolt
Courtesy of SUZUKI OF AMERICA CORP.

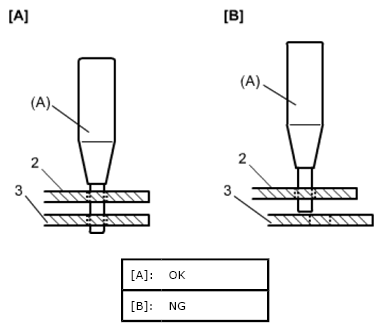

Fig 2: Aligning Holes On Manual Select Lever And Transmission Range Sensor
Courtesy of SUZUKI OF AMERICA CORP.
Check transmission range sensor for the following points.
- Check engine starts at "P" and "N" ranges but does not start at other than "P" and "N" ranges.
- Perform "P" RANGE TEST .
- Check back-up light is turned on when shifting select lever to "R" range.
- Check shift position indicated in information display is consistent with select lever range.
