After Overhaul

Check each piston operation.

CAUTION: If no operation sound is heard, check installation conditions.

NOTE:

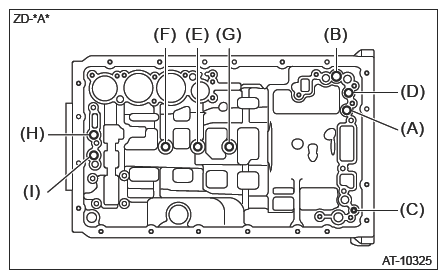

Check the operation sound while blowing compressed air into each oil hole.
When checking the No. 2 clutch, close the C3 accumulator piston hole. Ref. to AUTOMATIC TRANSMISSION>CONTROL VALVE BODY>INSTALLATION>ACCUMULATOR PISTON .

Courtesy of SUBARU OF AMERICA, INC.

Install the oil pump. Ref. to AUTOMATIC TRANSMISSION>OIL PUMP>INSTALLATION .
Install the manual valve lever shaft. Ref. to AUTOMATIC TRANSMISSION>TRANSMISSION CONTROL DEVICE>INSTALLATION .
Install the parking pawl. Ref. to AUTOMATIC TRANSMISSION>PARKING PAWL>INSTALLATION .
Install the accumulator piston and the control valve body. Ref. to AUTOMATIC TRANSMISSION>CONTROL VALVE BODY>INSTALLATION .

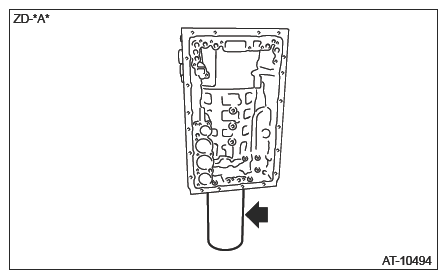

Remove the transmission body from the pipe or tube with approx. 125 mm (4.9 in) in inner diameter.
CAUTION: Be careful not to tip over the transmission body.

Courtesy of SUBARU OF AMERICA, INC.
Install all plugs. Ref. to AUTOMATIC TRANSMISSION>TRANSMISSION CASE>ASSEMBLY>PLUG .
Install the extension case. Ref. to AUTOMATIC TRANSMISSION>EXTENSION CASE>INSTALLATION .
Attach the ST to the transmission body.
Preparation tool:

ST: STAND ASSY (18632AA010)
1. Attach the ST to the transmission body with a rope, etc.
Courtesy of SUBARU OF AMERICA, INC.
Install the ATF cooler pipe union. Ref. to AUTOMATIC TRANSMISSION>ATF COOLER PIPE AND HOSE>INSTALLATION>ATF COOLER PIPE UNION .
Install the air breather pipe. Ref. to AUTOMATIC TRANSMISSION>AIR BREATHER PIPE>INSTALLATION .
Install the output revolution sensor. Ref. to AUTOMATIC TRANSMISSION>OUTPUT SPEED SENSOR>INSTALLATION .
Install the turbine speed sensor. Ref. to AUTOMATIC TRANSMISSION>TURBINE SPEED SENSOR>INSTALLATION .
