Air Breather Pipe: Installation

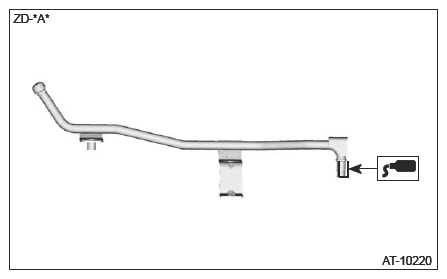

Apply liquid gasket to the air breather pipe insertion section as shown in the figure, and temporarily install the air breather pipe.
NOTE:
- Before applying liquid gasket, degrease the liquid gasket seal surfaces of the air breather pipe and the transmission case.
- Install within 10 min. after applying liquid gasket.
Preparation items:

Liquid gasket: THREE BOND 1281 or equivalent

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.

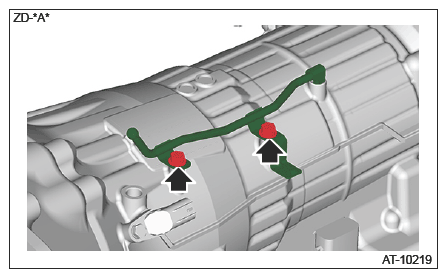

Tighten the bolts which hold the air breather pipe.
Tightening torque:

5.5 N.m (0.6 kgf-m, 4.1 ft-lb)
Install the transmission body. Ref. to AUTOMATIC TRANSMISSION>TRANSMISSION ASSEMBLY>INSTALLATION .
