Front Drive Shaft: Installation

NOTE: When the front drive shaft is removed using the ST, install the caliper body. Ref. to BRAKE>FRONT DISC BRAKE ASSEMBLY>INSTALLATION .

Replace with a new differential side retainer oil seal.
TR580 model:

Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>DIFFERENTIAL SIDE RETAINER OIL SEAL>REPLACEMENT .

TR690 model:

Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>DIFFERENTIAL SIDE RETAINER OIL SEAL>REPLACEMENT .
Replace the circlip with a new part.
Apply differential gear oil to the differential side retainer oil seal lip and front drive shaft insertion section.

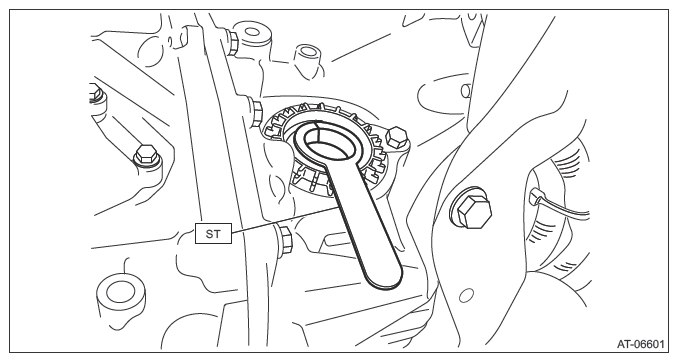

Set the ST to differential side retainer.
Preparation tool:

ST: OIL SEAL PROTECTOR (28399SA010)

Courtesy of SUBARU OF AMERICA, INC.
Insert the front drive shaft spline section into transmission and remove the ST (OIL SEAL PROTECTOR).
NOTE: Remove it before inserting the front drive shaft completely.
Insert the front drive shaft completely.
Insert the front drive shaft into the front hub unit bearing.
CAUTION:
- Be careful not to damage the spline portion of the front drive shaft.
- Be careful not to damage the front hub unit bearing.
- Be careful not to damage the boot of the ball joint.

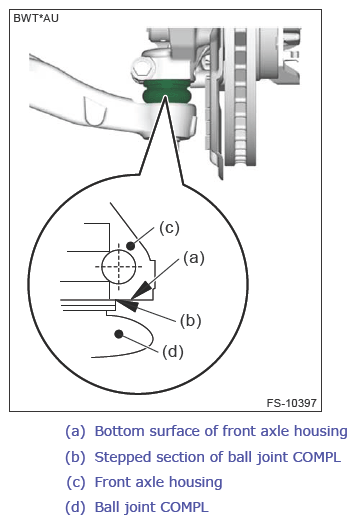

Install the front axle housing to the arm COMPL front.
CAUTION:
- Be careful not to damage the boot of the ball joint.
- Before tightening, make sure the bottom surface of front axle housing and stepped section of ball joint COMPL are in contact.
Tightening torque:

50 N.m (5.1 kgf-m, 36.9 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Install the brake hose bracket.
Tightening torque:

33 N.m (3.4 kgf-m, 24.3 ft-lb)
Install the front exhaust pipe. (LH side) (H4DO model) Ref. to EXHAUST (H4DO)>FRONT EXHAUST PIPE>INSTALLATION .
Install the center exhaust pipe (rear). (LH side) (H4DOTC model) Ref. to CENTER EXHAUST PIPE (REAR) .
Install the crossmember support rear RH. (RH side) Ref. to FRONT SUSPENSION>CROSSMEMBER SUPPORT>INSTALLATION .
Fill differential gear oil.
TR580 model:

Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>DIFFERENTIAL GEAR OIL>REPLACEMENT .

TR690 model:

Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>DIFFERENTIAL GEAR OIL>REPLACEMENT .
While depressing the brake pedal, install the axle nut.
CAUTION: Be sure to use a new axle nut.

Tightening torque:

220 N.m (22.4 kgf-m, 162.3 ft-lb)

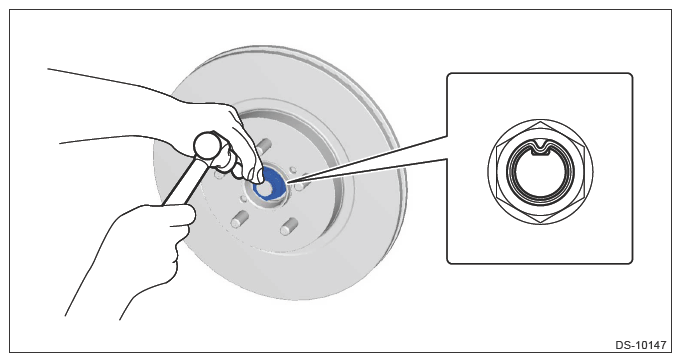

Crimp the axle nut.

Courtesy of SUBARU OF AMERICA, INC.
Install the front wheels. Ref. to WHEEL AND TIRE SYSTEM>TIRE AND WHEEL>INSTALLATION .
Connect the ground terminal to battery sensor. (LH side) (H4DO model) Ref. to REPAIR CONTENTS>NOTE>BATTERY .
Perform the following adjustments using Subaru Select Monitor.
- Lane keep assist learning value clear: Ref. to EYESIGHT (DIAGNOSTICS)>CLEAR ACTIVE LANE KEEP SYSTEM LEARNING VALUE>OPERATION .
- VDC sensor midpoint setting mode: Ref. to VEHICLE DYNAMICS CONTROL (VDC)>VDC CONTROL MODULE AND HYDRAULIC CONTROL UNIT (VDCCM & H/U)>ADJUSTMENT .
