Differential Gear Oil: Replacement

WARNING: This page is about a different variant/trim than selected.
CAUTION: Vehicle components are extremely hot immediately after driving. Be wary of receiving burns from heated parts.

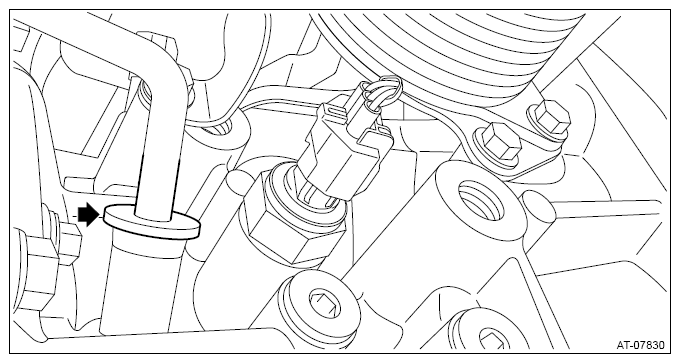

  1. Remove the oil charge pipe cap.
    G13950969Courtesy of SUBARU OF AMERICA, INC.

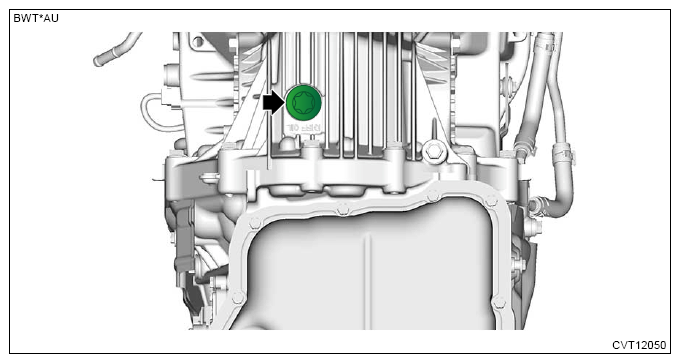

  2. Drain the differential gear oil by removing drain plug using TORX® bit T70.
    G13950970Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the iron powder, etc. from the drain plug.
  4. Attach the drain plug using a new gasket, using TORX® bit T70.

    Tightening torque:

    70 N.m (7.1 kgf-m, 51.6 ft-lb)

  5. Fill with differential gear oil through the oil charge pipe.

    Preparation items:

    Differential gear oil: Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>GENERAL DESCRIPTION>SPECIFICATION>DIFFERENTIAL GEAR OIL .

  6. Check the differential gear oil level. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>DIFFERENTIAL GEAR OIL>INSPECTION .
