Transmission Case: Removal

  1. Remove the transmission assembly from the vehicle. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR690)>Automatic Transmission Assembly>REMOVAL .
  2. Remove the air breather hose. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR690)>Air Breather Hose>REMOVAL .
  3. Remove the transmission harness. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR690)>Transmission Harness>REMOVAL .
  4. Remove the secondary speed sensor. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR690)>Secondary Speed Sensor>REMOVAL .
  5. Remove the oxygen sensor harness and harness bracket.
    G10276279Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the inhibitor switch. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR690)>Inhibitor Switch>REMOVAL .
  7. Remove the extension case. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR690)>Extension Case>REMOVAL .
  8. Remove the rear drive shaft. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR690)>Rear Drive Shaft>REMOVAL .
  9. Remove the transfer clutch assembly. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR690)>Transfer Clutch>REMOVAL .
  10. Remove the transfer reduction driven gear assembly. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR690)>Transfer Reduction Driven Gear>REMOVAL .
  11. Remove the intermediate case. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR690)>Intermediate Case>REMOVAL .
  12. Remove the forward clutch assembly. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR690)>Forward Clutch Assembly>REMOVAL .
  13. Remove the reduction driven gear. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR690)>Reduction Driven Gear>REMOVAL .
  14. Remove the oil pan and control valve body. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR690)>Control Valve Body>REMOVAL .
    NOTE: When removing the control valve body, also remove the pressure pipe if it is attached on the case.
    G06654622Courtesy of SUBARU OF AMERICA, INC.

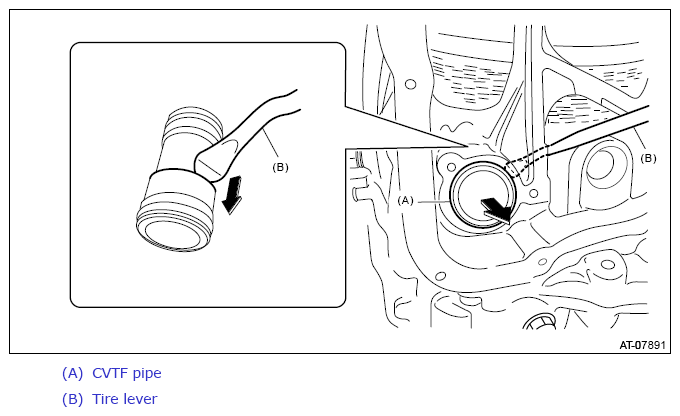

  15. Remove the CVTF pipe using a tire lever etc.
    NOTE: Remove by hooking the stepped portion of CVTF pipe with a tire lever etc.
    G12410849Courtesy of SUBARU OF AMERICA, INC.
  16. Remove the transmission case.
    NOTE: The total number of transmission case mounting bolts is 15.
  17. Remove the O-ring of lubrication pipe.
    G06654624Courtesy of SUBARU OF AMERICA, INC.
  18. Remove the control device system. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR690)>Transmission Control Device>REMOVAL .
