Inhibitor Switch: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. While pressing the shift lock release button, shift the select lever to the "N" range.
  3. Lift up the vehicle.
  4. Remove the front exhaust pipe. Ref. to EXHAUST(H6DO)>Front Exhaust Pipe>REMOVAL .
  5. Remove the harness stay.
    G10276056Courtesy of SUBARU OF AMERICA, INC.

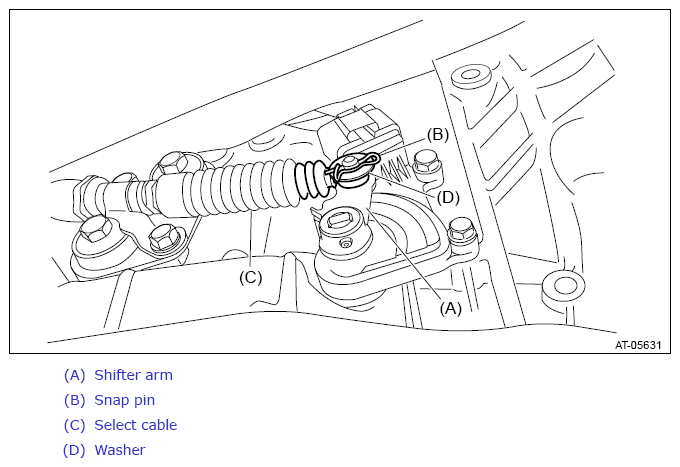

  6. Remove the snap pin and washer, and disconnect the select cable.
    CAUTION: Do not apply extra overload while holding the part (A).
    G11255302Courtesy of SUBARU OF AMERICA, INC.
    G12410626Courtesy of SUBARU OF AMERICA, INC.

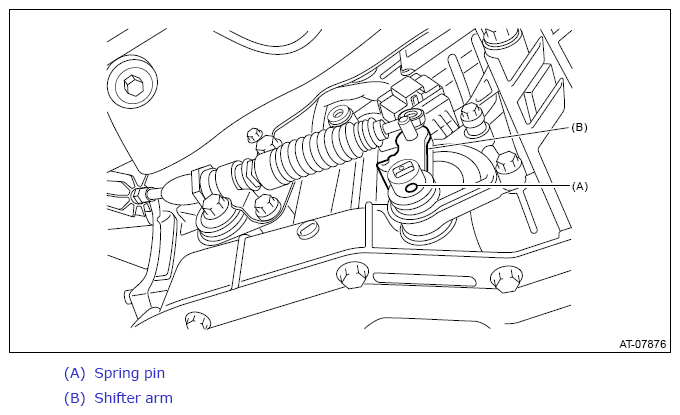

  7. Remove the spring pin and shifter arm.
    G12410627Courtesy of SUBARU OF AMERICA, INC.
  8. Remove the inhibitor harness connector from inhibitor switch.
  9. Remove the two inhibitor switch securing bolts.
    G07913384Courtesy of SUBARU OF AMERICA, INC.
  10. Remove the inhibitor switch.
