Forward Clutch Assembly: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the transmission from the vehicle. <Ref. to REMOVAL , Automatic Transmission Assembly.>
  2. Remove the extension case. <Ref. to REMOVAL , Extension Case.>
  3. Remove the rear drive shaft. <Ref. to REMOVAL , Rear Drive Shaft.>
  4. Remove the transfer clutch assembly. <Ref. to REMOVAL , Transfer Clutch.>
  5. Remove the center differential carrier. <Ref. to REMOVAL , Center Differential Carrier.>
  6. Remove the transfer reduction driven gear. <Ref. to REMOVAL , Transfer Reduction Driven Gear.>
  7. Remove the intermediate case. <Ref. to REMOVAL , Intermediate Case.>
  8. Remove the thrust needle bearing.

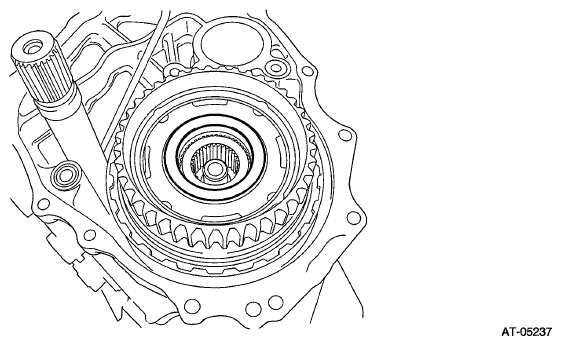

    Fig 1: Removing Thrust Needle Bearing
    G06654566Courtesy of SUBARU OF AMERICA, INC.
  9. Remove the forward clutch assembly.
    Fig 2: Removing Forward Clutch Assembly
    G06654567Courtesy of SUBARU OF AMERICA, INC.
  10. Remove the washer.
Fig 3: Installing Selected Washer
G06654568Courtesy of SUBARU OF AMERICA, INC.
