Reverse Brake Assembly: Removal
- Remove the transmission assembly. < Ref. to
REMOVAL , Automatic Transmission Assembly. >
- Remove the air breather hose. < Ref. to
REMOVAL , Air Breather Hose. >
- Remove the control valve body. < Ref. to
REMOVAL , Control Valve Body. >
- Remove the transmission harness. < Ref. to
REMOVAL , Transmission Harness. >
- Remove the turbine speed sensor. < Ref. to
REMOVAL , Turbine Speed Sensor. >
- Remove the secondary speed sensor. < Ref. to
REMOVAL , Secondary Speed Sensor. >
- Remove the primary speed sensor. < Ref. to
REMOVAL , Primary Speed Sensor. >
- Remove the inhibitor switch. < Ref. to
REMOVAL , Inhibitor Switch. >
- Remove the extension case. < Ref. to
REMOVAL , Extension Case. >
- Remove the transfer clutch assembly. < Ref. to
REMOVAL , Transfer Clutch. >
- Remove the transfer driven gear assembly. < Ref. to
REMOVAL , Transfer Driven Gear. >
- Remove the parking pawl. < Ref. to
REMOVAL , Parking Pawl. >
- Remove the reduction driven gear assembly. < Ref. to
REMOVAL , Reduction Driven Gear. >
- Remove the oil pan and oil strainer. < Ref. to
REMOVAL , Oil Pan and Strainer. >
- Remove the transmission control device. < Ref. to
REMOVAL , Transmission Control Device. >
- Remove the transmission case. < Ref. to
REMOVAL , Transmission Case. >
- Remove the reduction drive gear. < Ref. to
REMOVAL , Reduction Drive Gear. >
- Remove the primary pulley, secondary pulley and variator chain. < Ref. to
REMOVAL , Primary Pulley and Secondary Pulley. >
- Remove the manual valve assembly and separator plate.
Courtesy of SUBARU OF AMERICA, INC.

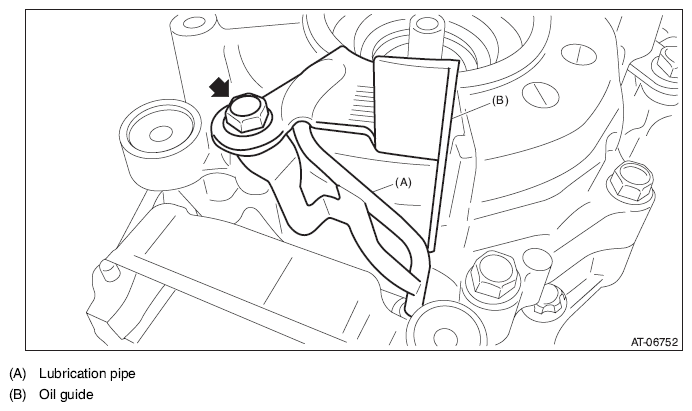

- Remove the oil guide and lubrication pipe.
Courtesy of SUBARU OF AMERICA, INC.
- Remove the O-ring from lubrication pipe.
Courtesy of SUBARU OF AMERICA, INC.
- Remove the reverse brake assembly.
Courtesy of SUBARU OF AMERICA, INC.
- Remove the O-rings.
Courtesy of SUBARU OF AMERICA, INC.
