Inhibitor Switch: Removal

Disconnect the ground terminal from battery sensor. < Ref. to BATTERY , NOTE, Repair Contents. >
While pressing the shift lock release button, shift the select lever to the "N" range.
Lift up the vehicle.
Remove the center exhaust pipe. < Ref. to REMOVAL , Center Exhaust Pipe. >
Remove the snap pin and washer.

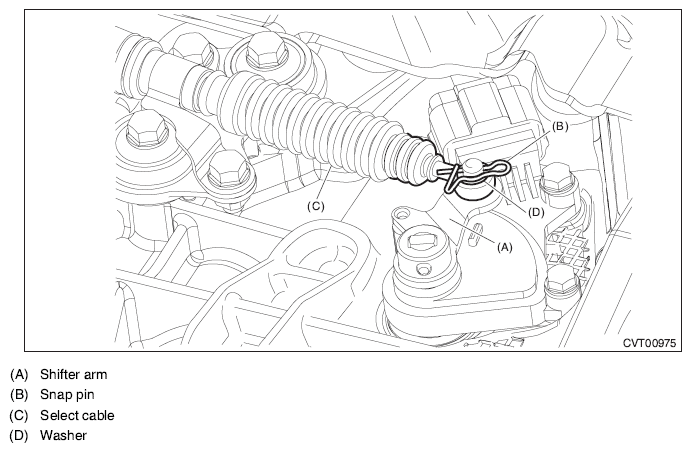

Fig 1: Identifying Shifter Arm, Select Cable, Snap Pin And Washer
Courtesy of SUBARU OF AMERICA, INC.
Remove the spring pin and shifter arm.

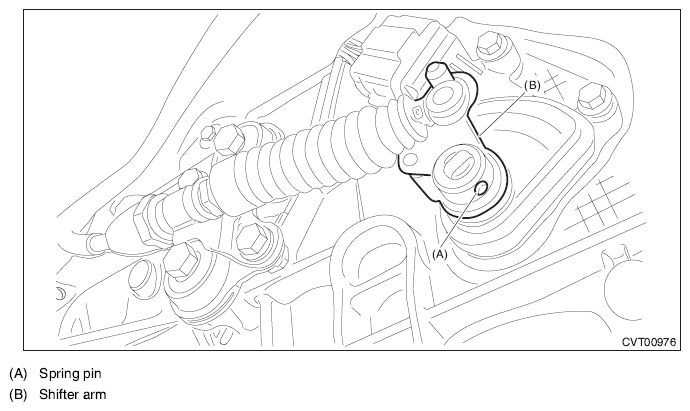

Fig 2: Identifying Spring Pin And Shifter Arm
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the inhibitor harness connector.
Remove the inhibitor switch.

Fig 3: Identifying Inhibitor Switch Harness Connector
Courtesy of SUBARU OF AMERICA, INC.
