Oil Pump: Installation

WARNING: This page is about a different variant/trim than selected.

Apply engine oil to the O-ring and attach it to the oil pan upper.
NOTE: Use new O-rings.

Fig 1: Locating Oil Pan Upper O-Ring
Courtesy of SUBARU OF AMERICA, INC.
Apply liquid gasket to the mating surfaces of strainer.
Liquid gasket:

THREE BOND 1217G (Part No. K0877Y0100) or equivalent

Liquid gasket applying diameter:

2.0±1.0 mm (0.079±0.039 in)
NOTE:
- Install within 5 min. after applying liquid gasket.
- After installing the strainer, remove any liquid gasket that is squeezed out.
Fig 2: Identifying Liquid Gasket Applying Area On Mating Surfaces Of Strainer
Courtesy of SUBARU OF AMERICA, INC.
Install the strainer to the oil pump.
Tightening torque:

6.4 N.m (0.7 kgf-m, 4.7 ft-lb)
Install the stiffener and the oil pump.
Tightening torque:

T1: 13 N.m (1.3 kgf-m, 9.6 ft-lb)

T2: 24 N.m (2.4 kgf-m, 17.7 ft-lb)

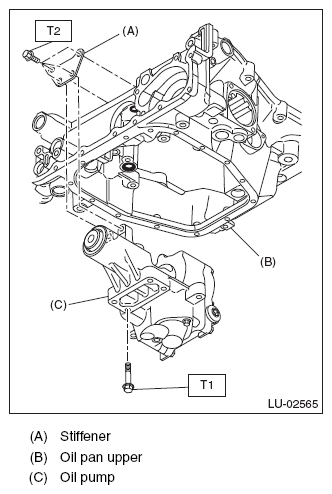

Fig 3: Stiffener, Oil Pump And Mounting Bolts With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Install the oil pan lower. Refer to INSTALLATION .
Install the timing chain. Refer to INSTALLATION .
Install the chain cover. Refer to INSTALLATION .
Install the crank pulley. Refer to INSTALLATION .
Install the V-belts. Refer to INSTALLATION .
Install the radiator. Refer to INSTALLATION .
Lift up the vehicle.
Install the under cover. Refer to INSTALLATION .
Lower the vehicle.
Fill the ATF. Refer to FILLING OF ENGINE COOLANT .
Refill the engine oil. Refer to REPLACEMENT .
Check the engine oil level. Refer to INSPECTION .
