Chain Cover: Installation

WARNING: This page is about a different variant/trim than selected.

Apply liquid gasket to the mating surfaces of the cylinder block, cylinder head and oil pan upper as shown in the figure.
Liquid gasket:

THREE BOND 1217G (Part No. K0877Y0100) or equivalent

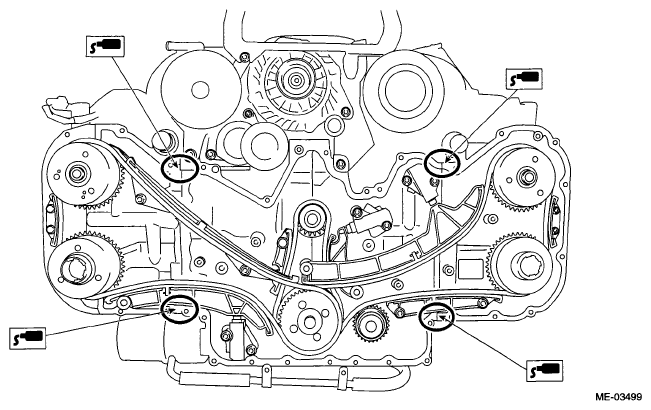

Fig 1: Applying Liquid Gasket To Mating Surfaces Of Cylinder Block, Cylinder Head And Oil Pan Upper
Courtesy of SUBARU OF AMERICA, INC.
Apply liquid gasket to the mating surface of the chain cover.
NOTE: Install within 5 min. after applying liquid gasket.

Liquid gasket:

THREE BOND 1217G (Part No. K0877Y0100) or equivalent

Liquid gasket applying diameter:

3.5±0.5 mm (0.138±0.020 in)

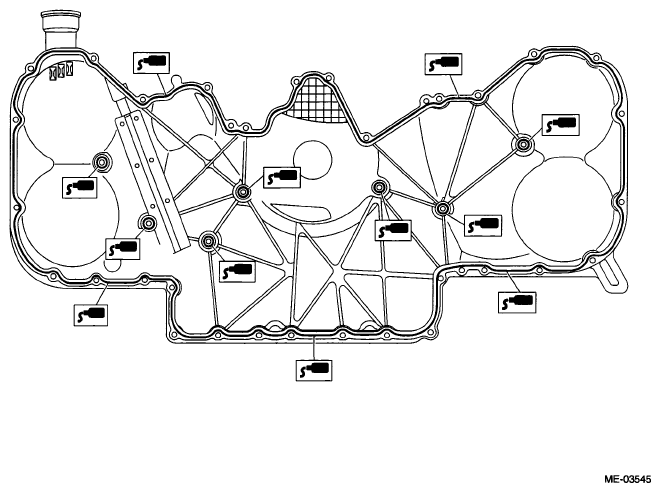

Fig 2: Applying Liquid Gasket To Mating Surface Of Chain Cover
Courtesy of SUBARU OF AMERICA, INC.
Attach the chain cover and temporarily tighten the chain cover installation bolts.
CAUTION: Do not install the chain cover installation bolts in wrong place.

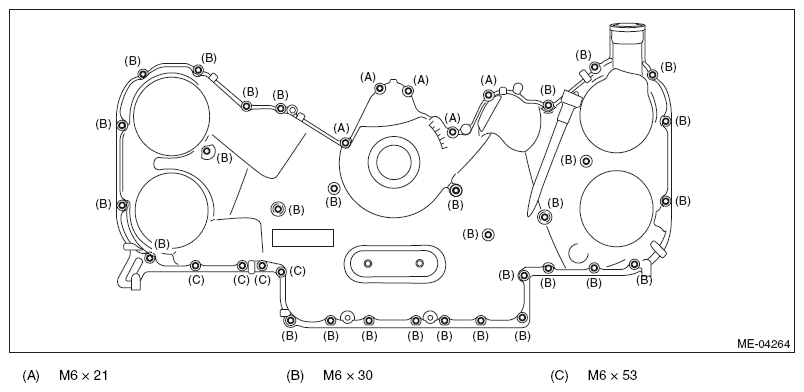

Fig 3: Identifying Chain Cover Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.
Tighten the chain cover installing bolts in the numerical order as shown in the figure.
Tightening torque:

10 N.m (1.0 kgf-m, 7.4 ft-lb)

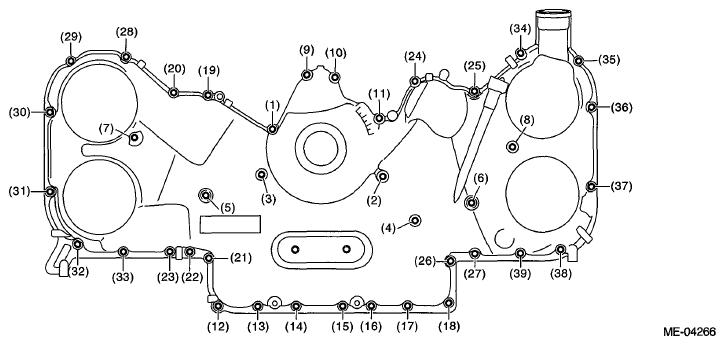

Fig 4: Identifying Chain Cover Mounting Bolts Tightening Sequence
Courtesy of SUBARU OF AMERICA, INC.
Install the oil cooler pipe to the chain cover.
Tightening torque:

6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

Fig 5: Locating Oil Cooler Pipe Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.
Install front mounting bracket to the cradle.
Tightening torque:

60 N.m (6.1 kgf-m, 44.3 ft-lb)

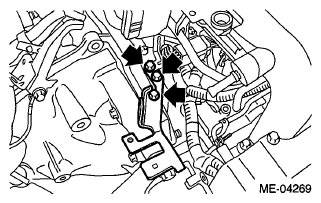

Fig 6: Locating Cradle Front Mounting Bracket Bolts
Courtesy of SUBARU OF AMERICA, INC.
Install the front mount.
Tightening torque:

T1: 25 N.m (2.5 kgf-m, 18.4 ft-lb)

T2: 45 N.m (4.6 kgf-m, 33.2 ft-lb)

Fig 7: Identifying Front Mounting Bolts Tightening Torques
Courtesy of SUBARU OF AMERICA, INC.
Remove the lifting device and wire ropes.
Install the crank pulley. Refer to INSTALLATION .
Install the radiator. Refer to INSTALLATION .
Install the radiator main & fan motor and radiator sub fan & fan motor. Refer to INSTALLATION .
Install the reservoir tank. Refer to REMOVAL .
Install the V-belts. Refer to INSTALLATION .
Attach the grille bracket.

Fig 8: Locating Grille Bracket Fixing Clips
Courtesy of SUBARU OF AMERICA, INC.
Install the throttle body to intake manifold.
NOTE: Use a new gasket.

Tightening torque:

8 N.m (0.8 kgf-m, 5.9 ft-lb)
Remove the ST (HANGER) and install the engine hanger bracket.
Tightening torque:

19 N.m (1.9 kgf-m, 14.0 ft-lb)

Fig 9: Locating Engine Hanger Bracket Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.
Install the engine harness connector to the engine hanger bracket.

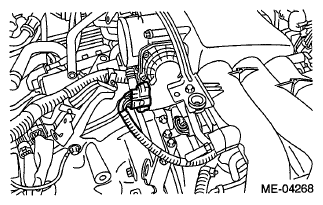

Fig 10: Identifying Engine Hanger Bracket Harness Connector
Courtesy of SUBARU OF AMERICA, INC.
Connect the connector to the throttle body.

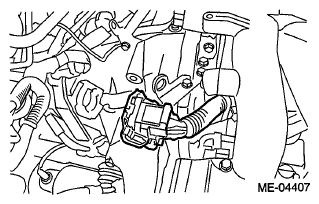

Fig 11: Identifying Throttle Body Connector
Courtesy of SUBARU OF AMERICA, INC.
Connect the engine harness connector.

Fig 12: Identifying Engine Harness Connector
Courtesy of SUBARU OF AMERICA, INC.
Install the V-belts. Refer to INSTALLATION .
Install the air intake boot assembly.
Tightening torque:

Clamp (A)

3 N.m (0.3 kgf-m, 2.2 ft-lb)

Bolt (B)

6.5 N.m (0.7 kgf-m, 4.8 ft-lb)

Fig 13: Identifying Clamp Securing Air Intake Boot Assembly To Collector Cover Bracket
Courtesy of SUBARU OF AMERICA, INC.
Install the air intake duct. Refer to INSTALLATION .
Install the front exhaust pipe. Refer to INSTALLATION .
Fill engine coolant. Refer to FILLING OF ENGINE COOLANT .
Fill engine oil. Refer to REPLACEMENT .
Make sure there is no oil leaks in the chain cover mating surface.
Install the under cover. Refer to INSTALLATION .
Install the collector cover.
Change the bolt mounting position from (B) to (A), and completely close the front hood.
Tightening torque:

20 N.m (2.0 kgf-m, 14.8 ft-lb)

Fig 14: Identifying Front Hood Damper Bolt Mounting Position
Courtesy of SUBARU OF AMERICA, INC.
