Oil Pan: Installation

WARNING: This page is about a different variant/trim than selected.

Apply liquid gasket to the mating surfaces of oil pan, and install the oil pan lower.
NOTE: Install within 5 min. after applying liquid gasket.

Liquid gasket:

THREE BOND 1217G (Part No. K0877Y0100) or equivalent

Liquid gasket applying diameter:

5.0±1.0 mm (0.197±0.039 in)

Fig 1: Identifying Liquid Gasket Applying Area On Mating Surfaces Of Oil Pan
Courtesy of SUBARU OF AMERICA, INC.
Tighten the oil pan lower installing bolts in the numerical order as shown in the figure.
Tightening torque:

6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

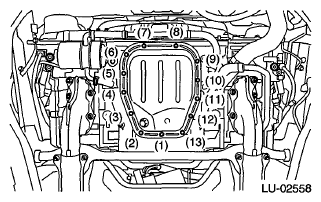

Fig 2: Identifying Tightening Sequence Of Oil Pan Lower Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.
Install the under cover. Refer to INSTALLATION .
Lower the vehicle.
Refill the engine oil. Refer to REPLACEMENT .
Check the engine oil level. Refer to INSPECTION .
