Tilt Steering Column: Removal

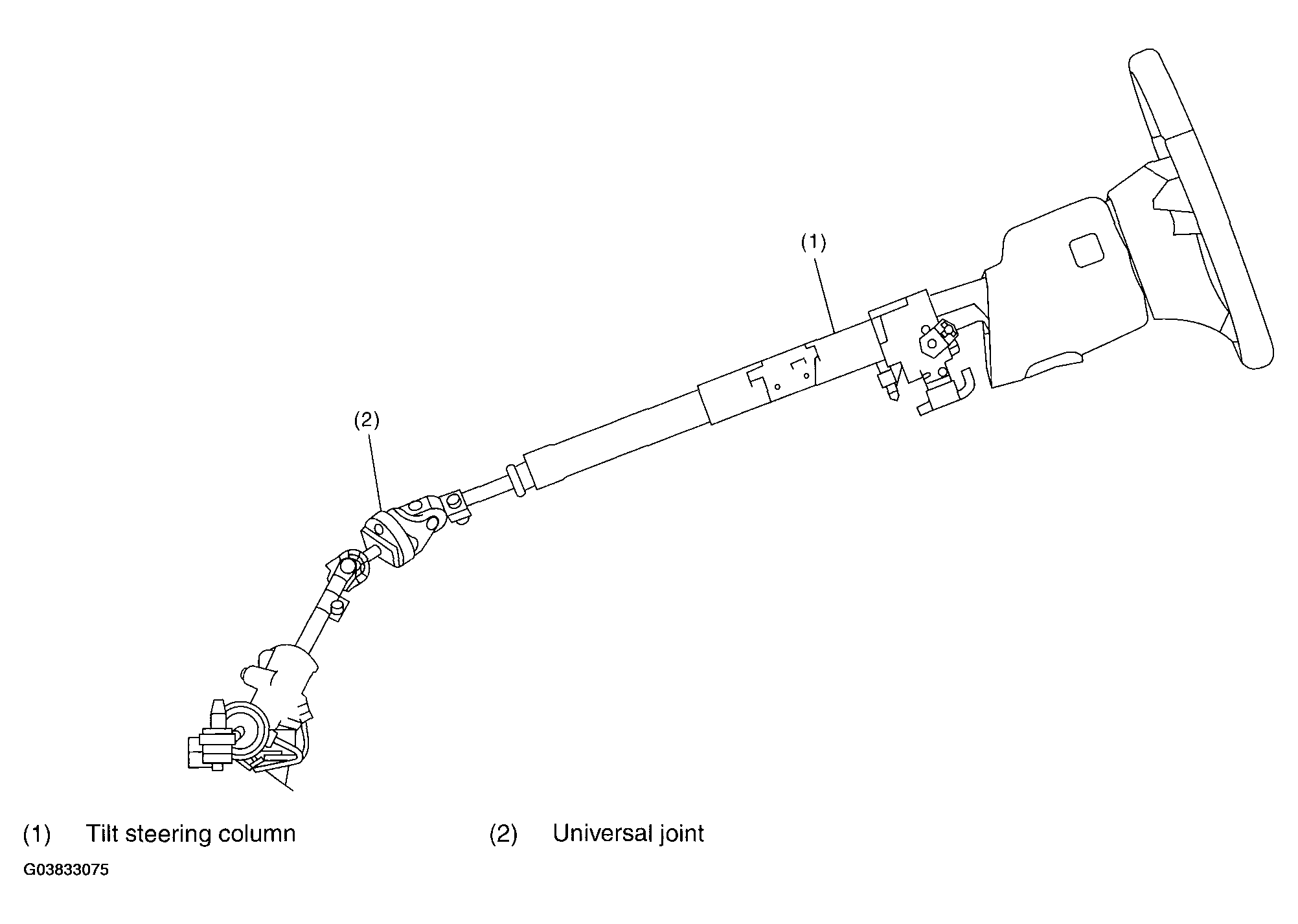

Fig 1: Removing Tilt Steering Column
G03833075Courtesy of SUBARU OF AMERICA, INC.
  1. Remove the steering wheel. < Ref. to , REMOVAL , Steering Wheel. >
  2. Remove the universal joint. < Ref. to , REMOVAL , Universal Joint. >
  3. Remove the instrument panel lower cover under.
  4. Remove the instrument panel lower cover upper.
  5. Remove all connectors from the steering column.
  6. Remove the two bolts under instrument panel securing steering column.

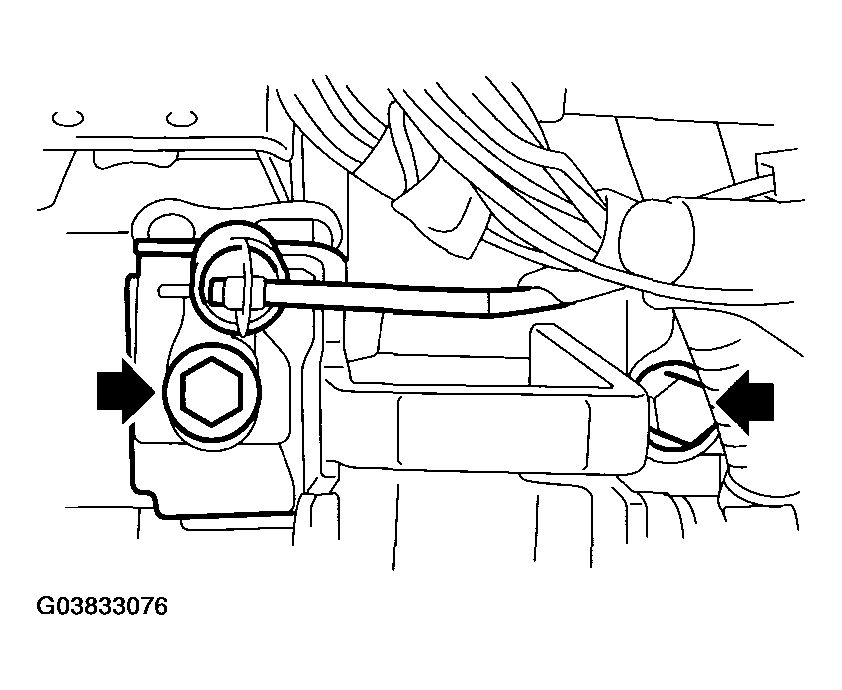

    Fig 2: Removing Bolts Under Instrument Panel Securing Steering Column
    G03833076Courtesy of SUBARU OF AMERICA, INC.
  7. Pull out the steering shaft assembly from the hole on toe board.
CAUTION:
  • Be sure to remove the universal joint before removing steering shaft assembly installing bolts when removing steering shaft assembly or when lowering it for servicing of other parts.
  • Do not loosen the tilt lever when the steering column is not secured to the vehicle.
