Steering Wheel: Removal

  1. Disconnect the ground cable from battery.
  2. Set the tire to the straight-ahead position.
  3. Remove the airbag module. < Ref. to REMOVAL , Driver's Airbag Module. >
    WARNING: Before performing airbag module service always refer to CAUTION , General Description. >
  4. Place alignment marks on the steering wheel and steering shaft.

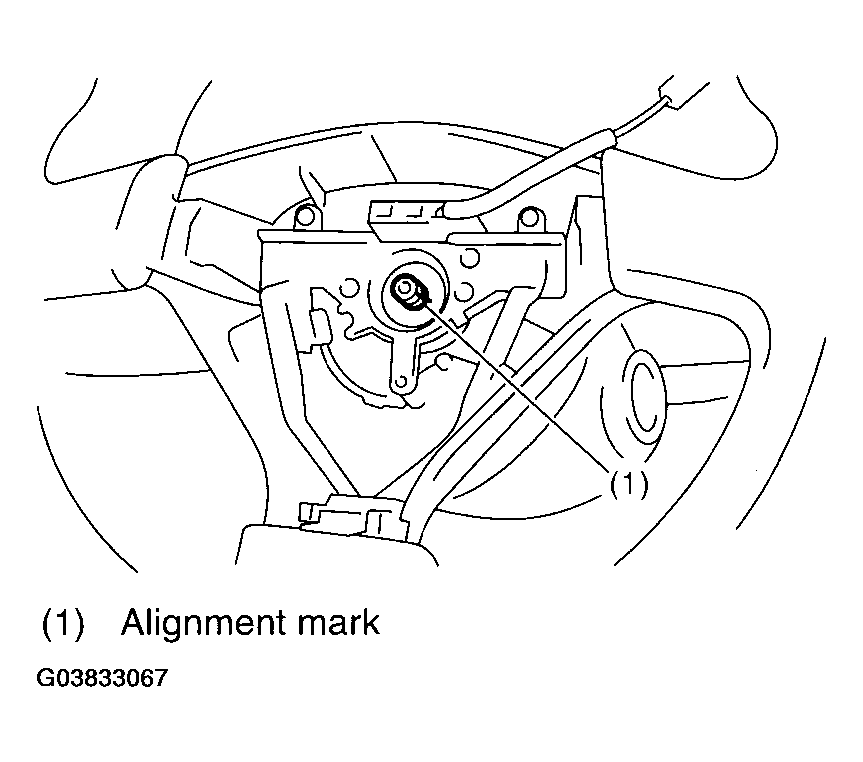

    Fig 1: Identifying Steering Wheel Alignment Marks
    G03833067Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the steering wheel nut, and then draw out the steering wheel from shaft using steering puller.
