Universal Joint: Removal

  1. Remove the steering wheel. < Ref. to , REMOVAL , Steering Wheel. >
  2. Place alignment marks on universal joint.
  3. Remove the universal joint bolts and then remove the universal joint.

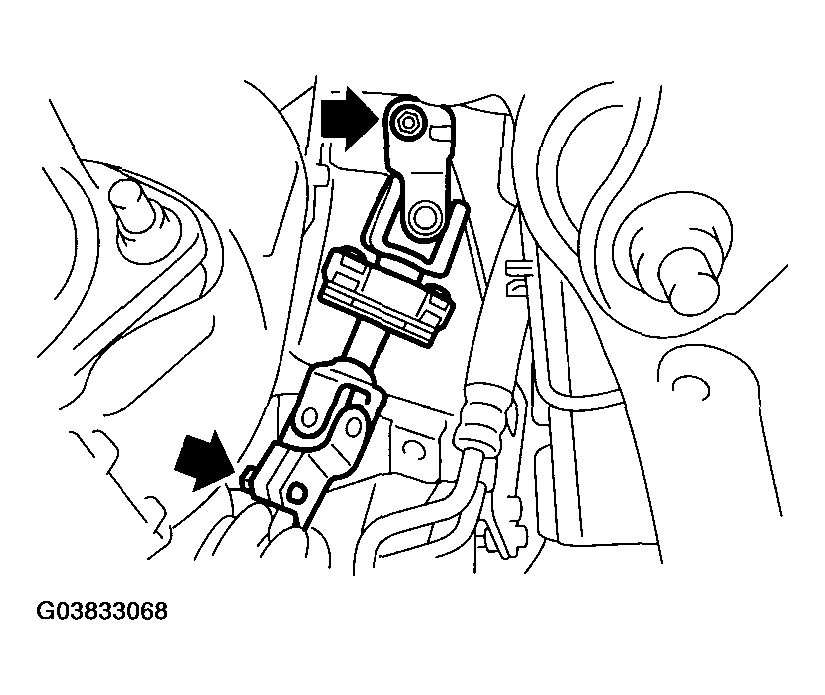

Fig 1: Removing Universal Joint
G03833068Courtesy of SUBARU OF AMERICA, INC.
