Steering Gearbox: Installation

1. Insert the gearbox into crossmember, being careful not to damage gearbox boot.
2. Install the gearbox and bracket. Tighten the bolt temporarily.
   Fig 1: Installing Gearbox And Bracket

   Courtesy of SUBARU OF AMERICA, INC.
3. Tighten the gearbox to the crossmember bracket via clamp with bolt temporarily.
   Fig 2: Tightening Gearbox To Crossmember Bracket Via Clamp

   Courtesy of SUBARU OF AMERICA, INC.
4. Tighten the bolts which temporary tightening the clamp and bracket of gearbox to specified torque.

   Tightening torque:

   60 N.m (6.1 kgf-m, 44.1 ft-lb)

5. Connect the pipe D to return hose first, and the pipe C to pressure hose second.

   Tightening torque:

   15 N.m (1.5 kgf-m, 10.8 ft-lb)

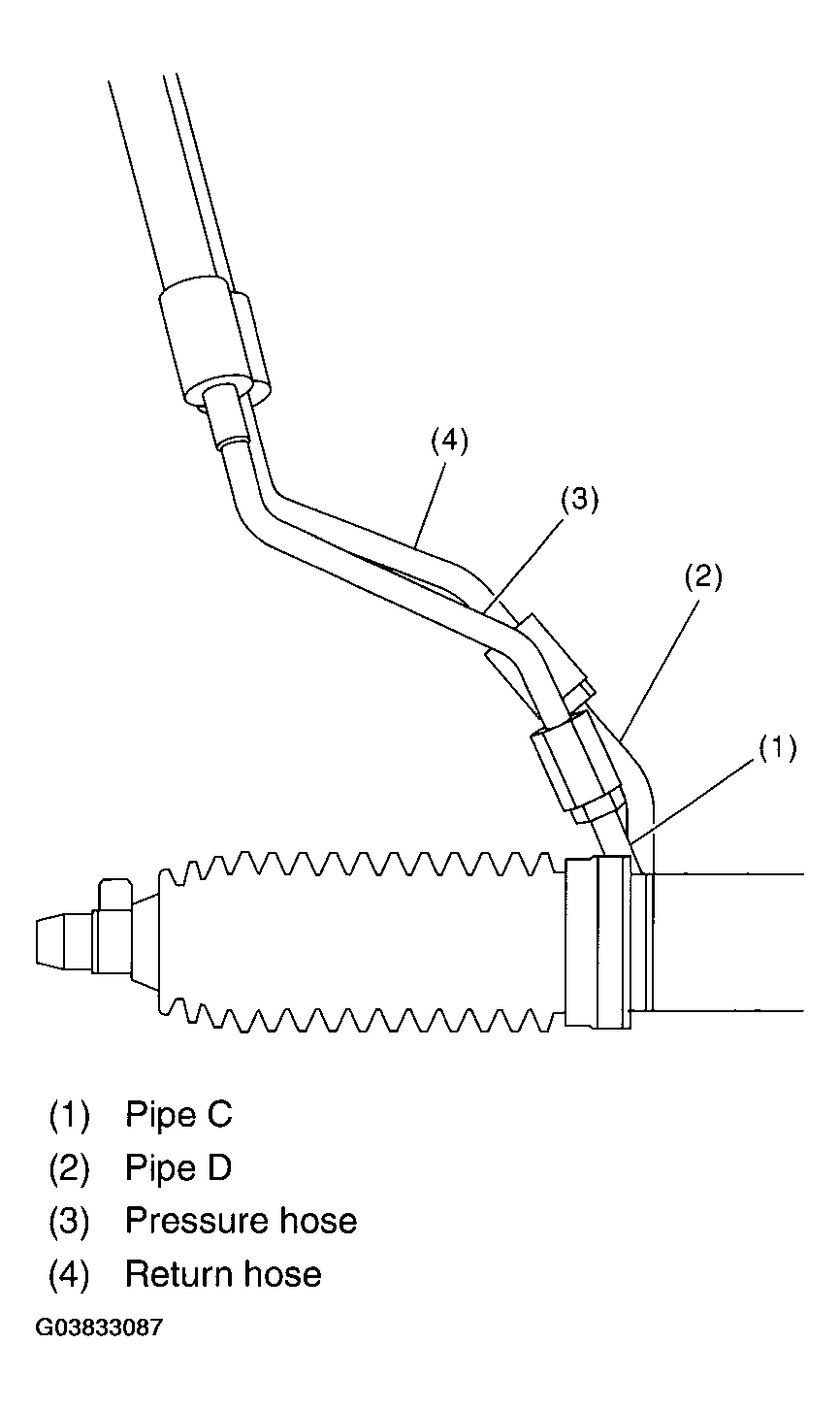

   Fig 3: Connecting Pipe D To Return Hose First

   Courtesy of SUBARU OF AMERICA, INC.
6. Install the universal joint. < Ref. to , INSTALLATION , Universal Joint. >
7. Connect the tie-rod end and knuckle arm, and tighten with castle nut.

   Castle nut tightening torque:

   27 N.m (2.75 kgf-m, 19.9 ft-lb)

   CAUTION: When connecting, do not hit cap at the bottom of tie-rod end with hammer.
8. After tightening the castle nut to specified tightening torque, tighten it further within 60° until cotter pin hole is aligned with slot in the nut. Fit the cotter pin into nut, and then bend the pin to lock.

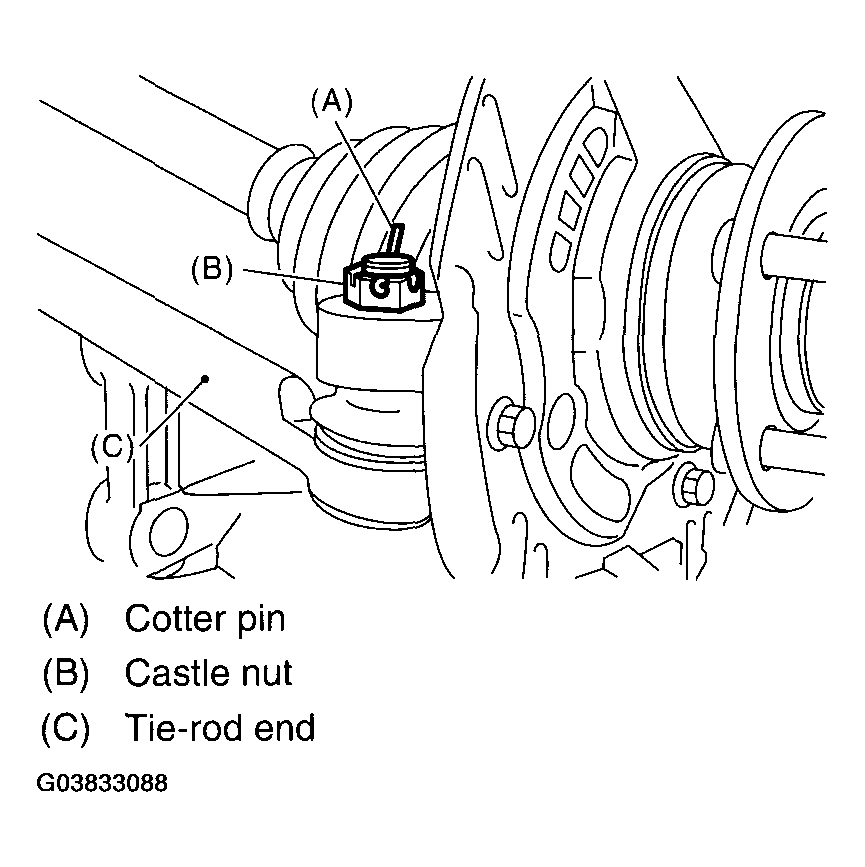

   Fig 4: Fitting Cotter Pin Into Nut

   Courtesy of SUBARU OF AMERICA, INC.
9. Install the front stabilizer. < Ref. to INSTALLATION , Front Stabilizer. >
10. Install the front crossmember support plate and jack-up plate.
11. Install the front exhaust pipe assembly. (Non-turbo model) < Ref. to INSTALLATION , Front Exhaust Pipe. >
12. Install the under cover. < Ref. to INSTALLATION , Front Under Cover. >
13. Install the front wheels.
14. Tighten the wheel nuts to specified torque.

    Tightening torque:

    90 N.m (9.1 kgf-m, 65.8 ft-lb)

15. Lower the vehicle.
16. Remove the steering wheel. < Ref. to , REMOVAL , Steering Wheel. >
17. Align the center of roll connector. < Ref. to ADJUSTMENT , Roll Connector. >
18. Install the steering wheel. < Ref. to , INSTALLATION , Steering Wheel. >
19. Connect the battery ground cable to battery.
20. Pour fluid into the oil tank, and bleed air. < Ref. to , POWER STEERING FLUID . >
21. Check for fluid leaks.
22. Check the fluid level in oil tank.
23. After adjusting toe-in and steering angle, tighten the lock nut on tie-rod end.

Tightening torque:

85 N.m (8.7 kgf-m, 62.7 ft-lb)

Fig 5: Adjusting Toe-In

Courtesy of SUBARU OF AMERICA, INC.
