Universal Joint: Installation

Align the cutout at serrated section of the column shaft and yoke, then install the universal joint into column shaft.

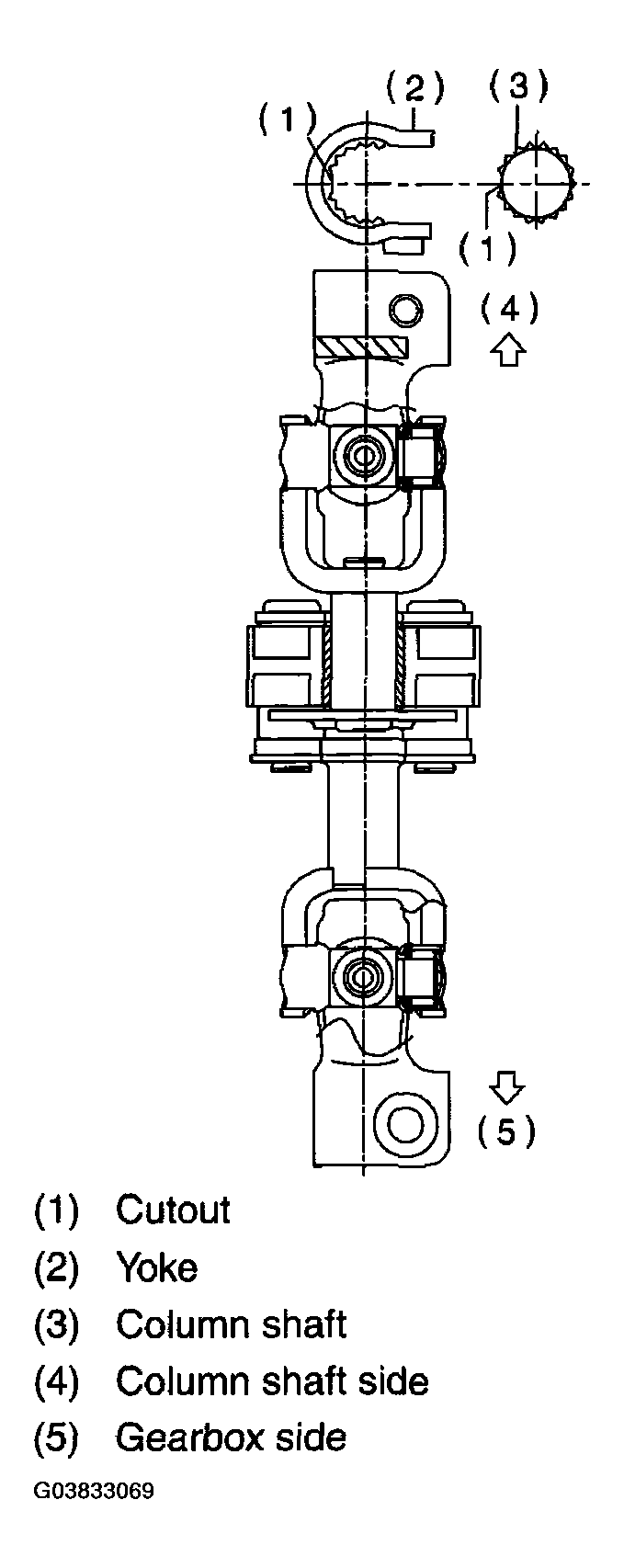

Fig 1: Aligning Cutout At Serrated Section Of Column Shaft And Yoke
Courtesy of SUBARU OF AMERICA, INC.
Install the universal joint to the serrations of gearbox assembly by matching alignment marks.
Tighten the bolt.
Tightening torque:

24 N.m (2.4 kgf-m, 17.4 ft-lb)

CAUTION: Excessively large tightening torque of universal joint bolts may lead to heavy steering wheel operation.
Clearance between coupling of universal joint to turbo cover:
15 mm (0.59 in) or more
Align the center of roll connector. < Ref. to ADJUSTMENT , Roll Connector. >
Install the steering wheel. < Ref. to , INSTALLATION , Steering Wheel. >
