Tilt Steering Column: Removal

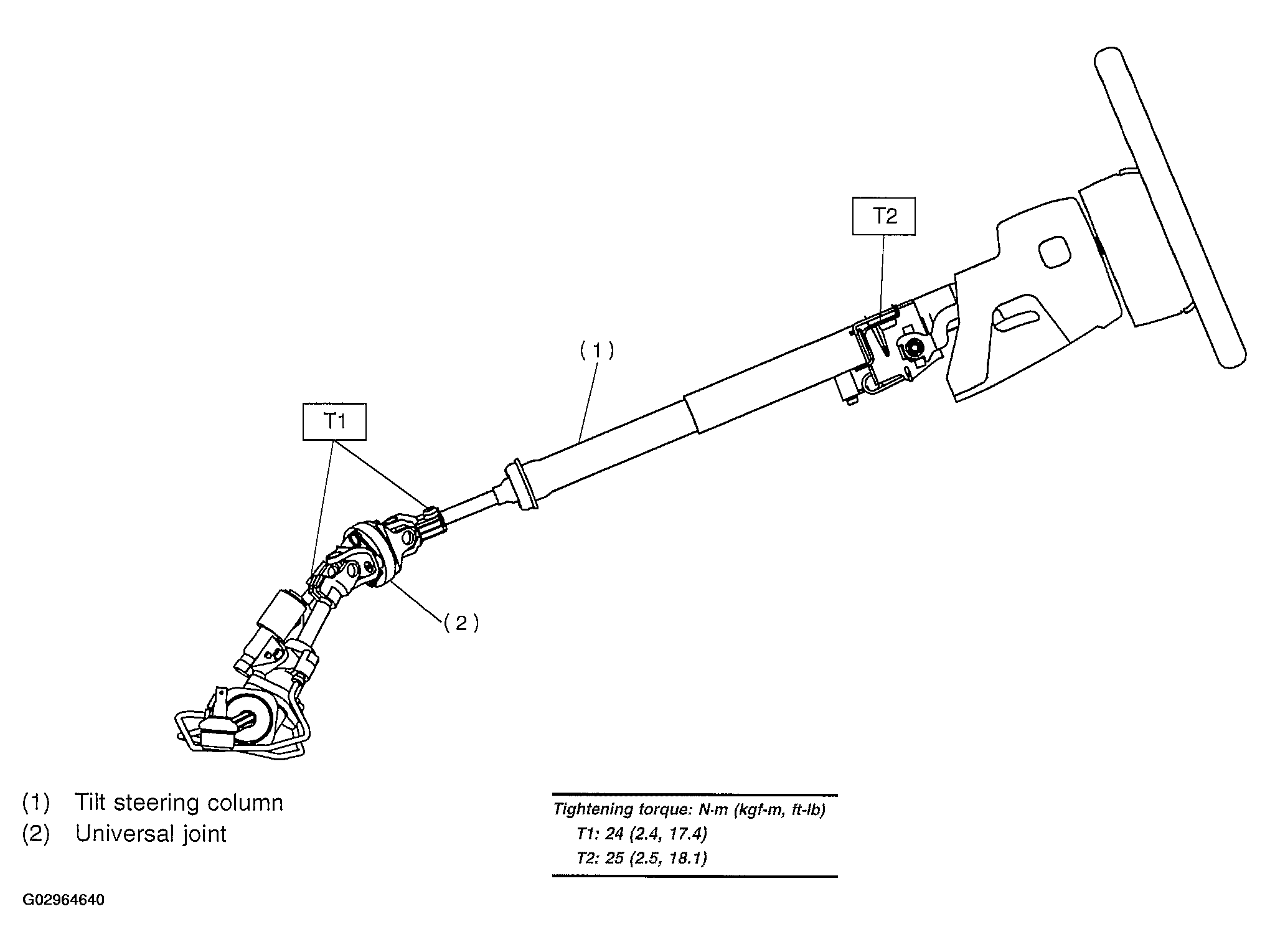

Fig 1: Identifying Tilt Steering Column Components
G02964640Courtesy of SUBARU OF AMERICA, INC.
  1. Set the vehicle on the lift.
  2. Disconnect battery ground cable.
  3. Remove airbag module. Refer to REMOVAL & INSTALLATION , Driver's Airbag Module.
    WARNING: Always refer to AIR BAG RESTRAINT SYSTEMS before performing airbag module service.
  4. Remove steering wheel. Refer to REMOVAL  , Steering Wheel.
  5. Remove universal joint. Refer to REMOVAL  , Universal Joint.
  6. Remove trim panel under instrument panel.
  7. Remove the screw securing lower steering column cover.

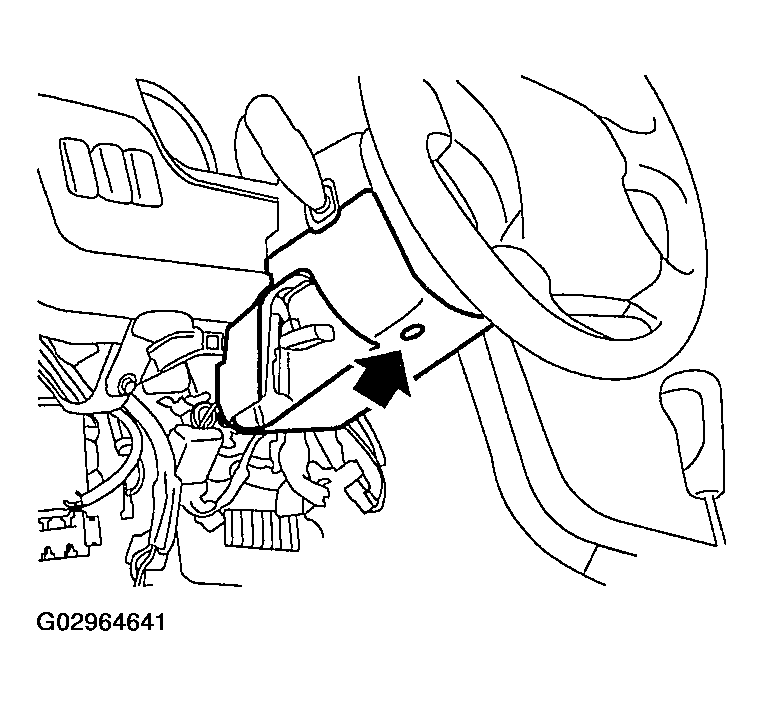

    Fig 2: Removing Screw Securing Lower Steering Column Cover
    G02964641Courtesy of SUBARU OF AMERICA, INC.
  8. Remove all connectors from steering column.
  9. Remove the two bolts under instrument panel securing steering column.

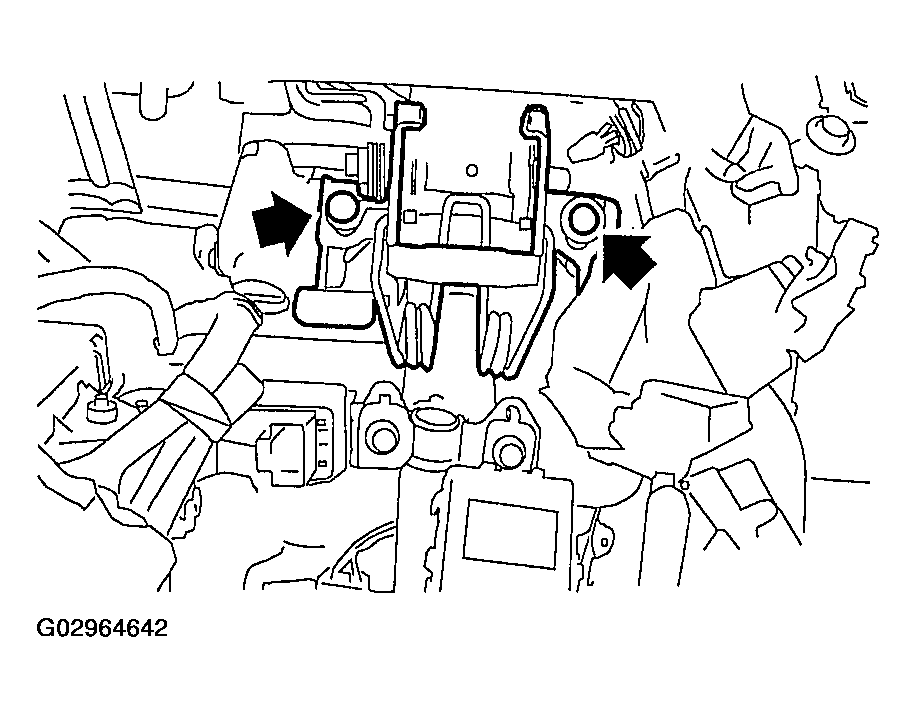

    Fig 3: Removing Bolts Under Instrument Panel Securing Steering Column
    G02964642Courtesy of SUBARU OF AMERICA, INC.
  10. Pull out steering shaft assembly from hole on toe board.
    CAUTION: Be sure to remove universal joint before removing steering shaft assembly installing bolts when removing steering shaft assembly or when lowering it for servicing of other parts.
