Steering Wheel: Removal

  1. Disconnect ground cable from battery.
  2. Set tires to straight-ahead position.
  3. Remove airbag module. Refer to REMOVAL & INSTALLATION , Driver's Airbag Module.
    WARNING: Always refer to AIR BAG RESTRAINT SYSTEMS before performing airbag module service.
  4. Remove steering wheel nut, and then draw out steering wheel from shaft using steering puller.
NOTE: Make matching marks on steering wheel and steering column in advance.

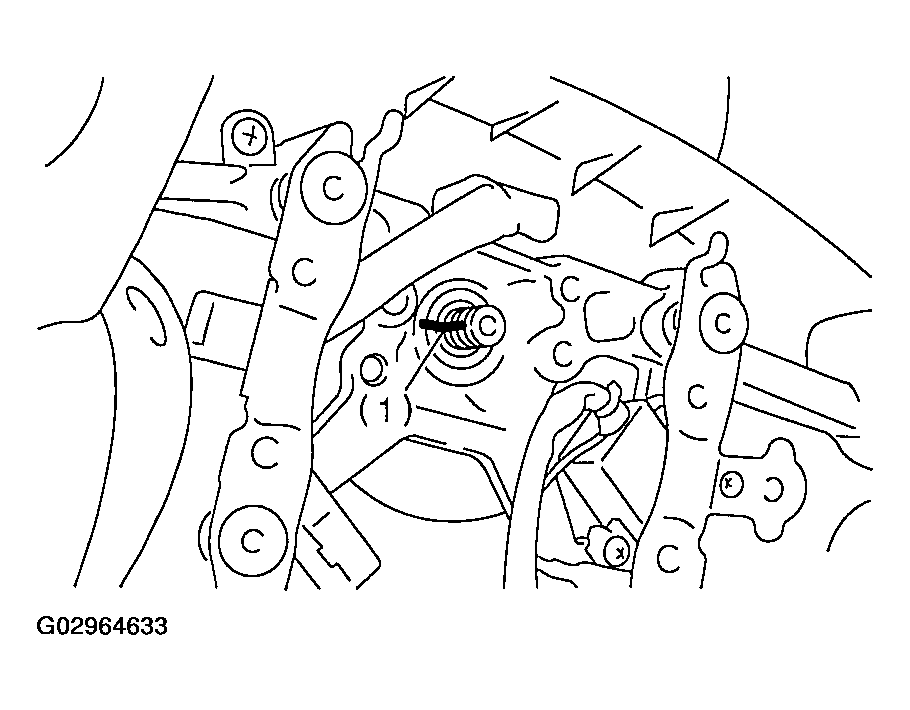

Fig 1: Identifying Matching Marks
G02964633Courtesy of SUBARU OF AMERICA, INC.
