Universal Joint: Removal

  1. Remove the steering wheel. Refer to REMOVAL  , Steering Wheel.
  2. Remove universal joint bolts and then remove universal joint.
CAUTION: Scribe alignment marks on universal joint so that it can be reassembled at the original serration.

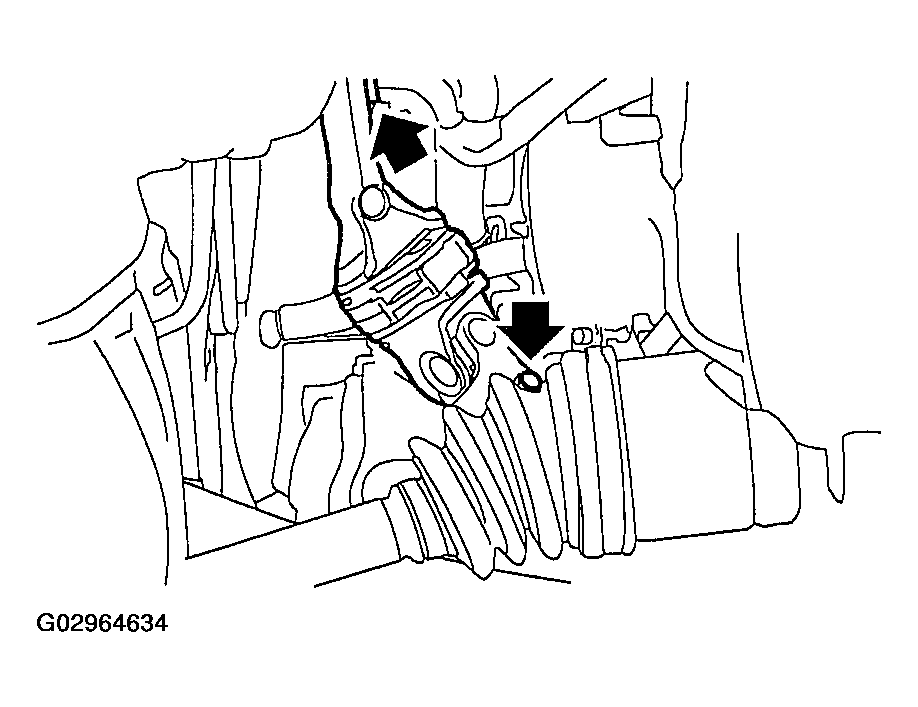

Fig 1: Removing Universal Joint Bolts
G02964634Courtesy of SUBARU OF AMERICA, INC.
