Instrument Panel Assembly: Removal

WARNING: This page is about a different car, the 2004 Subaru Outback, 2004 Subaru Legacy, and 2004 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.

Airbag system wiring harness is routed near the combination meter.

WARNING:
  • All airbag system wiring harness and connectors are colored yellow. Do not use electrical test equipment on these circuits.
  • Be careful not to damage airbag system harness when servicing the instrument panel.
  1. Disconnect ground cable from battery.
  2. Remove lower cover.

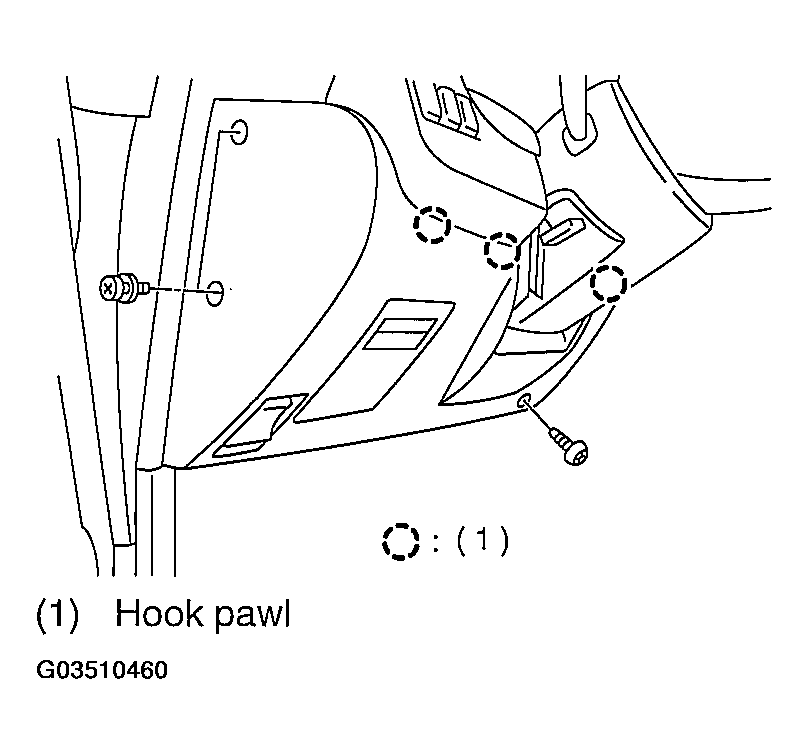

    Fig 1: Removing Lower Cover
    G03510460Courtesy of SUBARU OF AMERICA, INC.
  3. Remove lower column cover and disconnect harness connectors to steering column.

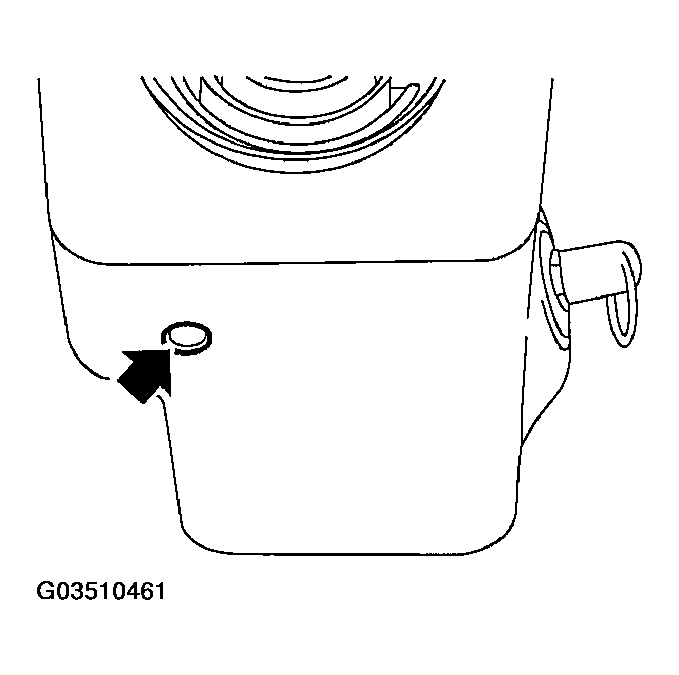

    Fig 2: Disconnecting Harness Connectors To Steering Column
    G03510461Courtesy of SUBARU OF AMERICA, INC.
  4. Remove steering column assembly (with steering wheel). Refer to REMOVAL , Tilt Steering Column.
  5. Remove stopper (A) then remove glove box.

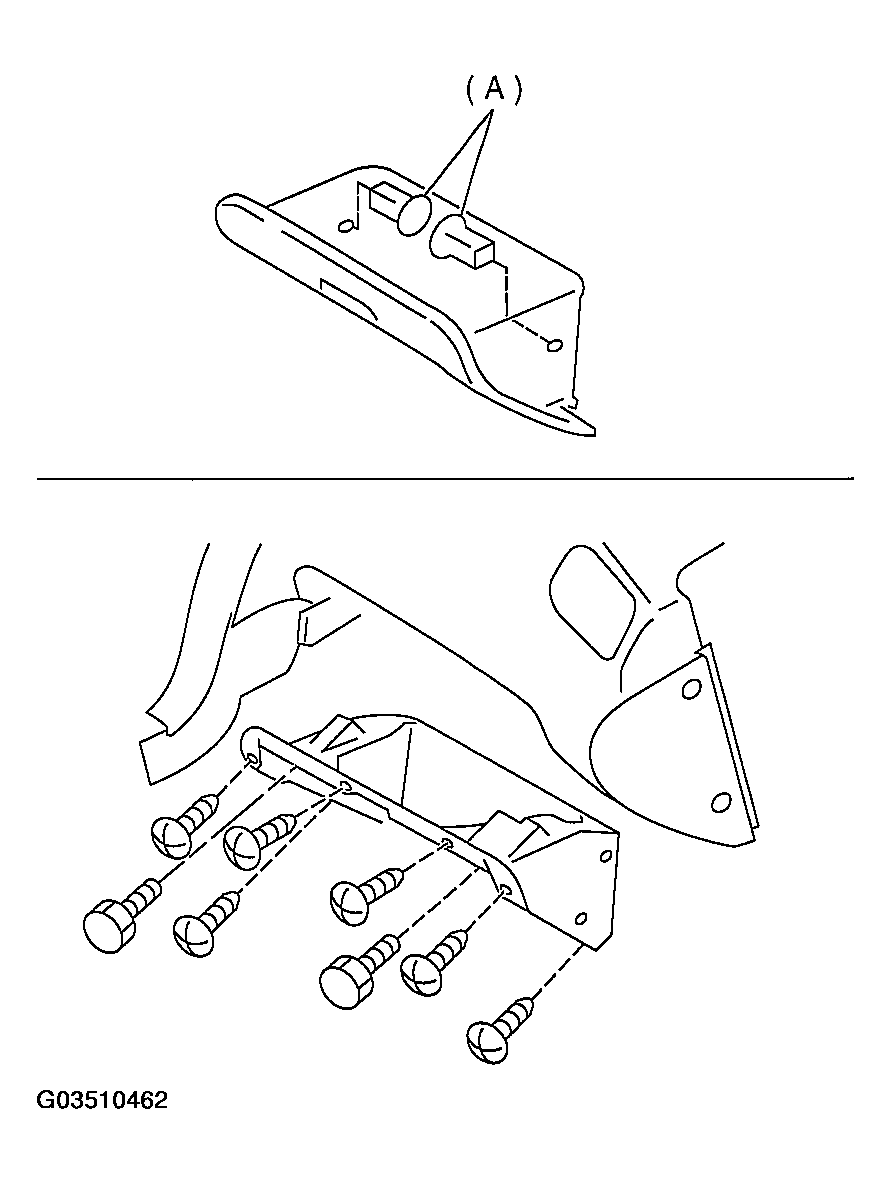

    Fig 3: Removing Stopper
    G03510462Courtesy of SUBARU OF AMERICA, INC.
  6. Remove side panel of both sides.

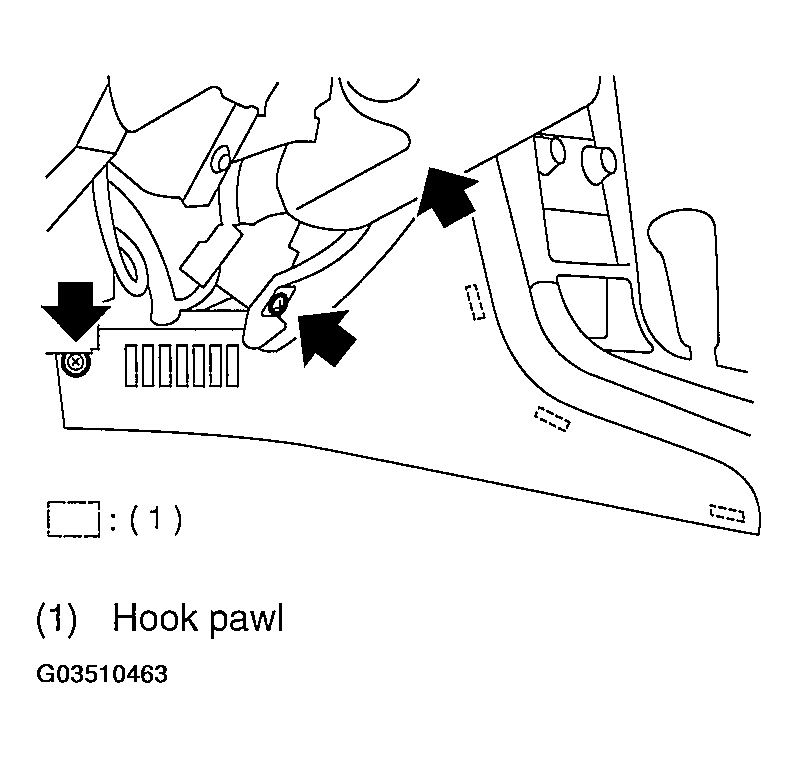

    Fig 4: Removing Side Panel Of Both Sides
    G03510463Courtesy of SUBARU OF AMERICA, INC.
  7. Remove passenger's airbag module. Refer to REMOVAL & INSTALLATION , Passenger's Airbag Module.
  8. Remove console box. Refer to REMOVAL , Console Box.
  9. Remove front pillar upper trim of both sides.

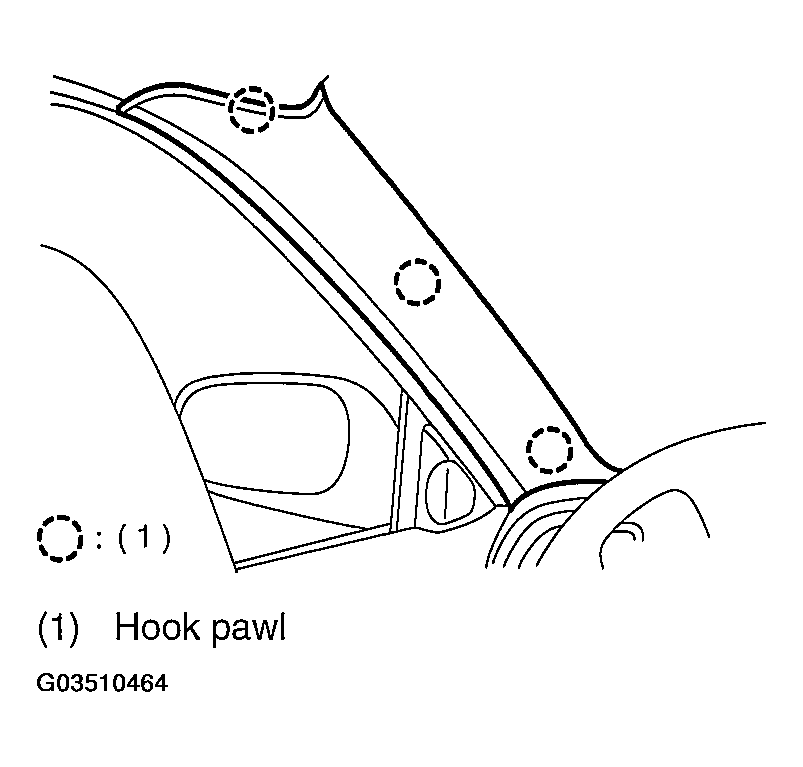

    Fig 5: Removing Front Pillar Upper Trim
    G03510464Courtesy of SUBARU OF AMERICA, INC.
  10. Remove front pillar lower trim (A) of passenger side.

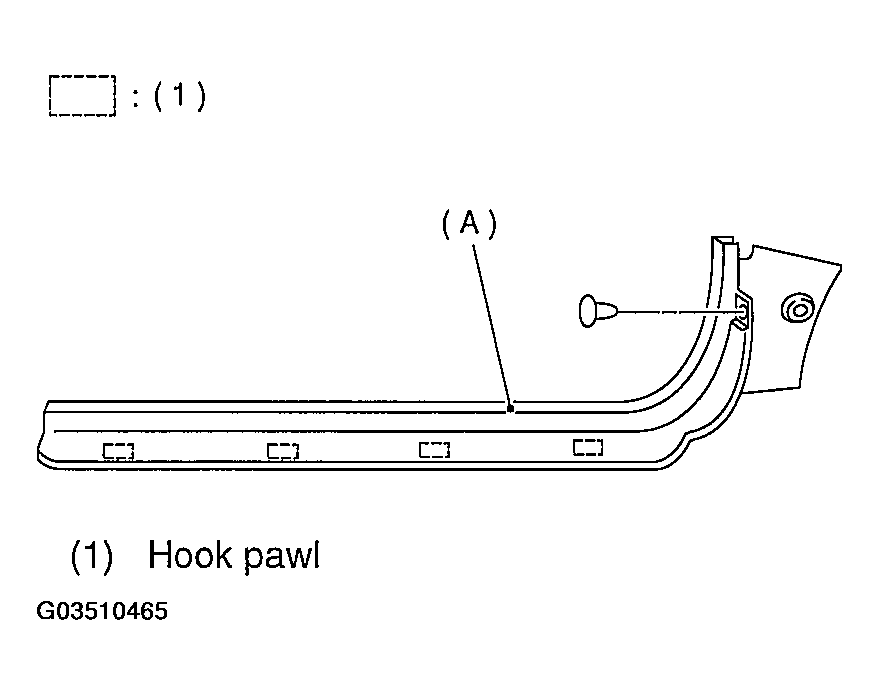

    Fig 6: Removing Front Pillar Lower Trim Of Passenger Side
    G03510465Courtesy of SUBARU OF AMERICA, INC.
  11. Set temperature control switch (A) to "FULL HOT" and then disconnect temperature control cable from bottom of heater unit. (Manual A/C equipped model)
    NOTE: Do not move the switch and link when installing.

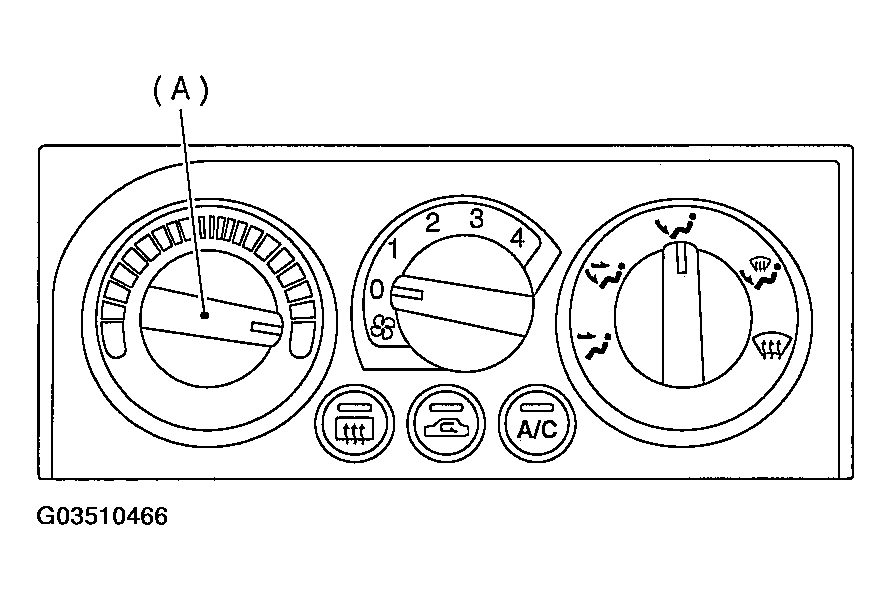

    Fig 7: Setting Temperature Control Switch
    G03510466Courtesy of SUBARU OF AMERICA, INC.
  12. Remove instrument panel mounting bolts.

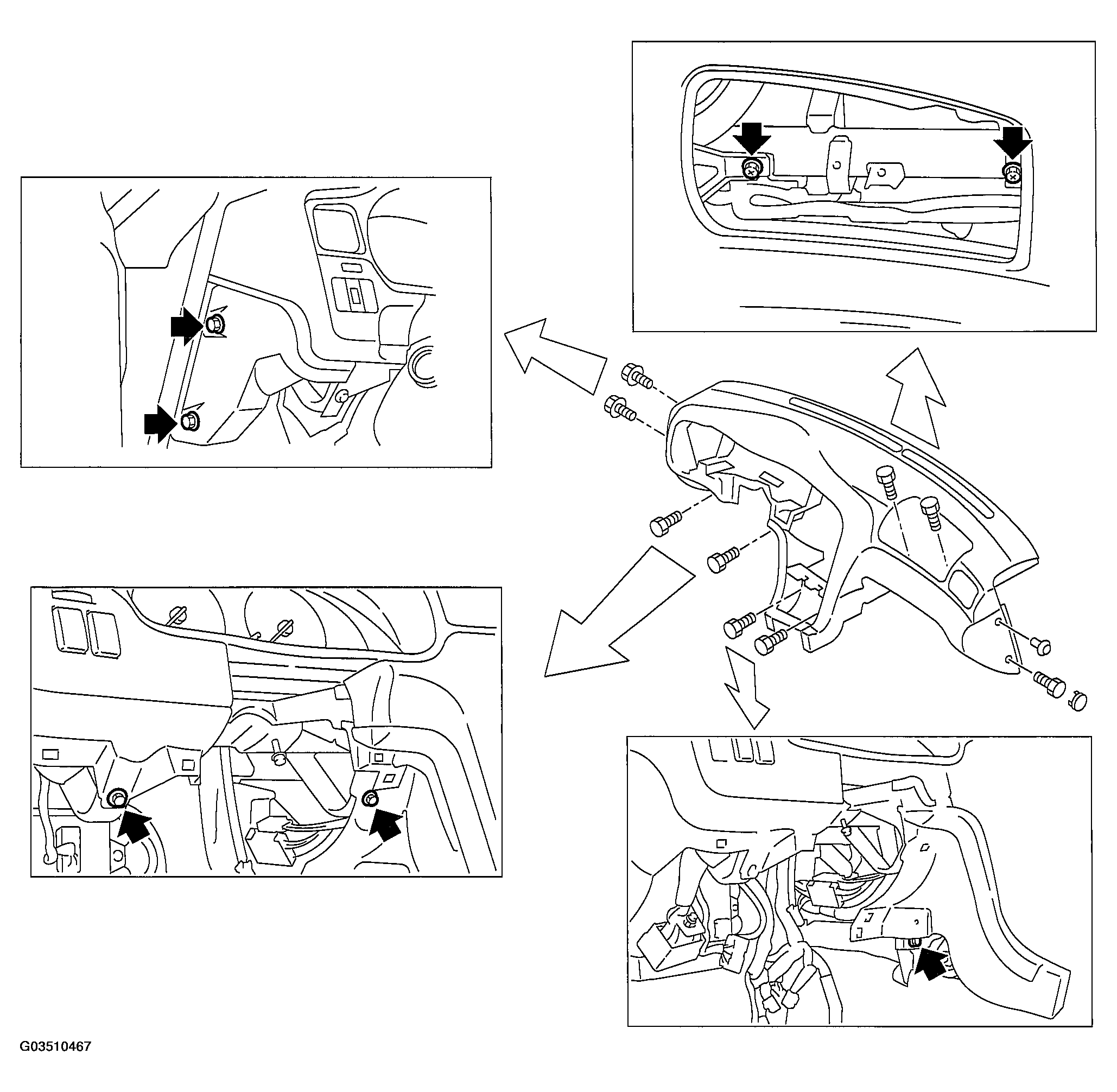

    Fig 8: Removing Instrument Panel Mounting Bolts
    G03510467Courtesy of SUBARU OF AMERICA, INC.
  13. Disconnect harness connectors and remove instrument panel ASSY carefully.
    CAUTION: Do not pull the harness when disconnecting the connector.
NOTE: If necessary, make matching marks for easy reassembly.

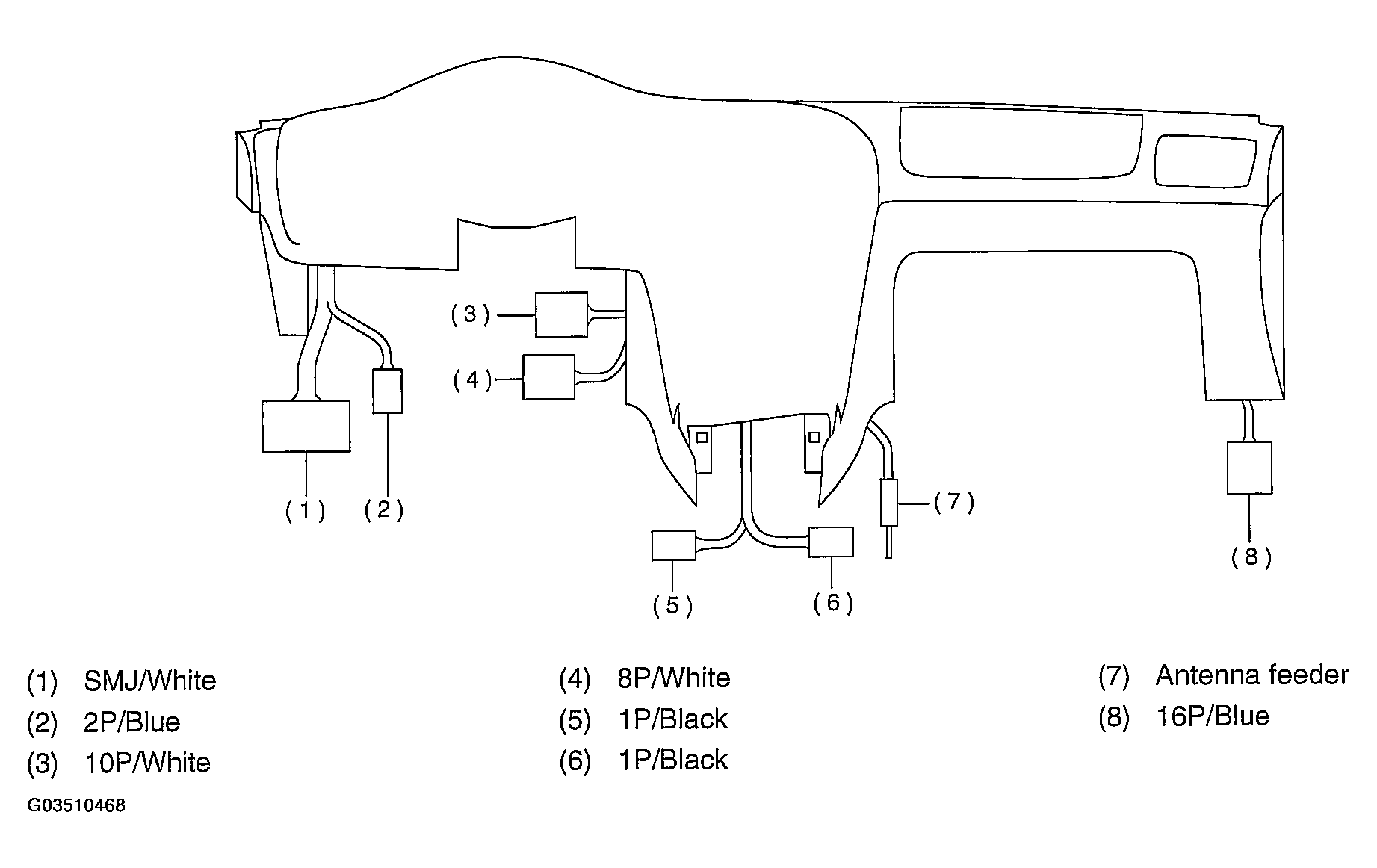

Fig 9: Disconnecting Harness Connectors
G03510468Courtesy of SUBARU OF AMERICA, INC.
CAUTION:
  • Take care not to scratch the instrument panel and related parts.
  • When storing the removed instrument panel, place it standing up on the floor.

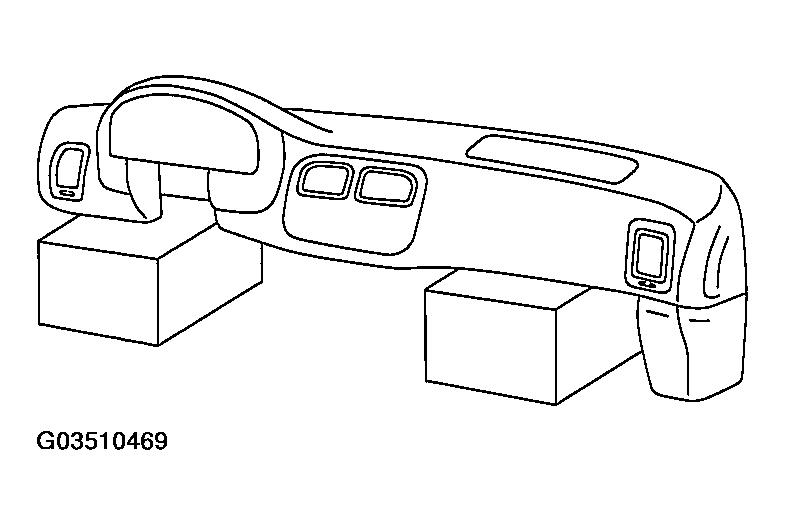

    Fig 10: Identifying Instrument Panel
    G03510469Courtesy of SUBARU OF AMERICA, INC.
