Tilt Steering Column: Removal

WARNING: This page is about a different car, the 2004 Subaru Outback, 2004 Subaru Legacy, and 2004 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.

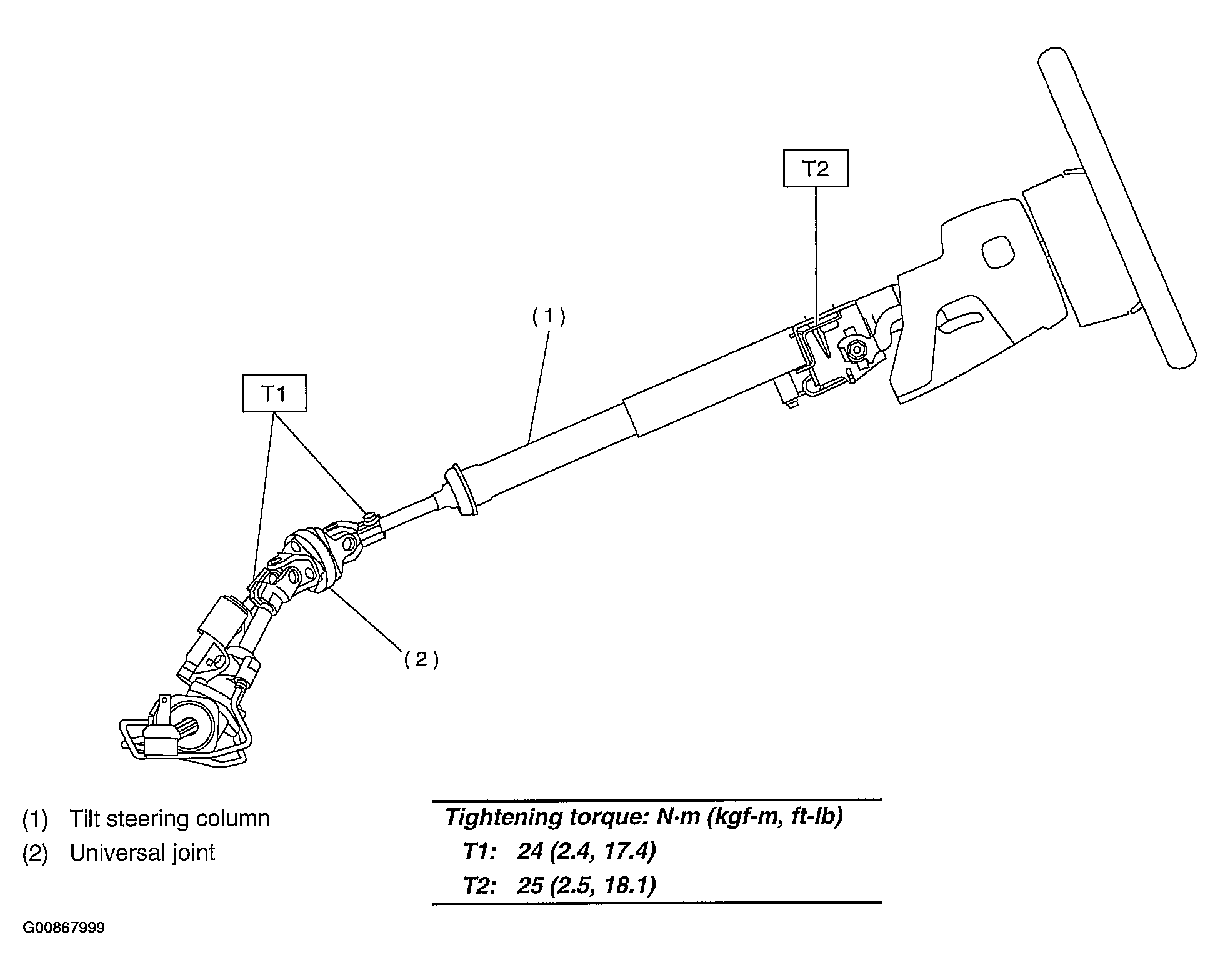

Fig 1: Identifying Tilt Steering Column Components
G00867999Courtesy of SUBARU OF AMERICA, INC.
  1. Set the vehicle on the lift.
  2. Disconnect battery minus ground cable.
  3. Remove airbag module. Refer to REMOVAL & INSTALLATION , Driver's Airbag Module.
    WARNING: Always refer to  AIR BAG RESTRAINT SYSTEMS  before performing airbag module service (if so equipped). .
  4. Remove steering wheel. Refer to REMOVAL , Steering Wheel.
  5. Lift-up the vehicle.
  6. Remove universal joint. Refer to REMOVAL , Universal Joint.
  7. Lower the vehicle.
  8. Remove trim panel under instrument panel.
  9. Remove the screw securing lower steering column cover.

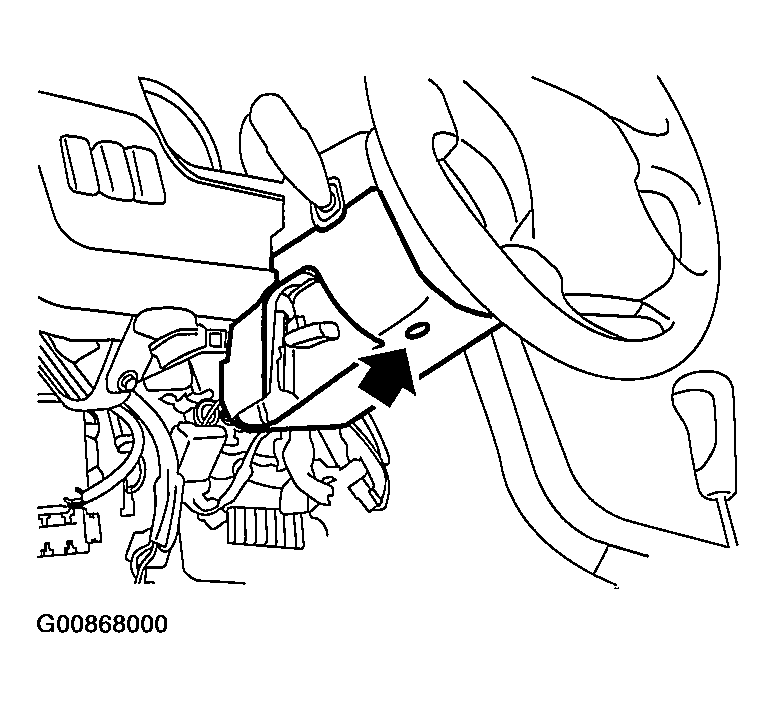

    Fig 2: Removing Screw Securing Lower Steering Column Cover
    G00868000Courtesy of SUBARU OF AMERICA, INC.
  10. Remove all connectors from steering column.
  11. Remove the two bolts under instrument panel securing steering column.

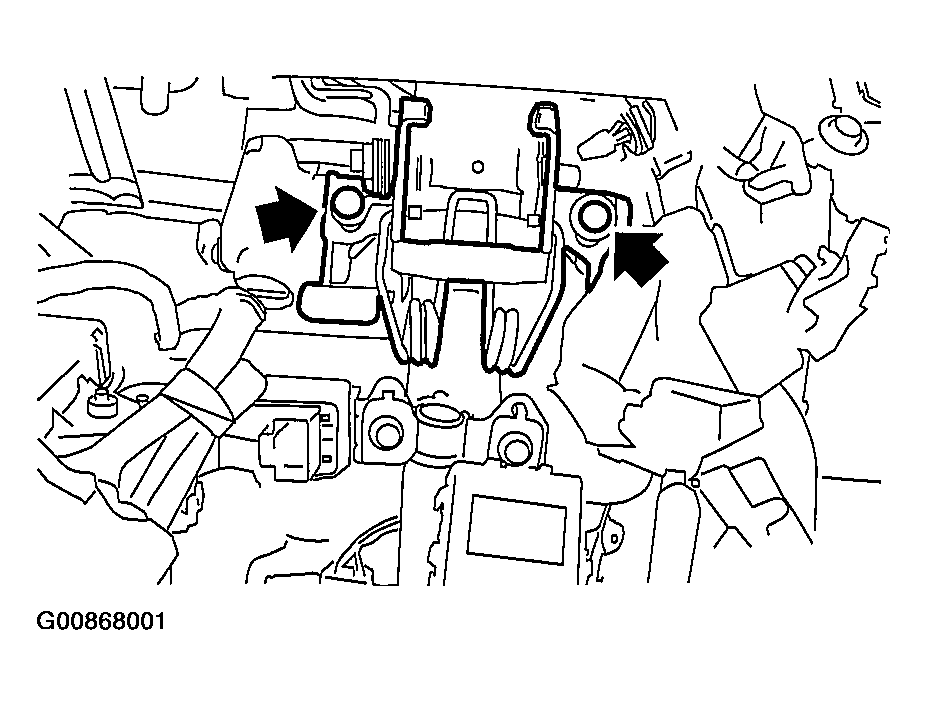

    Fig 3: Removing Bolts Under Instrument Panel Securing Steering Column
    G00868001Courtesy of SUBARU OF AMERICA, INC.
  12. Pull out steering shaft assembly from hole on toe board.
CAUTION: Be sure to remove universal joint before removing steering shaft assembly installing bolts when removing steering shaft assembly or when lowering it for servicing of other parts.
