Console Box: Removal

WARNING: This page is about a different car, the 2004 Subaru Outback, 2004 Subaru Legacy, and 2004 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.

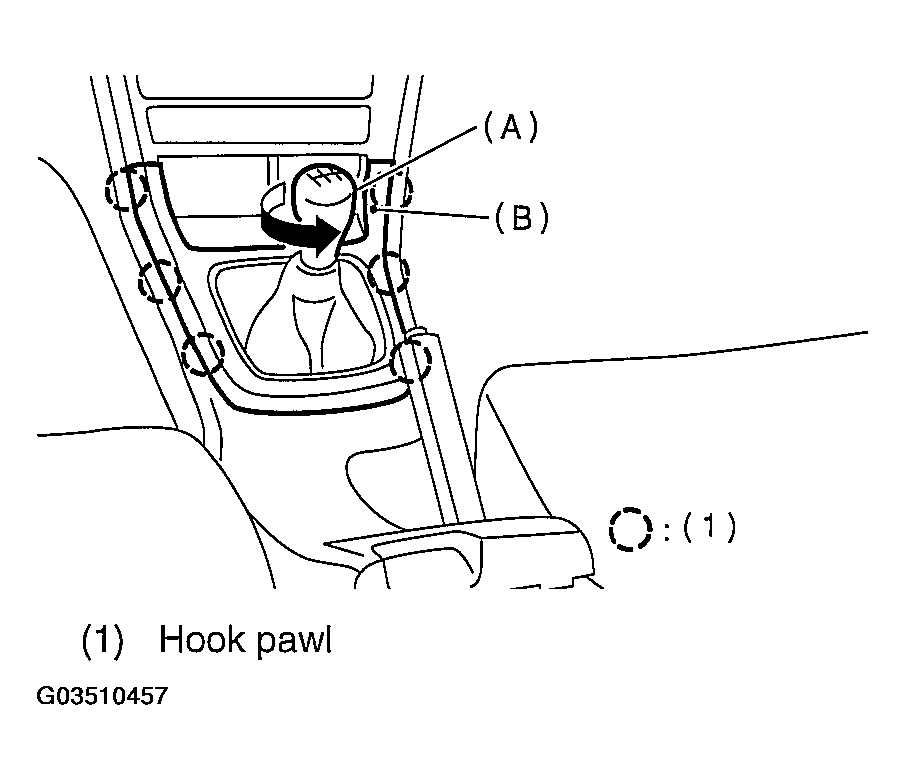

Remove shift knob (A) (MT model) and front cover (B).

Fig 1: Removing Shift Knob
Courtesy of SUBARU OF AMERICA, INC.

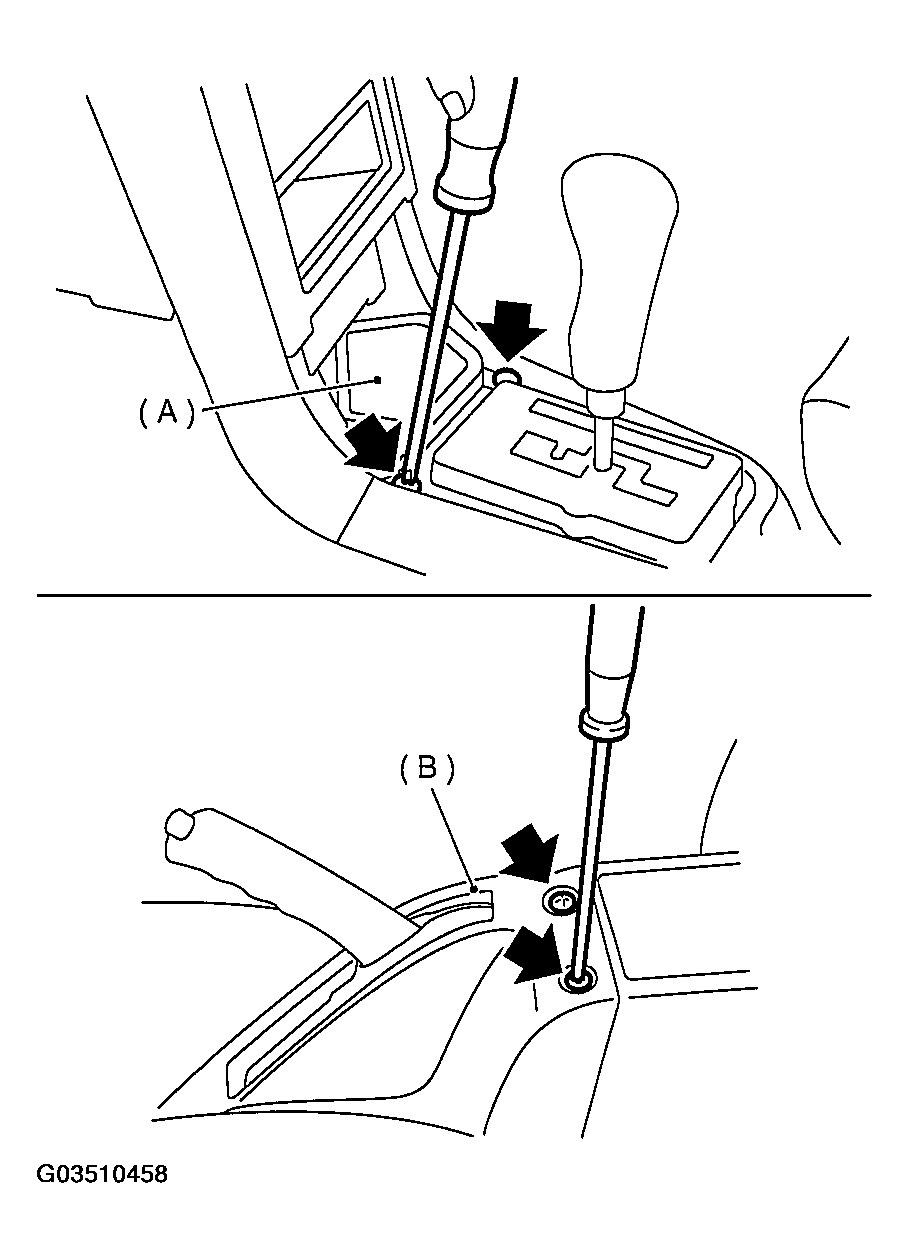

Remove tray (A) and console cover (B).

Fig 2: Removing Tray & Console Cover
Courtesy of SUBARU OF AMERICA, INC.

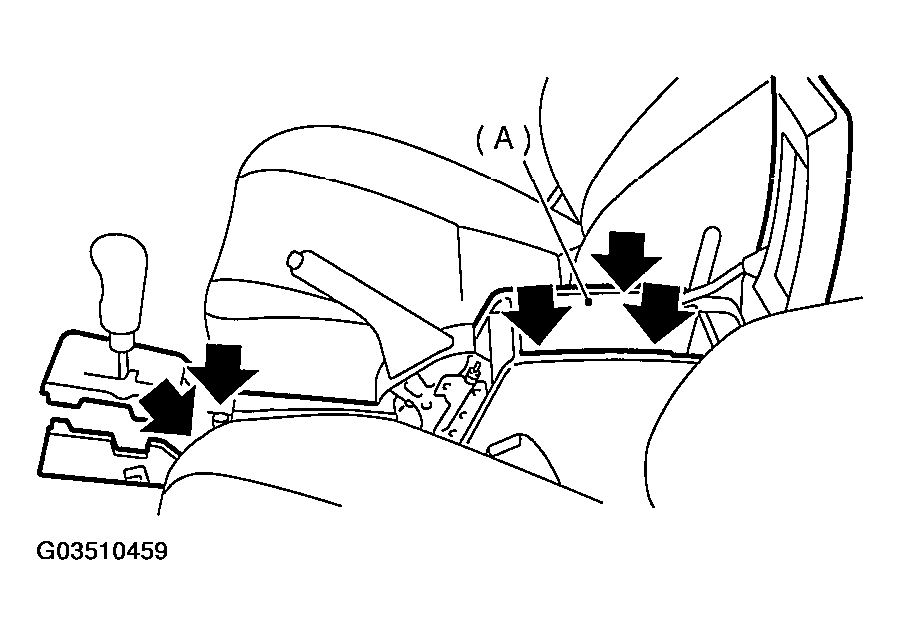

Remove console box (A).

Fig 3: Removing Console Box
Courtesy of SUBARU OF AMERICA, INC.
