Clutch Pedal: Removal

WARNING: This page is about a different car, the 2004 Subaru Outback, 2004 Subaru Legacy, and 2004 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the steering column. Refer to REMOVAL , Tilt Steering Column.
  2. Disconnect the connectors from stop light and clutch switches.
  3. Remove the snap pins which secure lever to push rod and operating rod.
  4. Remove the clevis pins which secure lever to push rod and operating rod.

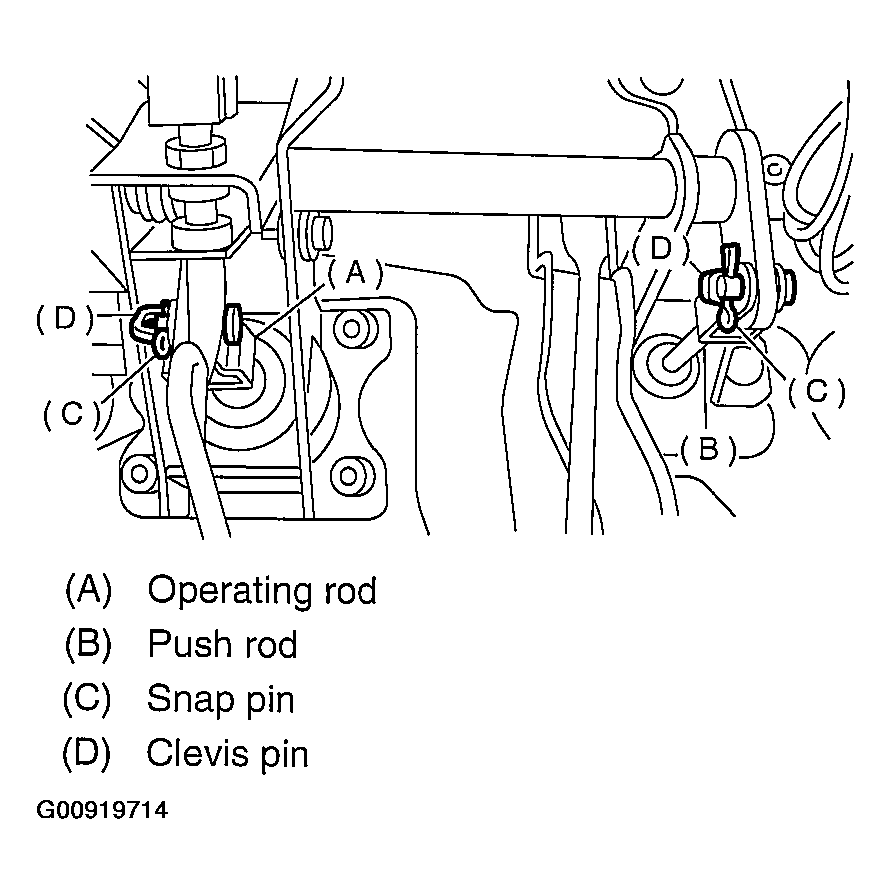

    Fig 1: Removing Clevis Pins Which Secure Lever To Push Rod & Operating Rod
    G00919714Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the accelerator pedal. .
  6. Remove the air intake chamber and air intake duct. (U5 model) Refer to REMOVAL , Air Intake Chamber and REMOVAL , Air Intake Duct.
  7. Remove the air cleaner case and intake duct. (Except U5 model) Refer to REMOVAL , Air Cleaner Case and REMOVAL , Air Intake Duct.
  8. Remove the intercooler. (TURBO model) Refer to REMOVAL , Intercooler.
  9. Remove the nut which secures clutch master cylinder.

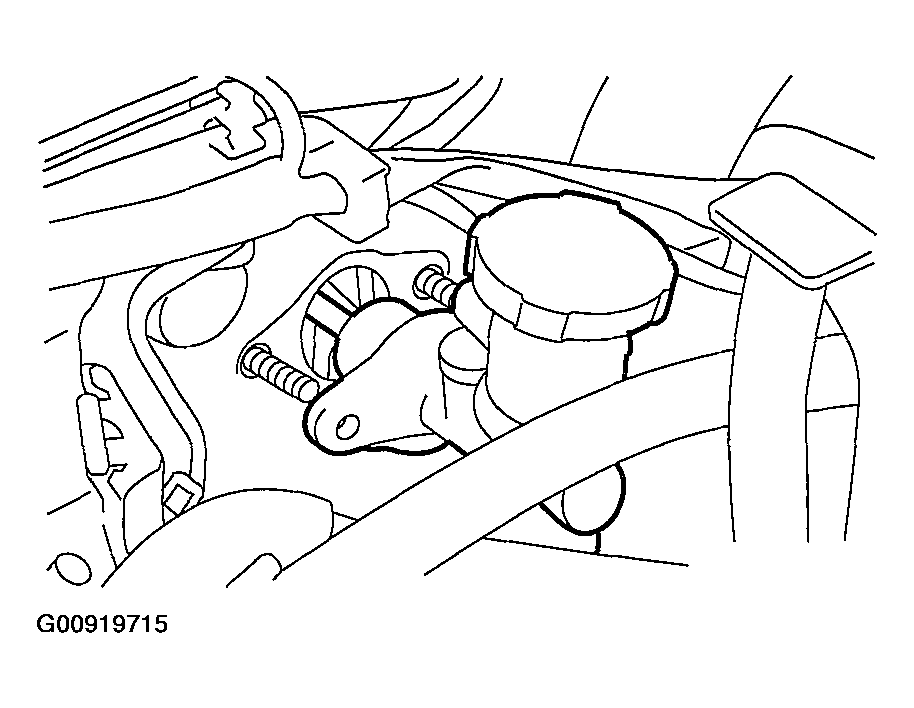

    Fig 2: Removing Nut Which Secures Clutch Master Cylinder
    G00919715Courtesy of SUBARU OF AMERICA, INC.
  10. Remove the bolts and nuts which secure brake and clutch pedals, and remove the pedal assembly.
