Section 177 (Intake (Induction) (H4DOTC)): Intercooler: Removal

WARNING: This page is about a different car, the 2004 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect PCV hose from PCV pipe.

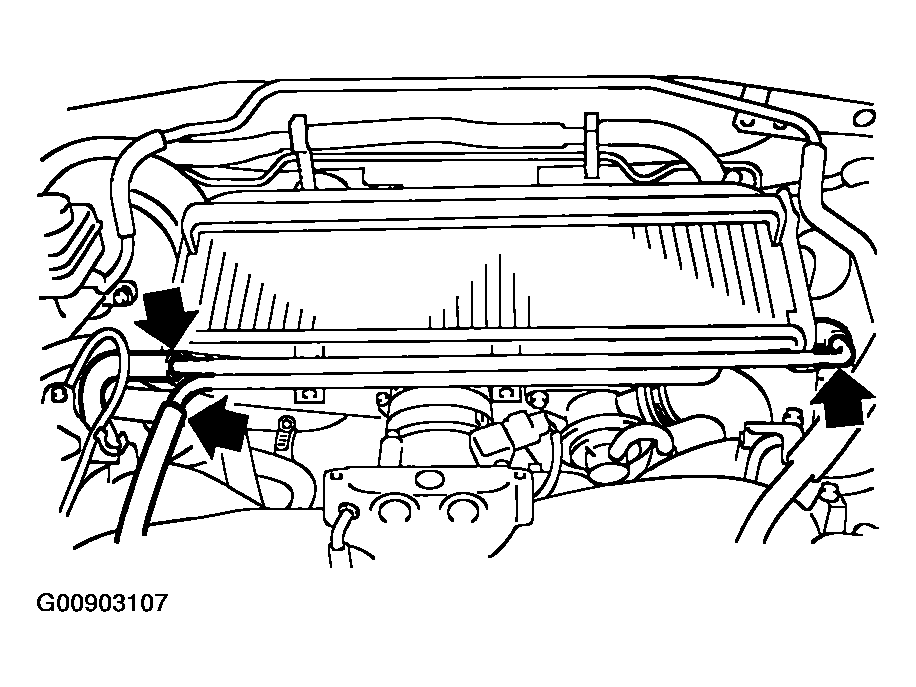

Fig 1: Disconnecting PCV Hose From PCV Pipe
Courtesy of SUBARU OF AMERICA, INC.
Remove PCV pipe from intercooler.

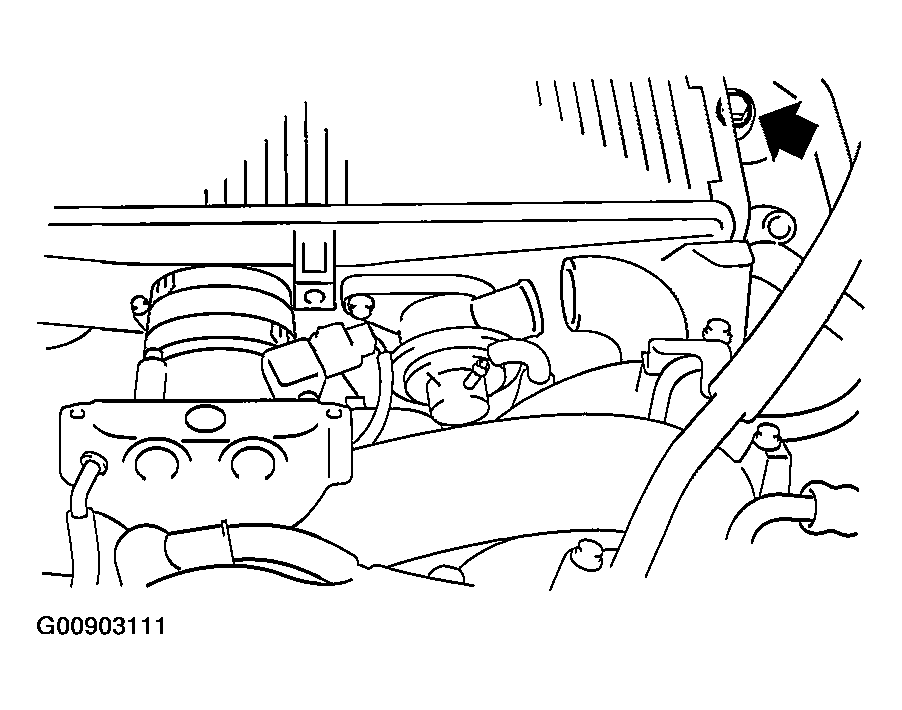

Fig 2: Removing PCV Pipe From Intercooler
Courtesy of SUBARU OF AMERICA, INC.
Disconnect hose from air bypass valve.

Fig 3: Disconnecting Hose From Air Bypass Valve
Courtesy of SUBARU OF AMERICA, INC.
Remove bolt which secure intercooler to bracket.

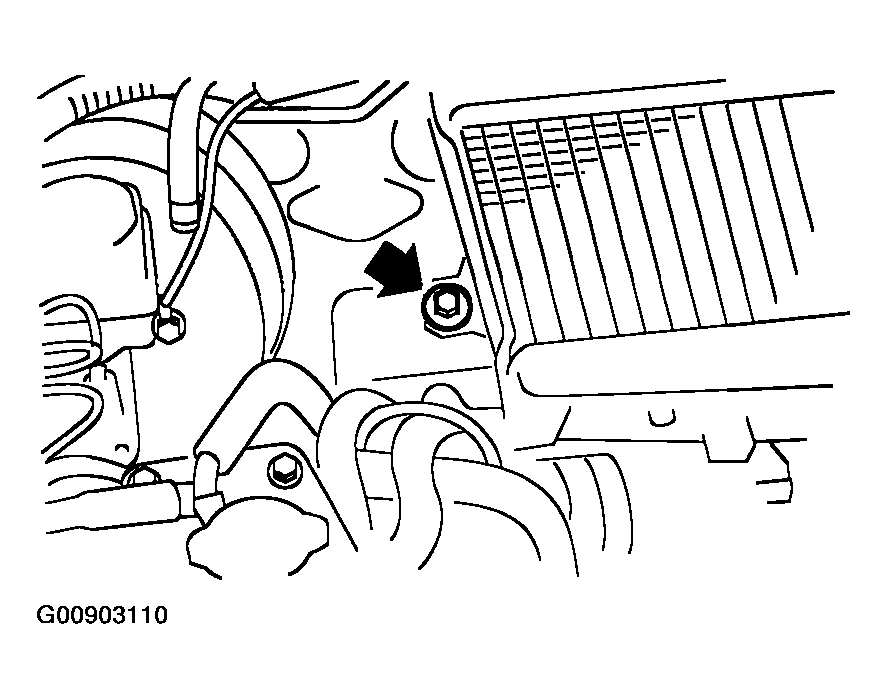

Fig 4: Removing Bolt Which Secure Intercooler To Bracket (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

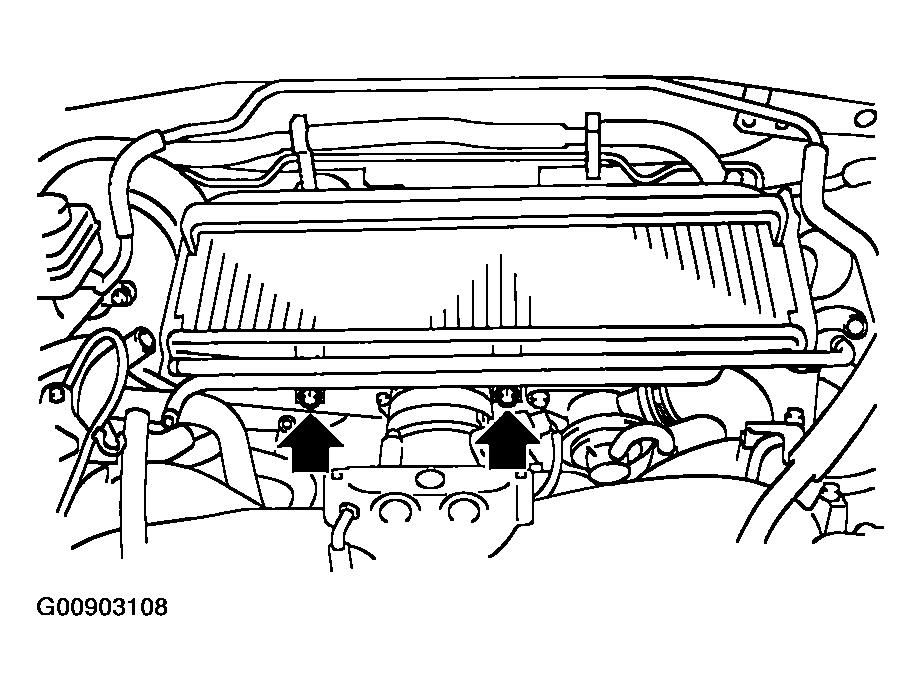

Fig 5: Removing Bolt Which Secure Intercooler To Bracket (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

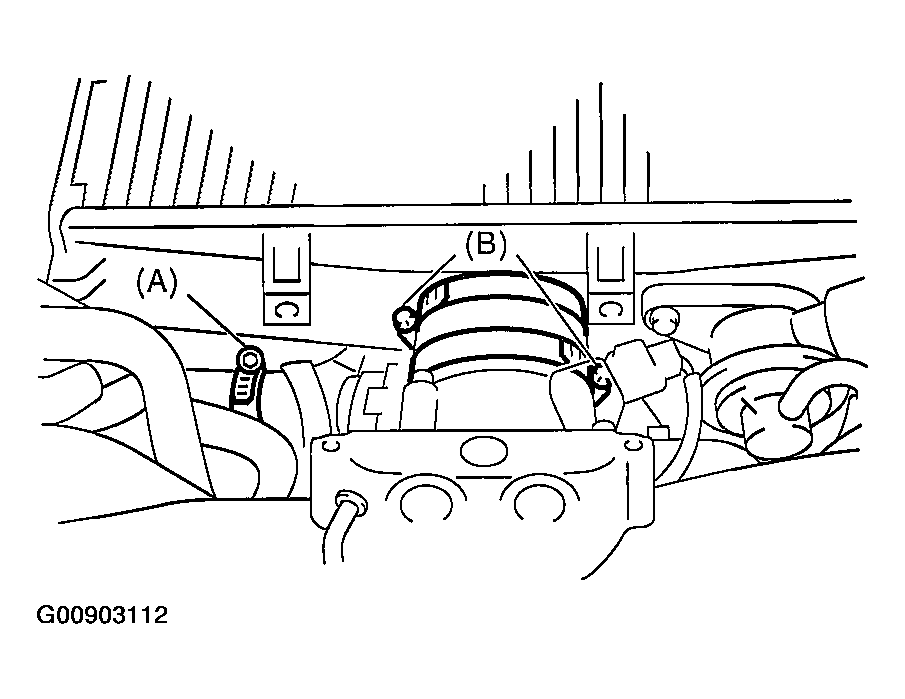

Loosen clamp (A) which connects turbocharger and intercooler duct.
Loosen clamp (B) which connects throttle body and intercooler.

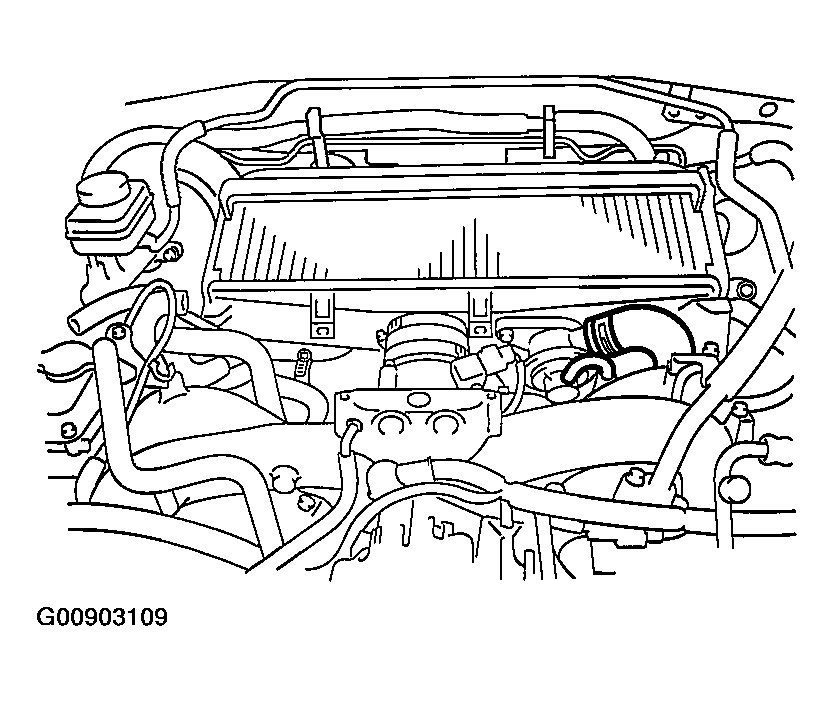

Fig 6: Removing Intercooler From Throttle Body
Courtesy of SUBARU OF AMERICA, INC.
Disconnect intercooler duct from turbocharger.
Remove intercooler from throttle body.
