Inspection Procedure

1. Connect a Techstream to the DLC3.
2. Turn the ignition switch ON.
3. Turn the tester on.
4. Enter the following menus: Body Electrical / Main Body / Data List.
5. According to the display on tester, read on the "Data List".

   Main Body

   DATA LIST - MAIN BODY



   Tester Display	Measurement Item/Range	Normal Condition
   P-Door Lock Pos SW	Front passenger side door unlock detection switch signal / ON or OFF	ON. Front passenger side door is unlocked OFF Front passenger side door is locked

   OK: The display is as specified in the normal condition column.

NG: Go to step 2

OK : PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE  (See PROBLEM SYMPTOMS TABLE  )

1. Remove the front door lock RH (see REMOVAL  ).
2. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   RESISTANCE SPECIFICATION



   Tester Connection	Switch Condition	Specified Condition
   7 (LSSR) - 8 (E)	LOCK	10 kΩ or higher
   	UNLOCK	Below 1 Ω

3. Reinstall the front door lock RH (see INSTALLATION  ).

NG: REPLACE FRONT DOOR LOCK RH  (See REMOVAL  )

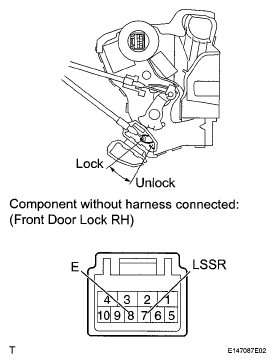

Fig 1: Identifying Front Door Lock RH Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK: Go to Next Step

1. Disconnect the I4 front door lock RH connector.
2. Disconnect the F38 main body ECU connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   RESISTANCE SPECIFICATION



   Tester Connection	Condition	Specified Condition
   I4-7 (LSSR) - F38-5 (LSWP)	Always	Below 1 Ω
   I4-7 (LSSR) - Body ground	Always	10 kΩ or higher
   I4-8 (E) - Body ground	Always	Below 1 Ω

4. Reconnect the front door lock RH connector.
5. Reconnect the main body ECU connector.

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

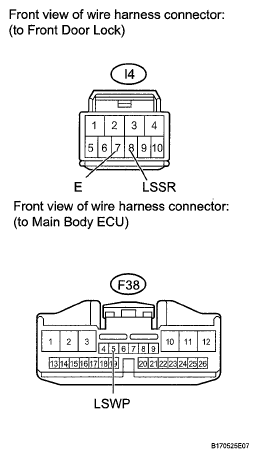

Fig 2: Identifying Main Body ECU And Front Door Lock RH Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK : REPLACE MAIN BODY ECU
