Turn Signal Switch Bracket Replacement

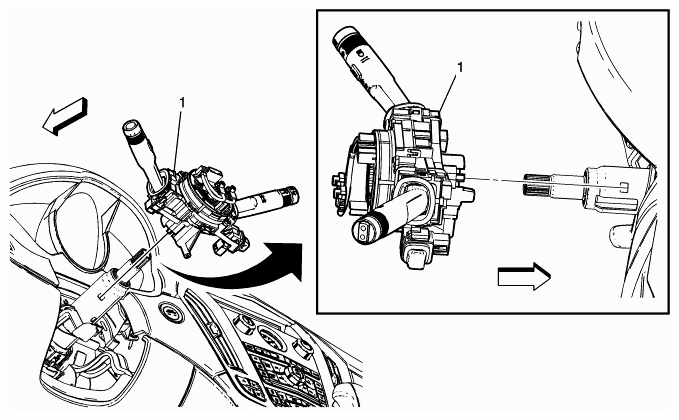

Fig 1: Identifying Turn Signal Switch Bracket

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedures  Remove the steering wheel. Refer to STEERING WHEEL REPLACEMENT . Remove the steering column shroud. Refer to STEERING COLUMN SHROUD REPLACEMENT .
1	Turn Signal Switch Bracket Procedure  Disconnect any electrical connectors as necessary. Release the 2 tabs in order to release the turn signal switch bracket from the steering column. Transfer any parts as necessary. Refer to the following procedures: TURN SIGNAL MULTIFUNCTION SWITCH REPLACEMENT  WINDSHIELD WIPER AND WASHER SWITCH REPLACEMENT STEERING WHEEL INFLATABLE RESTRAINT MODULE COIL REPLACEMENT STEERING ANGLE SENSOR REPLACEMENT  BRAKE AND ACCELERATOR PEDAL ADJUSTER SWITCH REPLACEMENT
