Steering Column Shroud Replacement

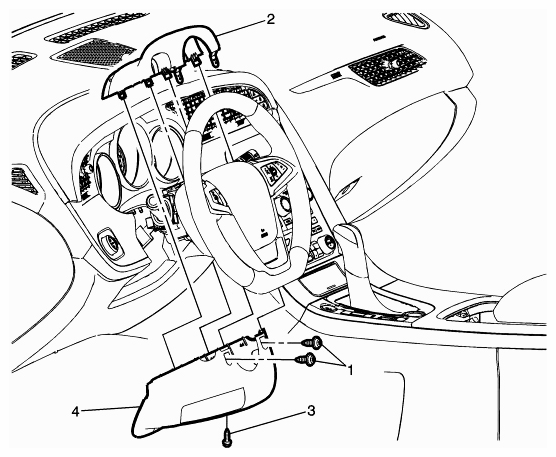

Fig 1: Identifying Steering Column Shrouds And Fasteners

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
1	Steering Column Shroud Fasteners (Qty: 2) Refer to FASTENER CAUTION . Procedure Turn the steering wheel to left and to the right in order to access the fasteners.
2	Steering Column Upper Shroud Procedure Use a flat bladed plastic trim tool in order to separate the upper steering column shroud from the lower steering column shroud and from the instrument panel cluster trim plate.
3	Steering Column Shroud Fastener
4	Steering Column Lower Shroud
