Steering Wheel Replacement

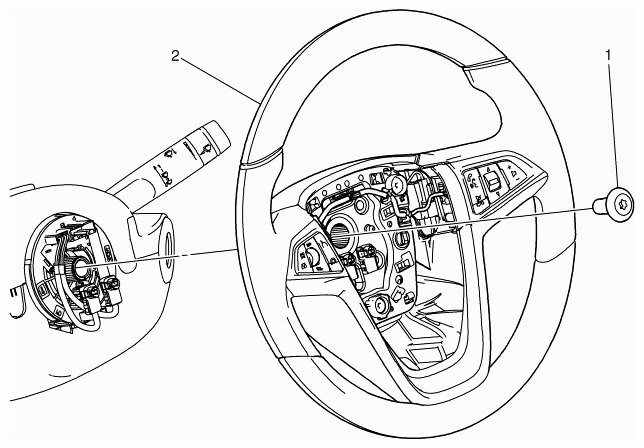

Fig 1: Identifying Steering Wheel And Bolt

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedures Replace the steering wheel inflatable restraint module. Refer to STEERING WHEEL INFLATABLE RESTRAINT MODULE REPLACEMENT . Use paint in order to place match marks on the steering wheel and on the steering column shaft.
1	Steering Wheel Bolt Refer to FASTENER CAUTION . Tighten 50 Nm (37 lb ft)
2	Steering Wheel Procedure Disconnect all electrical connectors as necessary. Loosen the steering wheel bolt until 2 to 3 threads are left engaged. Wiggle the steering wheel until the steering wheel disengages completely. Remove the steering wheel bolt. Remove the steering wheel. Copy the match marks from the old steering wheel to the new steering wheel. Transfer any parts as necessary.
