Body Control Module Bracket Replacement (Right Hand Drive)

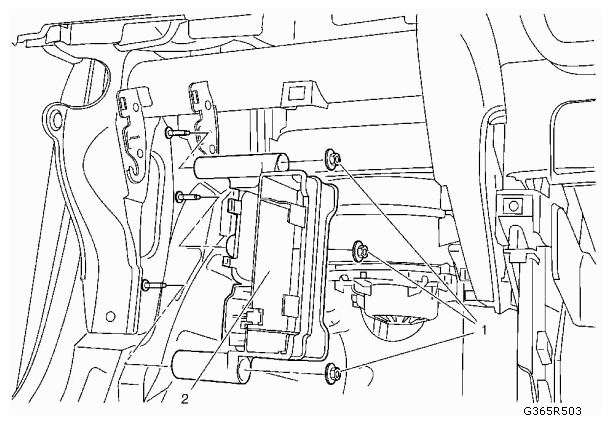

Fig 1: Identifying Body Control Module Bracket And Fastener (Right Hand Drive)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure  Remove the body control module. Refer to BODY CONTROL MODULE REPLACEMENT (RIGHT HAND DRIVE)  or BODY CONTROL MODULE REPLACEMENT (LEFT HAND DRIVE) . Remove the headlamp control module. Refer to HEADLAMP CONTROL MODULE REPLACEMENT . Remove the floor air outlet duct. Refer to FLOOR AIR OUTLET DUCT REPLACEMENT - RIGHT SIDE .
1	Body Control Module Bracket Fastener (Qty: 3) Refer to FASTENER CAUTION . Tighten  9 Nm (80 lb in)
2	Body Control Module Bracket
