Body Control Module Replacement (Right Hand Drive)

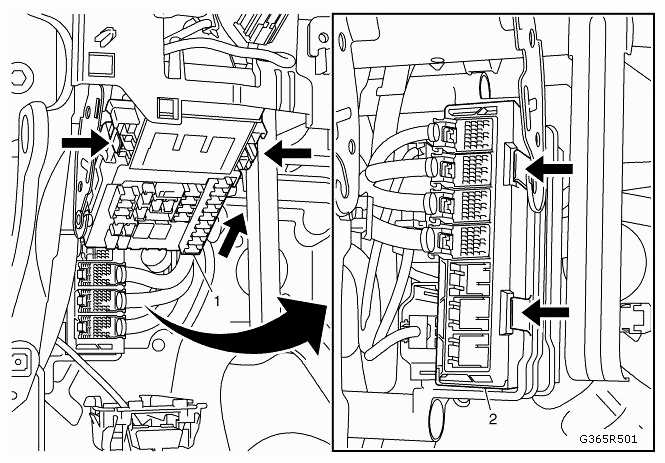

Fig 1: Locating Body Control Module And Inner Electrical Center (Right Hand Drive)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure  Disconnect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECTION AND CONNECTION . Remove the Instrument Panel Outer Trim Cover. Refer to INSTRUMENT PANEL OUTER TRIM COVER REPLACEMENT - LEFT SIDE . Remove the instrument panel compartment. Refer to GLOVE COMPARTMENT, REPLACEMENT .
1	Inner Electrical Center Procedure  Disconnect the lower three electrical connectors on the body control module. Clip out the inner electrical center.
2	Body Control Module Procedure  Disconnect the upper four electrical connectors on the body control module. Pull out the body control module of the bracket. For programming and set up information, refer to CONTROL MODULE REFERENCES .
