Body Control Module Replacement (Left Hand Drive)

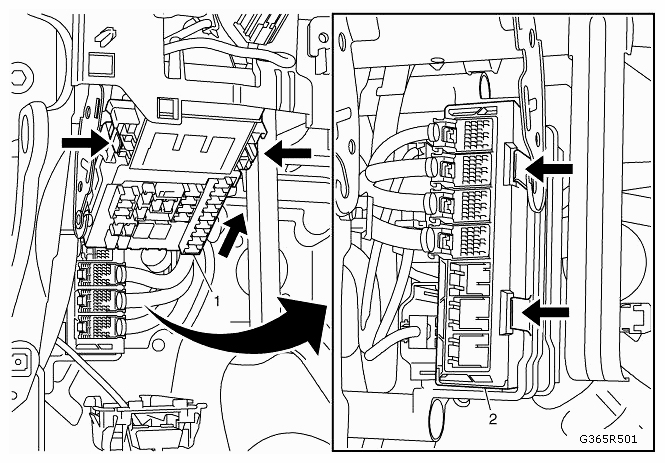

Fig 1: Locating Body Control Module And Inner Electrical Center (Left Hand Drive)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure  Remove the instrument panel lower trim panel - left side. Refer to INSTRUMENT PANEL LOWER TRIM PANEL INSULATOR REPLACEMENT - DRIVER SIDE .
1	Inner Electrical Center Procedure  Disconnect the lower three electrical connectors on the body control module. Clip out the inner electrical center.
2	Body Control Module Procedure  Disconnect the upper four electrical connectors on the body control module. Pull out the body control module of the bracket. For programming and set up information, refer to CONTROL MODULE REFERENCES .
