Installing AWS control unit

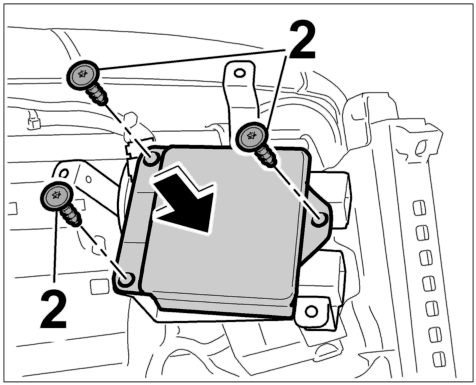

Fig 1: Screwing AWS control unit and holder together

Courtesy of PORSCHE OF NORTH AMERICA, INC.

1. Position AWS control unit on the holder and screw it down using the three fastening screws -2-  . See Fig 1.

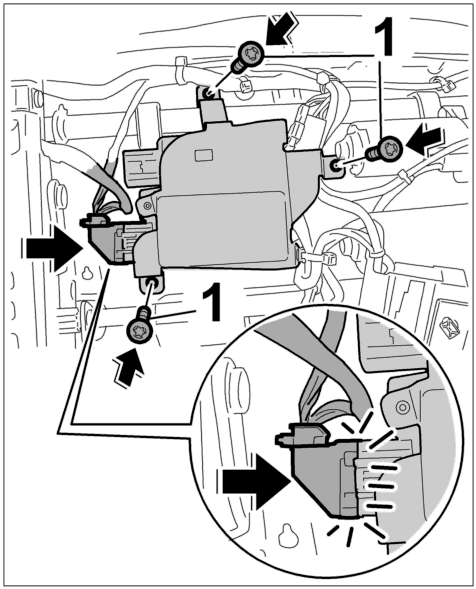

Fig 2: Screwing AWS holder to seat bracket

Courtesy of PORSCHE OF NORTH AMERICA, INC.

2. Position AWS holder on the seat bracket and screw it down using the three fastening screws -1-  . See Fig 2.

3. Push electric connector onto AWS control unit until it is felt to engage.

4. Insert seat central connector into AWS holder and clamp by turning to the right.
