Exploded View

WARNING: This page is about a different variant/trim than selected.

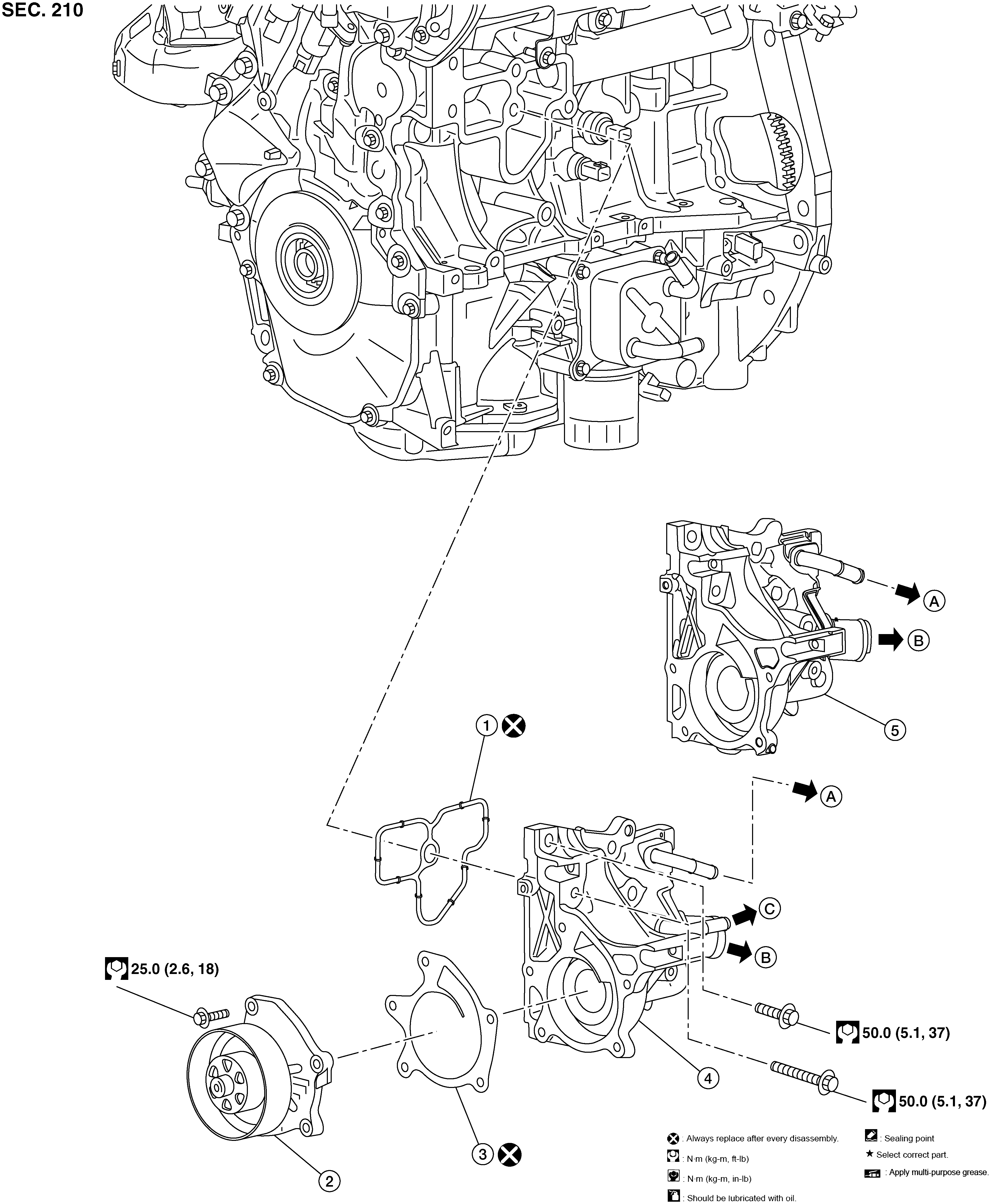

Fig 1: Water Pump Replacement Components With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Water pump housing gasket	2.	Water pump	3.	Water pump gasket
4.	Water pump housing (For CVT models)	5.	Water pump housing (For M/T models)	A.	To oil cooler. Refer to Exploded View.
B.	To radiator. Refer to Exploded View.	C.	To CVT oil warmer. Refer to Exploded View.
