Amplifier Antenna: Removal

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
REMOVE TONNEAU COVER ASSEMBLY
REMOVE DECK BOARD SUB-ASSEMBLY
REMOVE BACK DOOR SCUFF PLATE (See REMOVAL )
REMOVE DECK FLOOR BOX LH (See REMOVAL )
REMOVE DECK FLOOR BOX RH (See REMOVAL )
REMOVE ROPE HOOK
REMOVE REAR NO. 1 FLOOR BOARD (See REMOVAL )
REMOVE REAR SEAT CUSHION ASSEMBLY (See REMOVAL )
REMOVE REAR SEATBACK ASSEMBLY RH (See REMOVAL )
REMOVE FRONT DOOR SCUFF PLATE RH (See REMOVAL )
REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK
REMOVE NO. 1 SIDE TRIM ASSEMBLY RH (See REMOVAL )
REMOVE NO. 2 LUGGAGE COMPARTMENT TRIM HOOK
REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH (See REMOVAL )
REMOVE ROOF ANTENNA POLE SUB-ASSEMBLY
REMOVE ANTENNA NUT

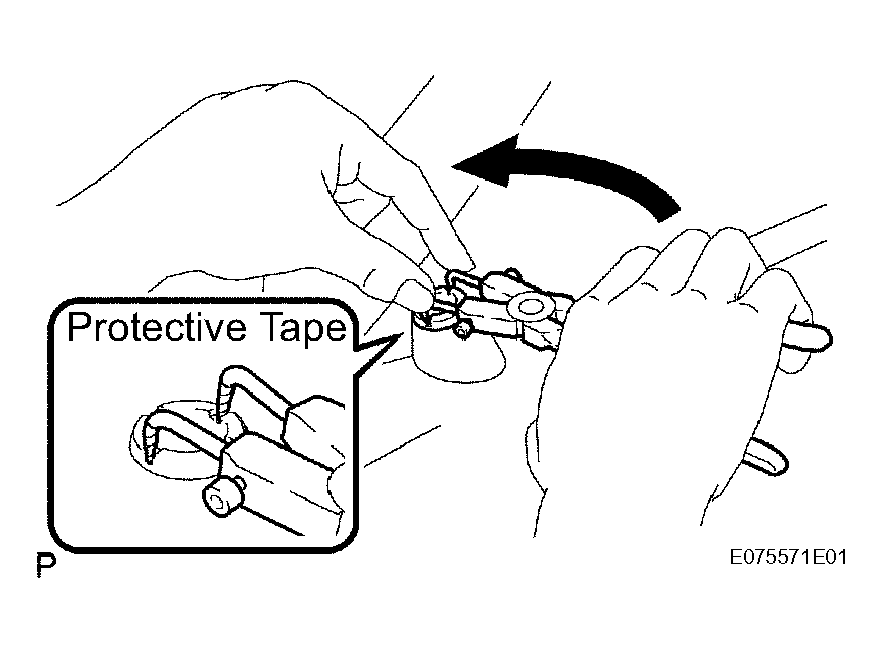

1. Using snap ring pliers, remove the antenna nut as shown in the illustration.
HINT:

Wrap the tip of the snap ring pliers with protective tape to prevent damage to the part

Fig 1: Removing Antenna Nut Using Snap Ring Pliers
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

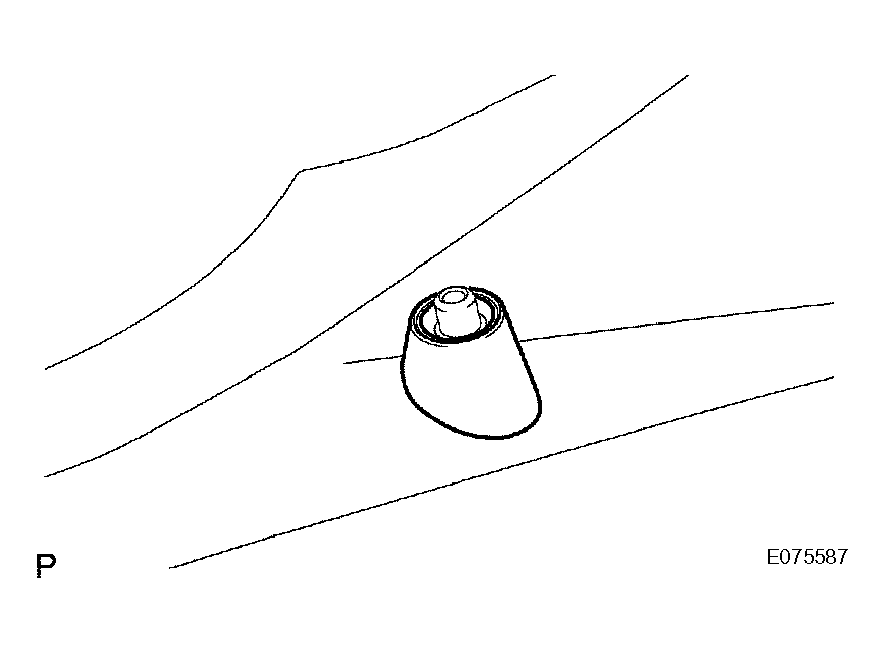

REMOVE ANTENNA ORNAMENT
1. Remove the antenna ornament.
Fig 2: Removing Antenna Ornament
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE AMPLIFIER ANTENNA ASSEMBLY
1. Disconnect the connector.

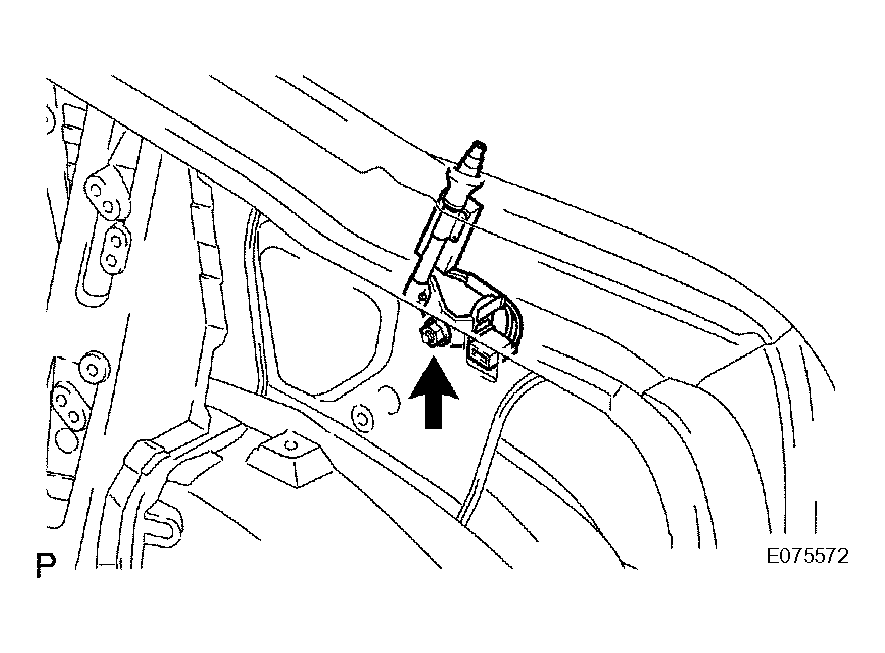

2. Remove the nut.

  Fig 3: Removing Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

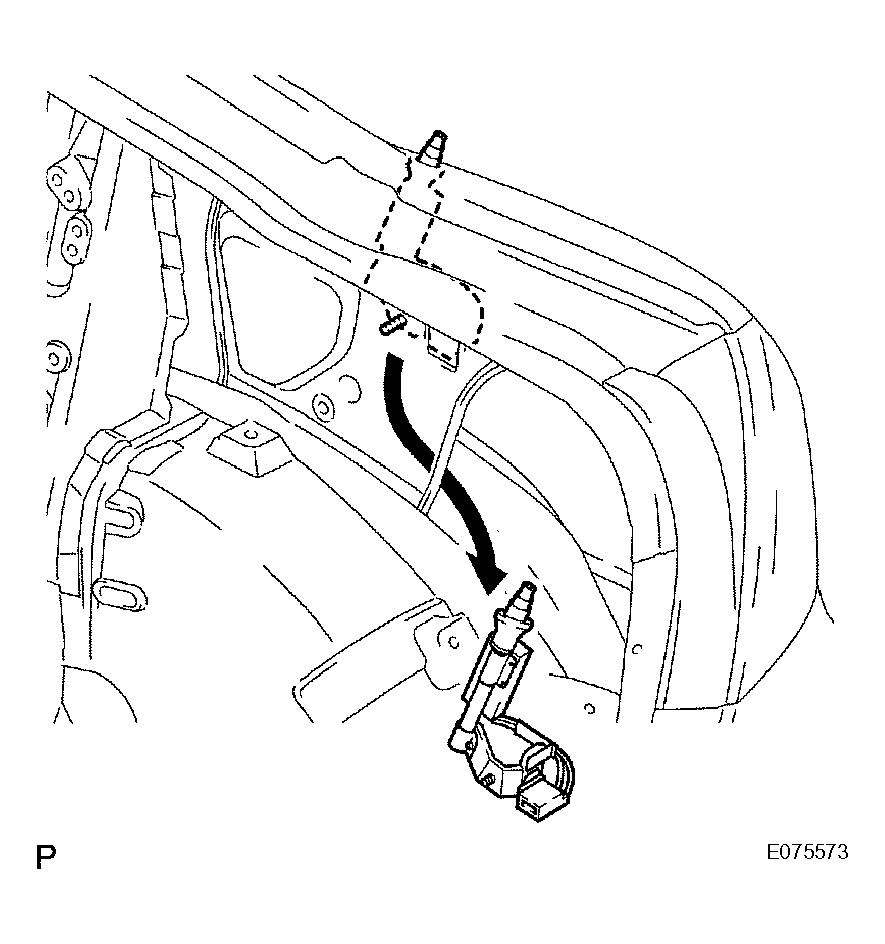

3. Remove the amplifier antenna in the direction shown by the arrow in the illustration.

Fig 4: Removing Amplifier Antenna In Direction Shown
