Upper Instrument Panel: Removal

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.

TABLE OF BOLT, SCREW AND NUT
HINT:

All bolts, screws and nuts relevant to installing and removing the instrument panel are shown along with their alphabet code in the table below.

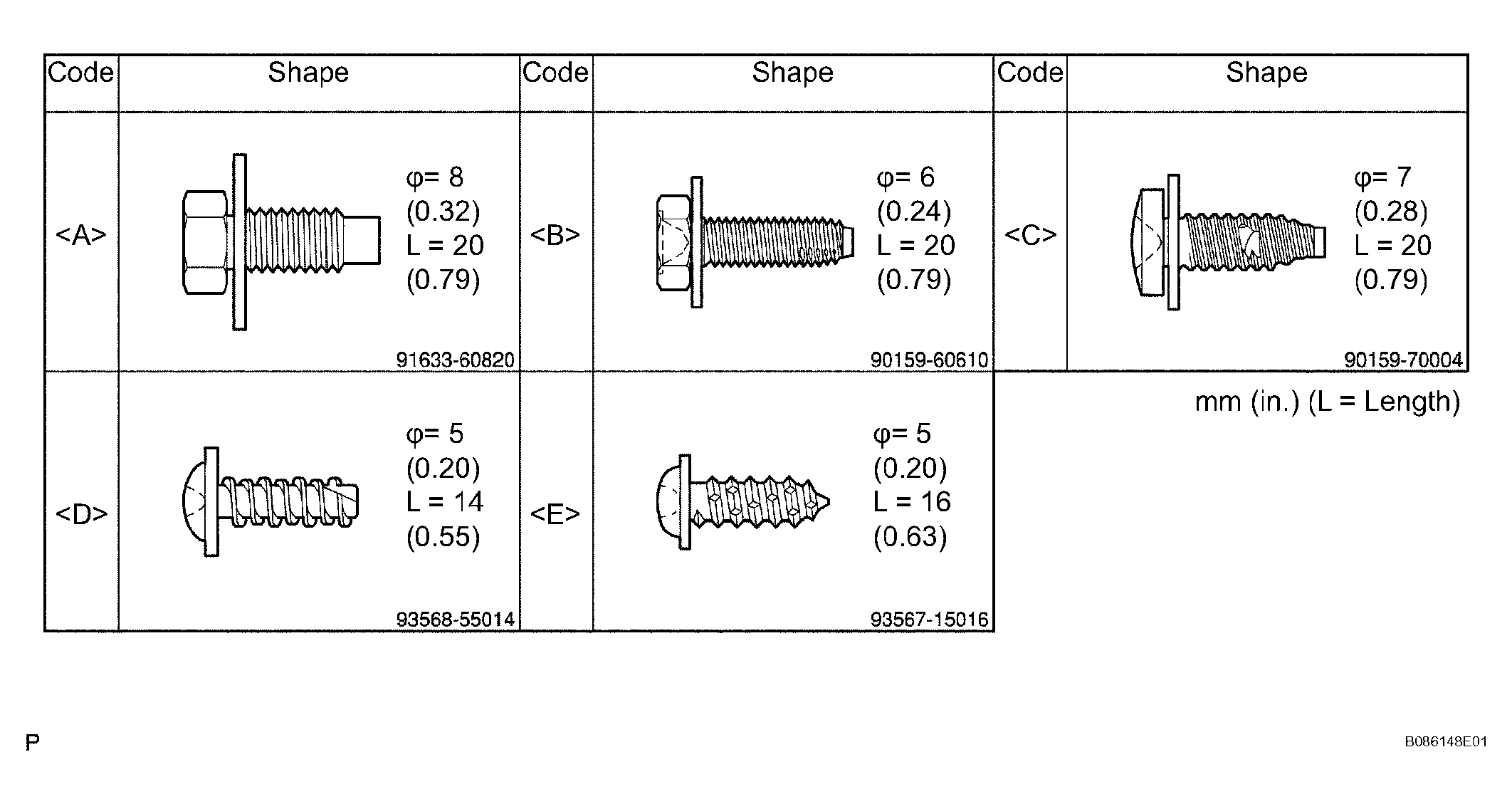

Fig 1: Bolts And Screws Specifications Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

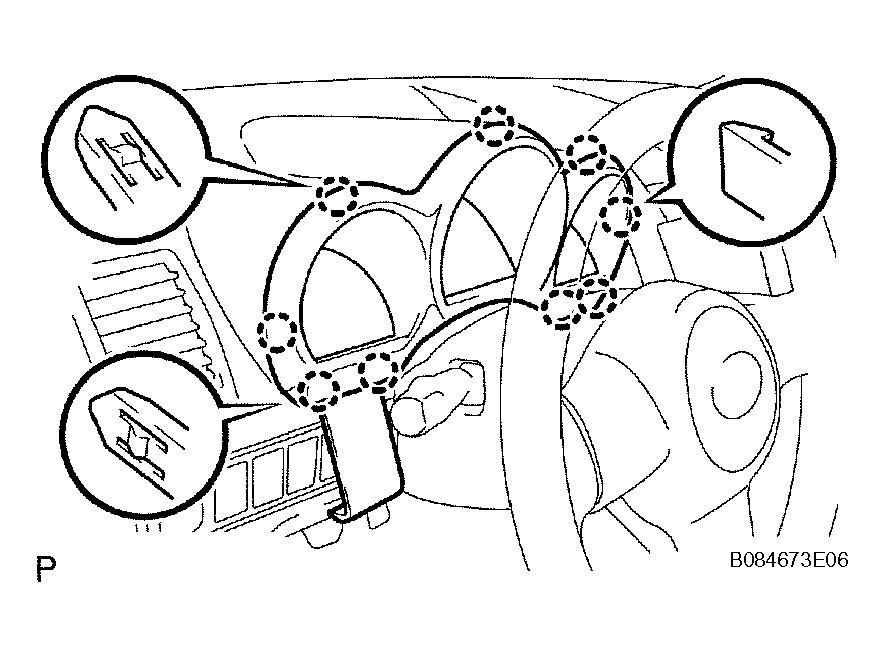

REMOVE METER HOOD SUB-ASSEMBLY
1. Tilt the steering column assembly down as far as possible.
2. Using a moulding remover, detach the 9 claws.
  HINT:

  Tape the moulding remover tip before use.
3. Remove the meter hood.
Fig 2: Detaching Meter Hood Sub-Assembly Claws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE COMBINATION METER ASSEMBLY

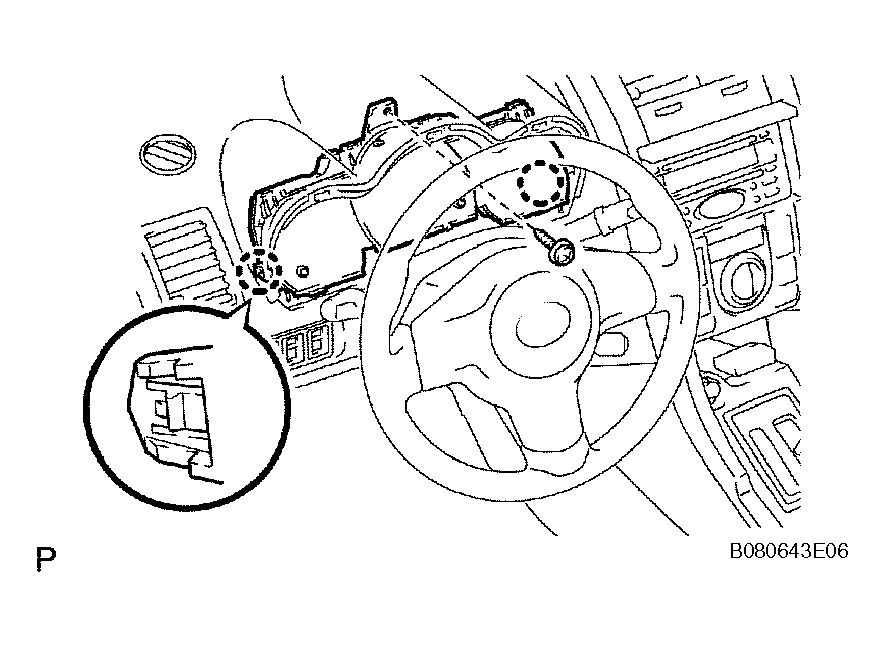

1. Remove the screw, and detach the 2 claws.
2. Remove the combination meter and disconnect the connector.
Fig 3: Detaching Combination Meter Assembly Claws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY
(Manual Transaxle)

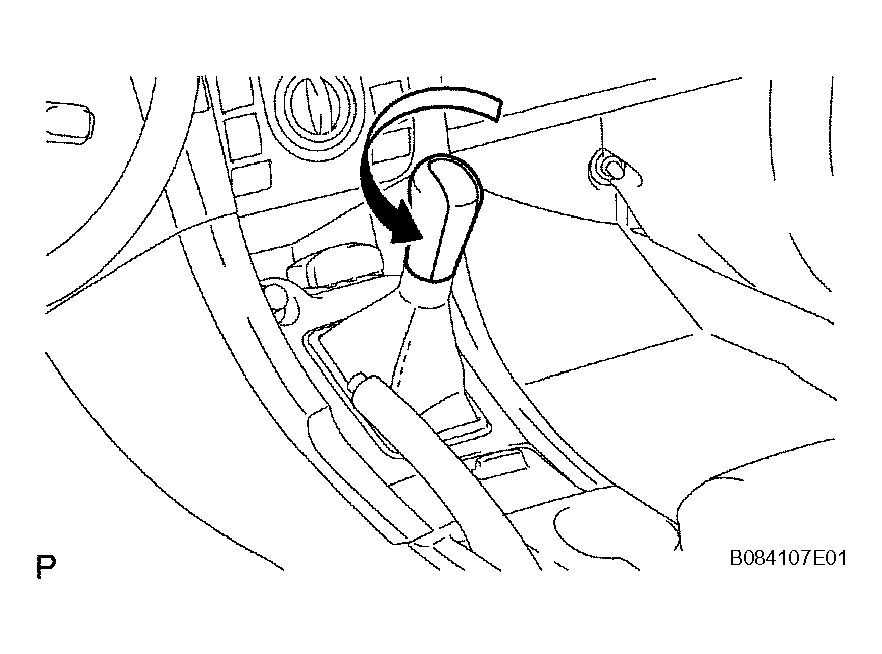

1. Turn the shift lever knob counterclockwise and remove the shift lever knob.
Fig 4: Removing Shift Lever Knob (Counterclockwise)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE UPPER CONSOLE PANEL

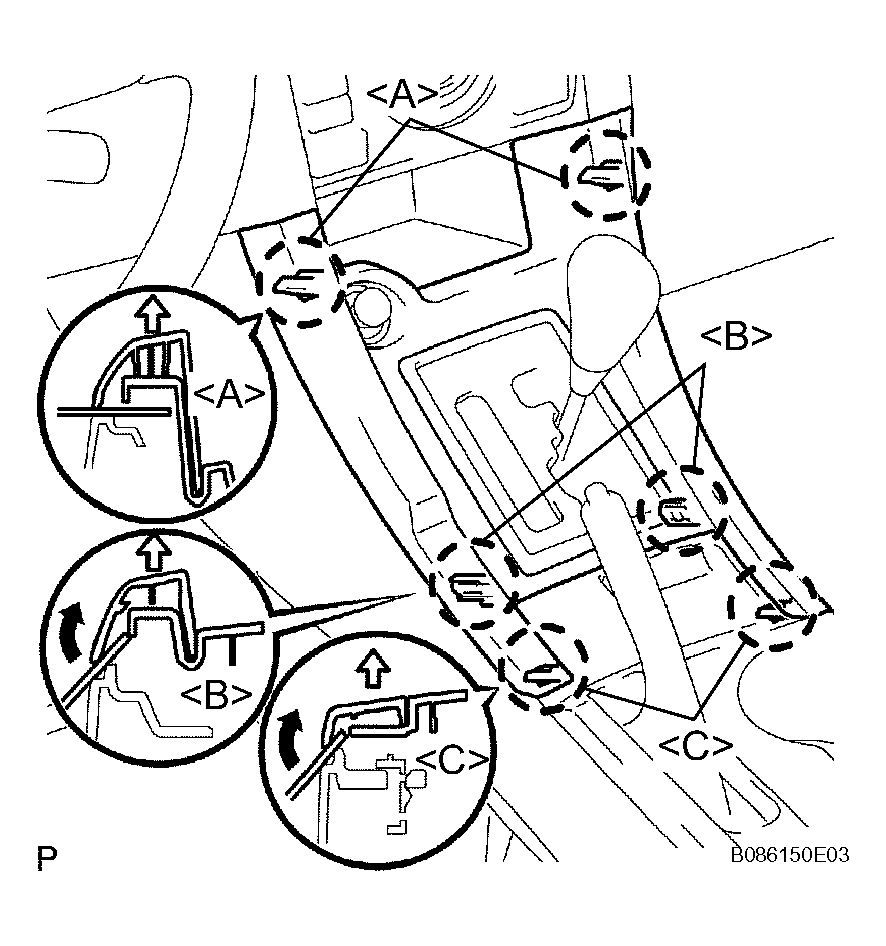

1. Using a moulding remover, detach the 6 claws.
  HINT:

  Tape the moulding remover tip before use.

  Fig 5: Detaching Upper Console Panel Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

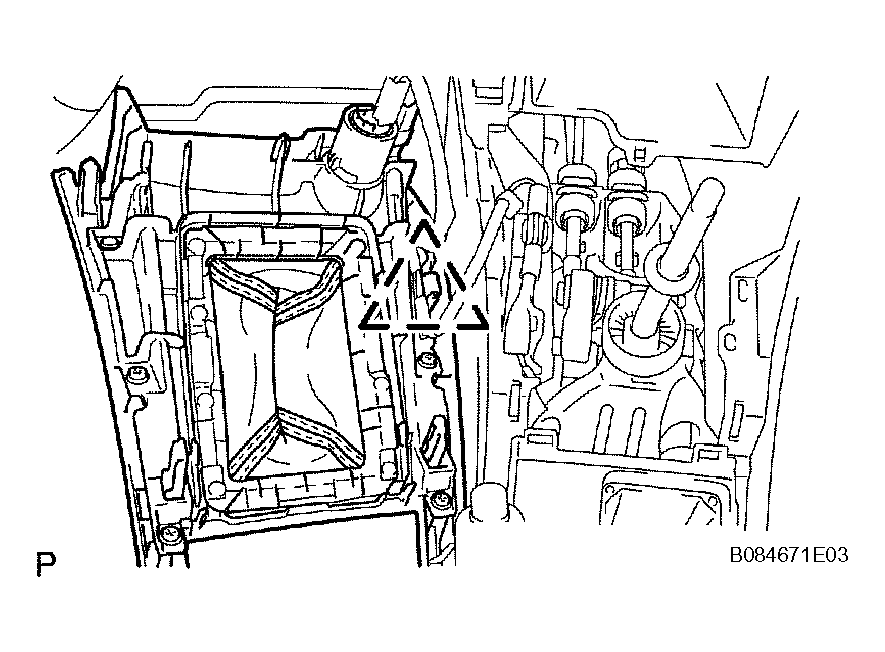

2. Disconnect the connector.
3. Remove the clamp and console panel.
Fig 6: Disconnecting Console Panel Connector
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE HEATER CONTROL AND ACCESSORY ASSEMBLY
REMOVE NO. 1 RADIO BRACKET
1. Remove the nut, screw and No. 1 radio bracket.
REMOVE NO. 2 RADIO BRACKET
1. Remove the nut, screw and No. 2 radio bracket.
REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY

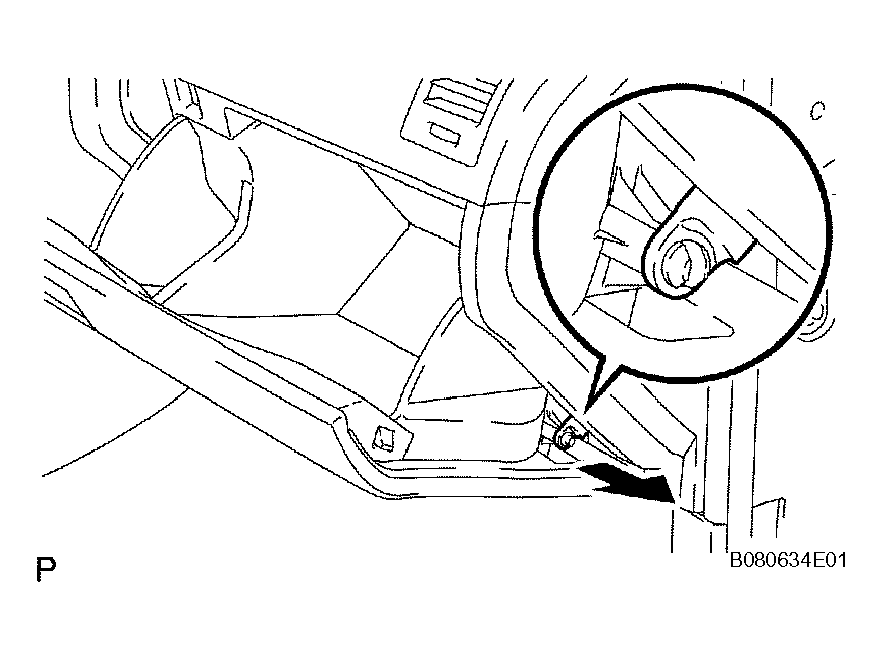

1. Disconnect the glove compartment door stopper from the glove compartment door.

  Fig 7: Disconnecting Glove Compartment Door Stopper From Glove Compartment Door
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

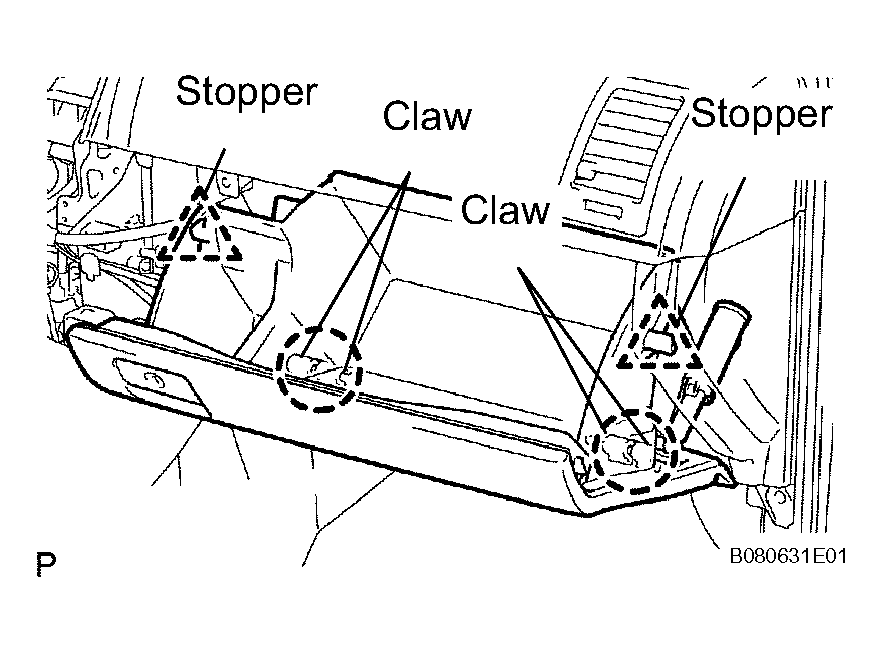

2. Slightly press in on the upper sides of the glove compartment door assembly to release the 2 stoppers.
3. Detach the 4 claws and remove the glove compartment door.
Fig 8: Detaching Glove Compartment Door Claws And Stopper
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE GLOVE COMPARTMENT DOOR STOPPER SUB-ASSEMBLY

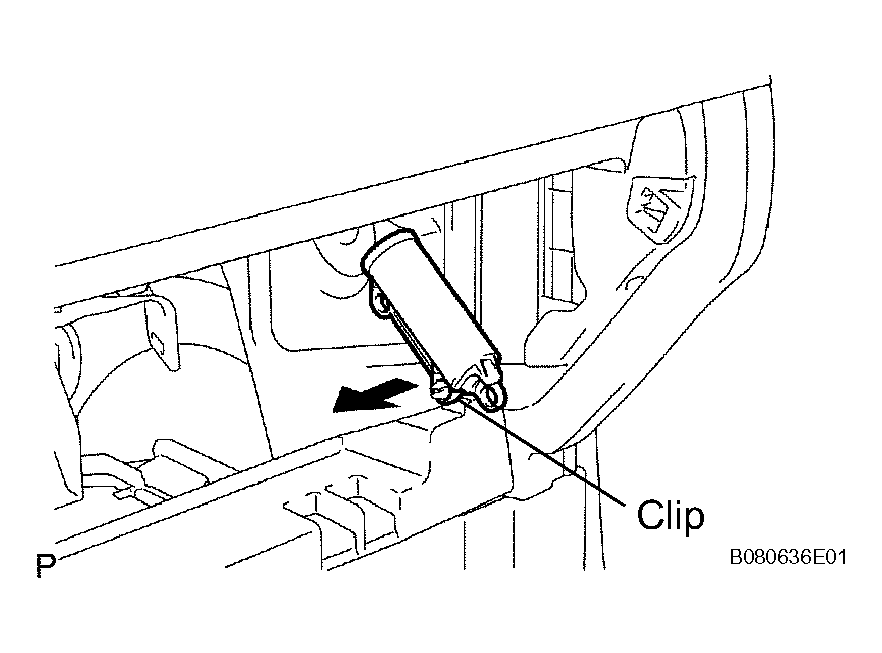

1. Detach the clip and remove the glove compartment door stopper.
Fig 9: Detaching Glove Compartment Door Stopper Clip
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT PILLAR GARNISH LH (w/o Curtain Shield Airbag) (See REMOVAL )
REMOVE FRONT PILLAR GARNISH LH (w/ Curtain Shield Airbag) (See REMOVAL )
REMOVE FRONT PILLAR GARNISH RH (w/o Curtain Shield Airbag)
HINT:

Use the same procedures for the RH side and LH side.
REMOVE FRONT PILLAR GARNISH RH (w/ Curtain Shield Airbag)
HINT:

Use the same procedures for the RH side and LH side.
DISCONNECT PASSENGER AIRBAG CONNECTOR
REMOVE UPPER INSTRUMENT PANEL SUBASSEMBLY
1. Remove the 5 screws and 2 bolts.
2. Detach the 13 claws.
3. Pull the upper instrument panel rearward to remove it.

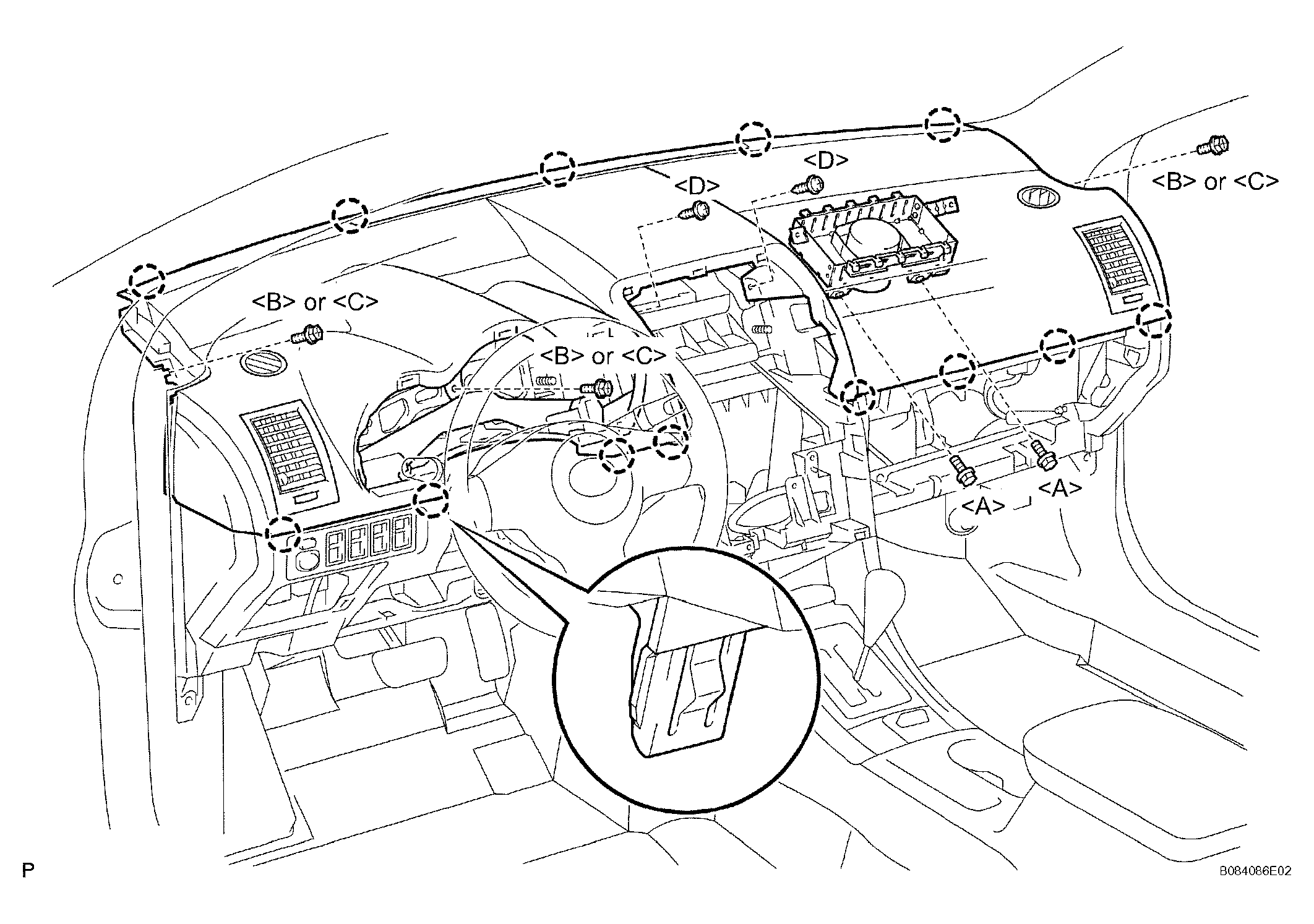

Fig 10: Removing Upper Instrument Panel Subassembly Screws, Bolts And Claws
