Roof Headlining: Removal

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE TONNEAU COVER ASSEMBLY
  2. REMOVE DECK BOARD SUB-ASSEMBLY
  3. REMOVE BACK DOOR SCUFF PLATE
    1. Using a clip remover, detach the 4 clips and remove the scuff plate.
  4. REMOVE BACK DOOR WEATHERSTRIP
  5. REMOVE SPARE WHEEL COVER ASSEMBLY
  6. REMOVE DECK FLOOR BOX LH
    1. Using a clip remover, remove the 2 clips and box.
  7. REMOVE DECK FLOOR BOX RH
    1. Using a clip remover, remove the 2 clips and box.
  8. REMOVE DECK FLOOR BOX REAR
  9. REMOVE NO. 1 DECK BOARD
    1. Using a screwdriver, detach the 2 claws and remove the bolt and rope hook.

      HINT:

      Tape the screwdriver tip before use.

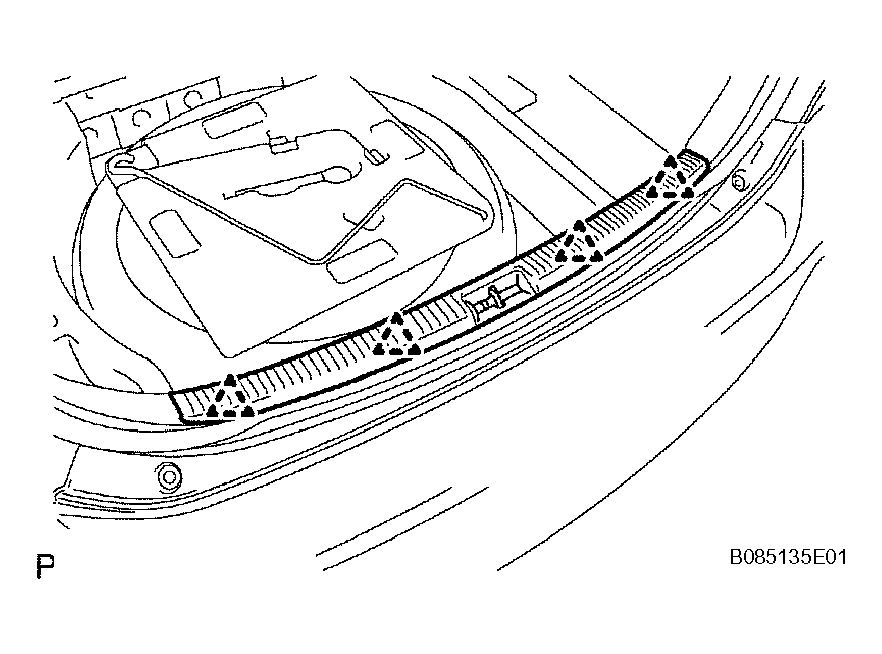

      Fig 1: Removing Back Door Scuff Plate
      G04224780Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Fig 2: Removing Rope Hook Bolt
      G04224781Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a clip remover, detach the 4 clips and remove the deck board.

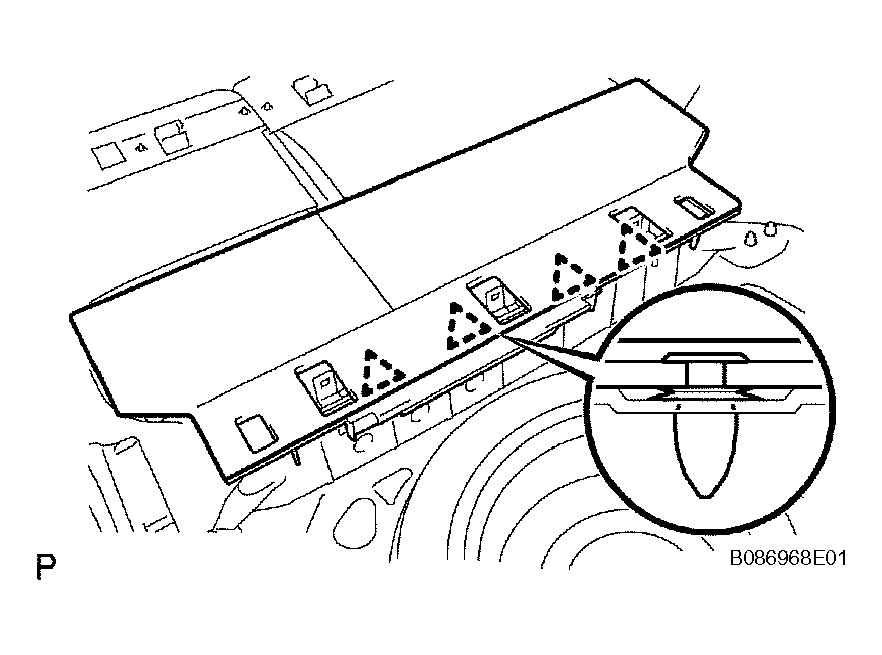

    Fig 3: Removing Deck Board Clip
    G04224782Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE REAR NO. 1 FLOOR BOARD
    1. Using a clip remover, detach the clip and remove the board.

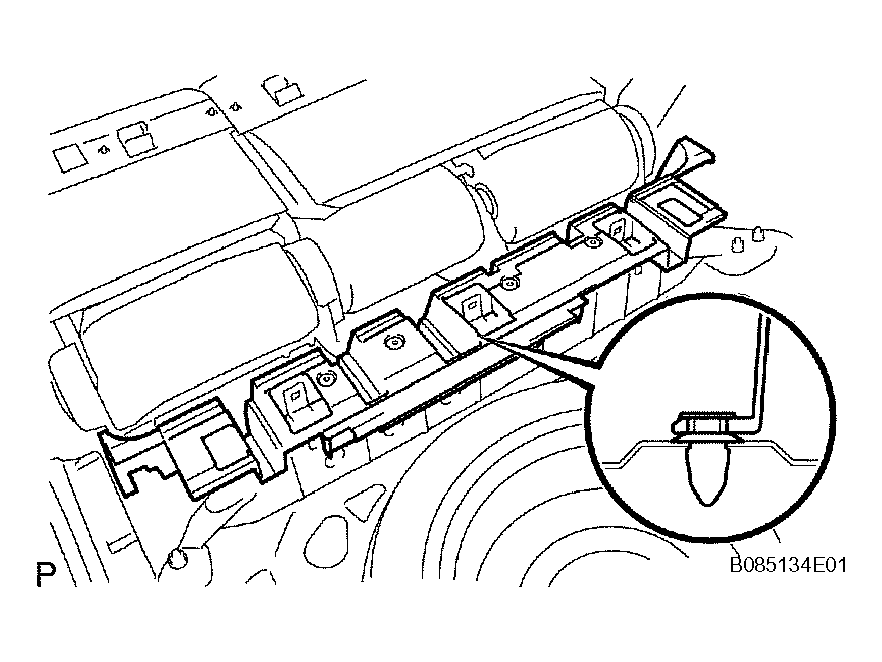

    Fig 4: Removing Rear No. 1 Floor Board Clips
    G04224783Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE FRONT DOOR SCUFF PLATE OUTSIDE LH
    1. Using a screwdriver, detach the 4 clips and remove the scuff plate.

      HINT:

      Tape the screwdriver tip before use.

  12. REMOVE FRONT DOOR SCUFF PLATE OUTSIDE RH

    HINT:

    Use the same procedures described for the LH side.

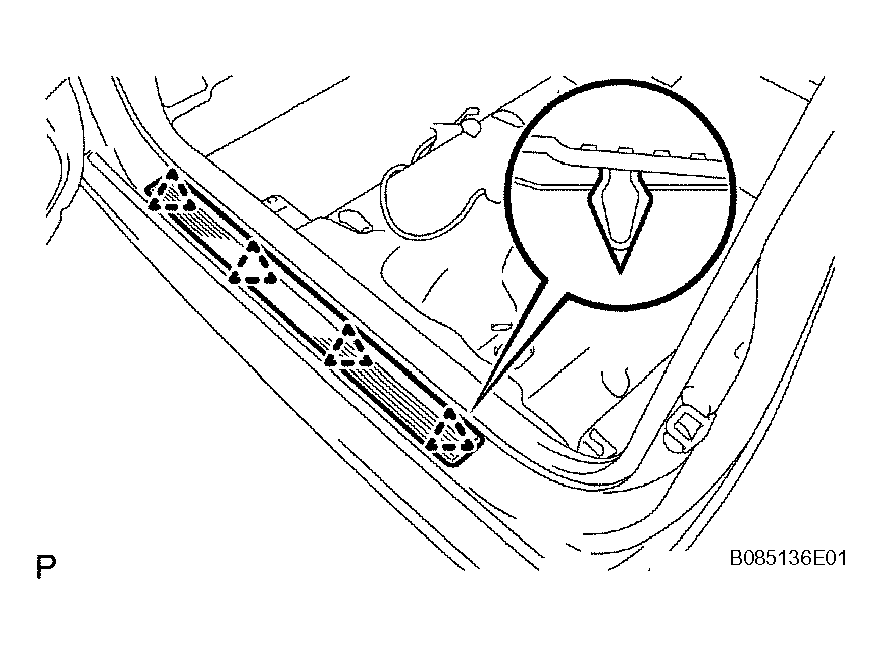

    Fig 5: Removing Front Door Scuff Plate Clips
    G04224784Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE FRONT DOOR SCUFF PLATE LH
    1. Using a screwdriver, detach the 10 claws and remove the scuff plate.

      HINT:

      Tape the screwdriver tip before use.

  14. REMOVE FRONT DOOR SCUFF PLATE RH

    HINT:

    Use the same procedures described for the LH side.

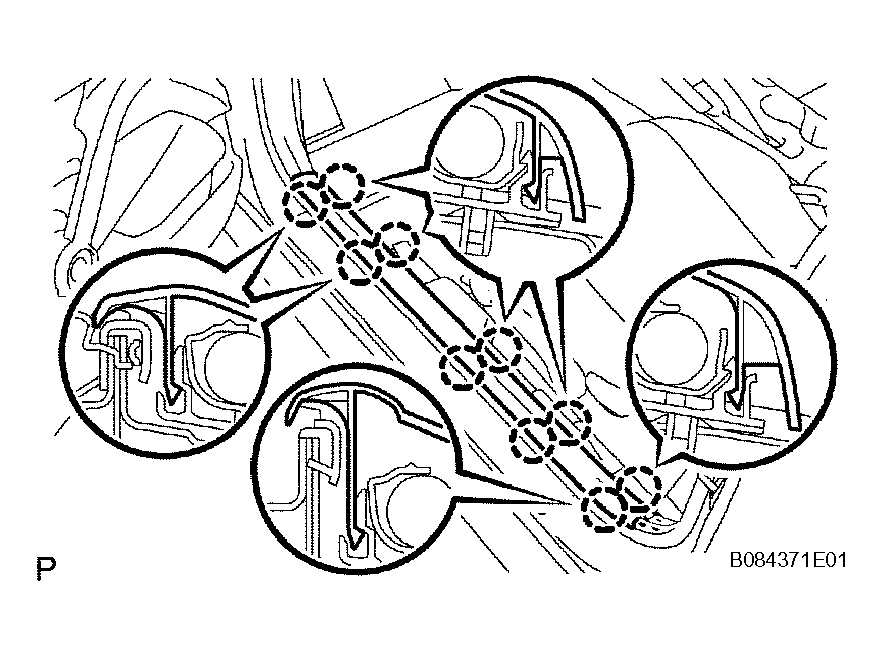

    Fig 6: Removing Front Door Scuff Plate Claws
    G04224785Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE COWL SIDE TRIM SUB-ASSEMBLY LH
    1. Remove the cap nut.
    2. Using a clip remover, detach the 2 clips and remove the trim.
  16. REMOVE COWL SIDE TRIM SUB-ASSEMBLY RH

    HINT:

    Use the same procedures described for the LH side.

  17. REMOVE REAR SEAT CUSHION ASSEMBLY (See  REMOVAL  )
  18. REMOVE REAR SEATBACK ASSEMBLY LH (See  REMOVAL  )
  19. REMOVE REAR SEATBACK ASSEMBLY RH (See  REMOVAL  )
  20. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH
  21. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP RH

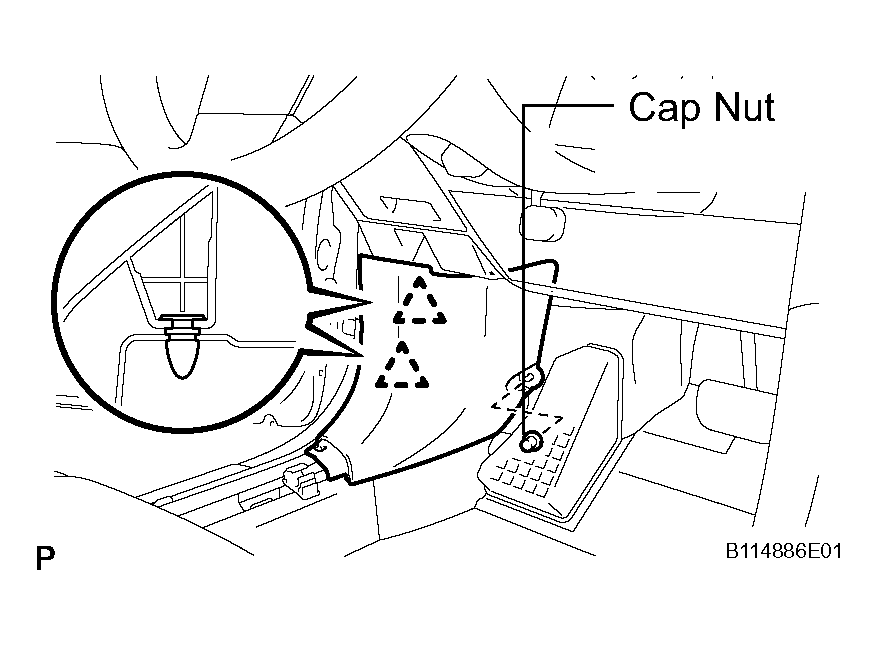

    Fig 7: Removing Cowl Side Trim Cap Nut
    G04224786Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. REMOVE NO. 1 SIDE TRIM ASSEMBLY LH
    1. Remove the 2 floor anchor bolts (front and rear seat belt).
    2. Using a clip remover, remove the clip labeled A.
    3. Using a screwdriver, detach the claw labeled A and remove the hook of the trim by turning it counterclockwise.

      HINT:

      Tape the screwdriver tip before use.

    4. Using a clip remover, detach the 8 clips.
    5. Detach the 3 claws and remove the trim.
  23. REMOVE NO. 1 SIDE TRIM ASSEMBLY RH

    HINT:

    Use the same procedures described for the LH side.

  24. REMOVE CENTER PILLAR GARNISH LH
    1. Remove the 2 screws.
    2. w/o Curtain shield airbag:

      Using a clip remover, detach the clip and remove the garnish.

    3. w/ Curtain shield airbag:

      Using a screwdriver, detach the 2 claws and clip, and remove the garnish.

      HINT:

      Tape the screwdriver tip before use.

  25. REMOVE CENTER PILLAR GARNISH RH

    HINT:

    Use the same procedures described for the LH side.

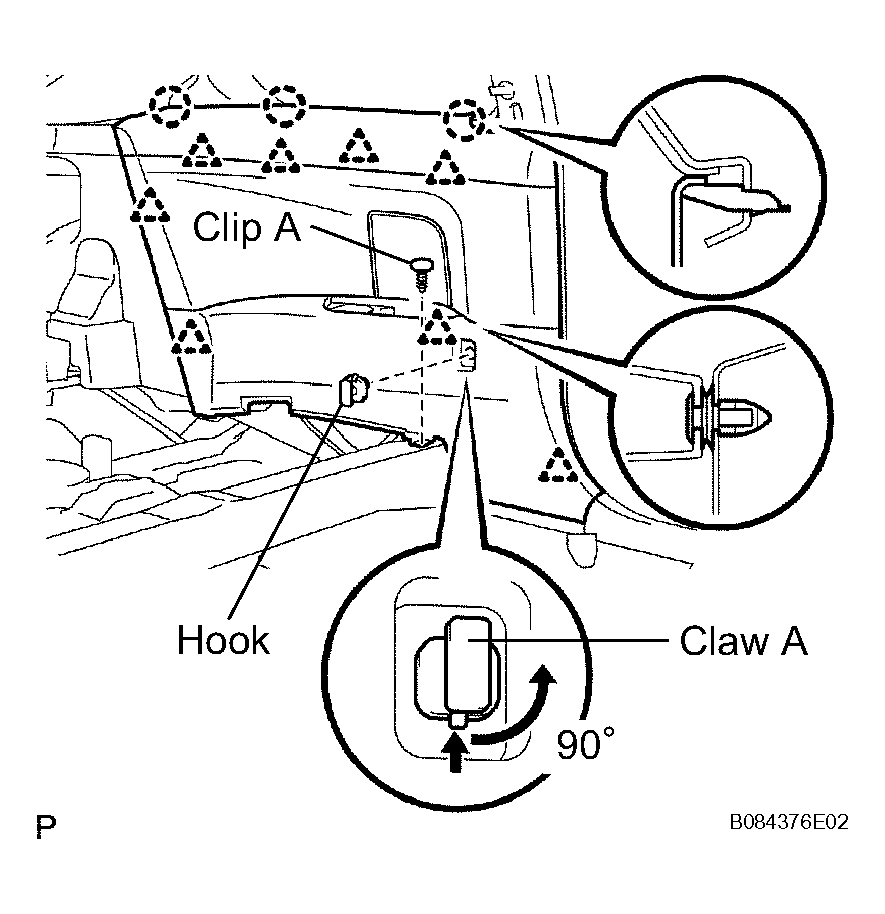

    Fig 8: Removing No. 1 Side Trim Claws And Clip
    G04224787Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

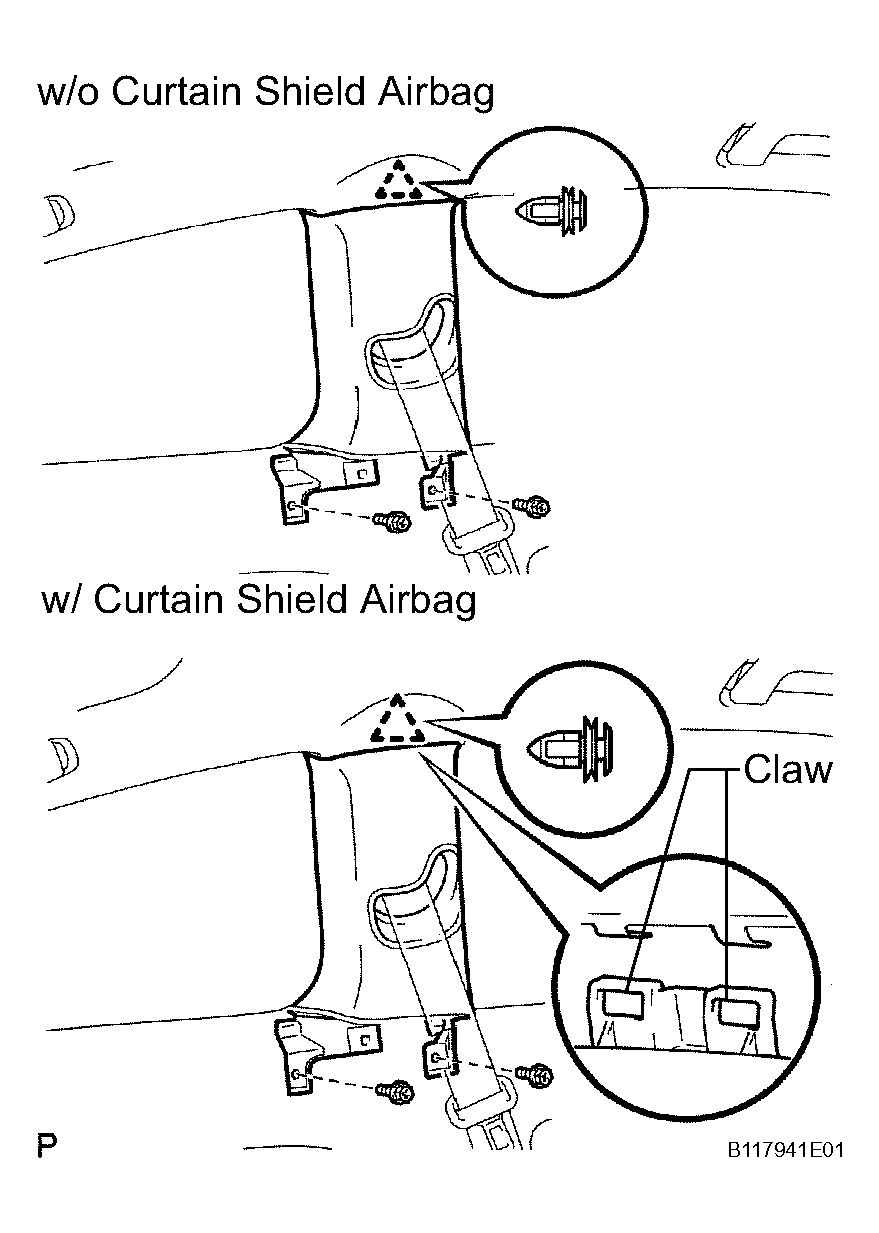

    Fig 9: Removing Garnish Claws And Clip (w/o And w/ Curtain Shield Airbag)
    G04224788Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  26. REMOVE ROOF SIDE GARNISH INNER LOWER LH
    1. Using a clip remover, detach the 5 clips and remove the garnish.
  27. REMOVE ROOF SIDE GARNISH INNER LOWER RH

    HINT:

    Use the same procedures described for the LH side.

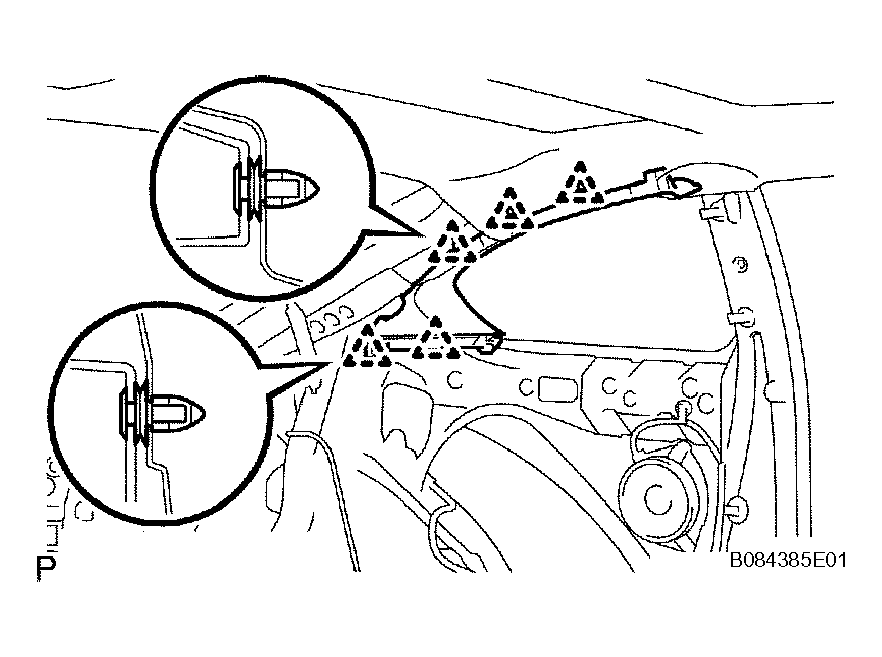

    Fig 10: Removing Roof Side Garnish Inner Lower Clips
    G04224789Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  28. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH
    1. Insert a 3 mm hexagon wrench into the hole A to disengage the claw, then remove the luggage hook from the side panel.
    2. Remove the luggage hook, bolt and rope hook.
    3. Using a clip remover, detach the 4 clips.
    4. Using a screwdriver, detach the 4 claws and remove the side panel.

      HINT:

      Tape the screwdriver tip before use.

  29. REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH

    HINT:

    Use the same procedures described for the LH side.

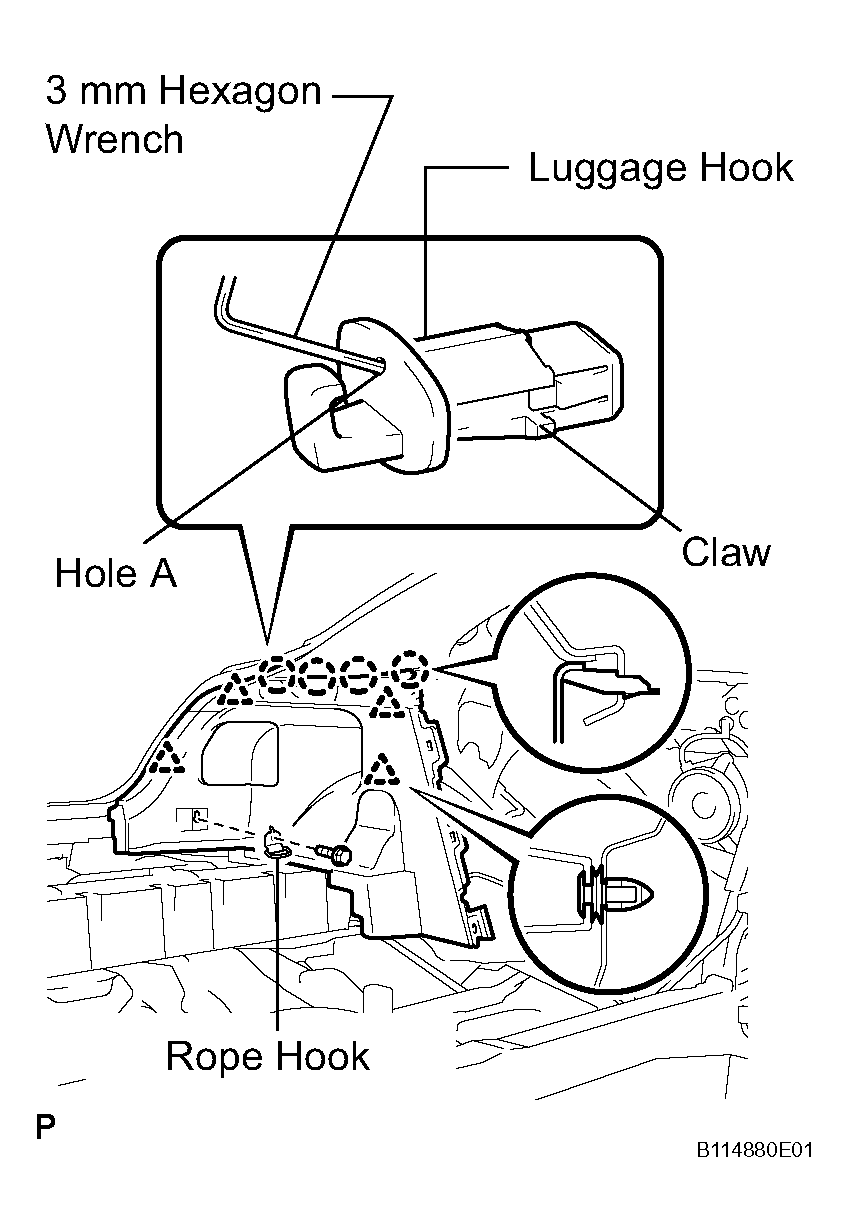

    Fig 11: Removing Deck Trim Side Panel Claws
    G04224790Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  30. REMOVE ROOF SIDE GARNISH ASSEMBLY INNER LH
    1. w/o Curtain shield airbag:

      Using a clip remover, detach the 4 clips and remove the garnish.

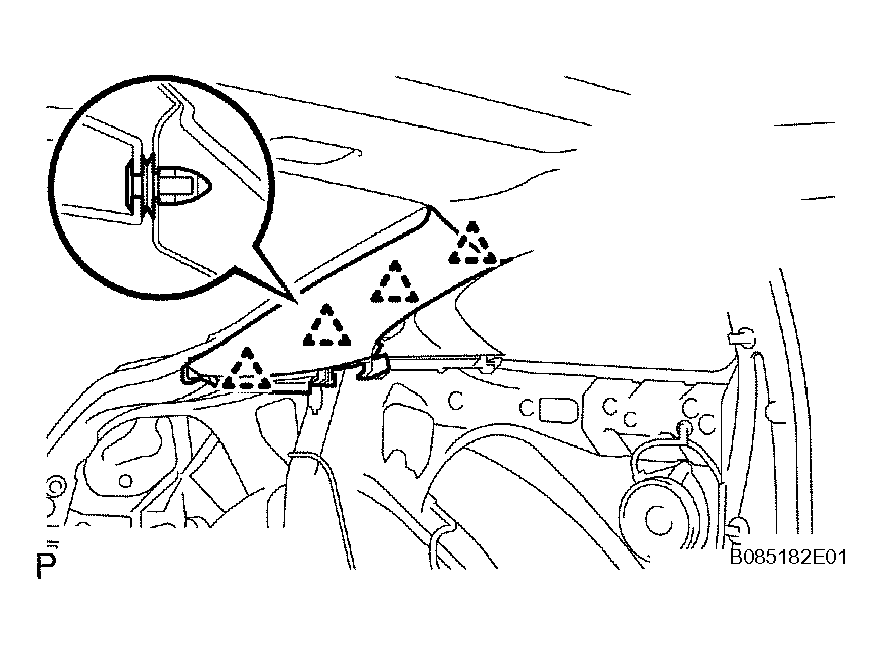

      Fig 12: Removing Roof Side Garnish (w/o Curtain Shield Airbag)
      G04224791Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. w/ Curtain shield airbag:
      1. Using a clip remover, detach the 3 clips labeled A.
      2. Using a screwdriver, firmly push the pin to disengage the clip labeled B.

        HINT:

        • Clip B cannot be reused.
        • Tape the screwdriver tip before use.
  31. REMOVE ROOF SIDE GARNISH ASSEMBLY INNER RH

    HINT:

    Use the same procedures described for the LH side.

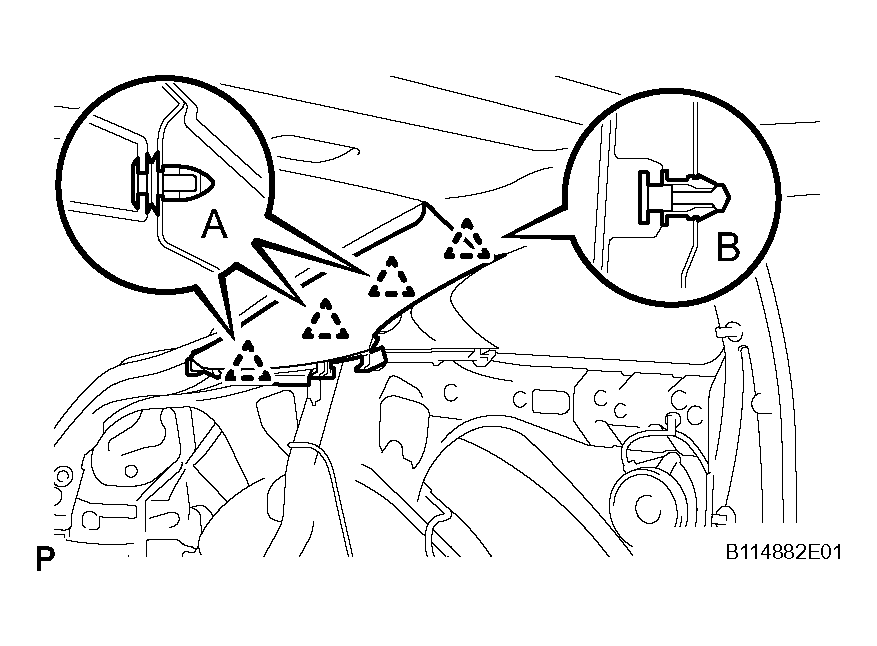

    Fig 13: Removing Roof Side Garnish (w/ Curtain Shield Airbag)
    G04224792Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  32. REMOVE FRONT PILLAR GARNISH LH
    1. w/o Curtain shield airbag:

      Using a clip remover, detach the 2 clips and remove the garnish.

      Fig 14: Removing Front Pillar Garnish Clips (w/o Curtain Shield Airbag)
      G04224793Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. w/ Curtain shield airbag:
      1. Using a clip remover, detach the clip labeled A.
      2. Using a screwdriver, firmly push the pin to detach the clip B.

        HINT:

        • Clip B cannot be reused.
        • Tape the screwdriver tip before use.

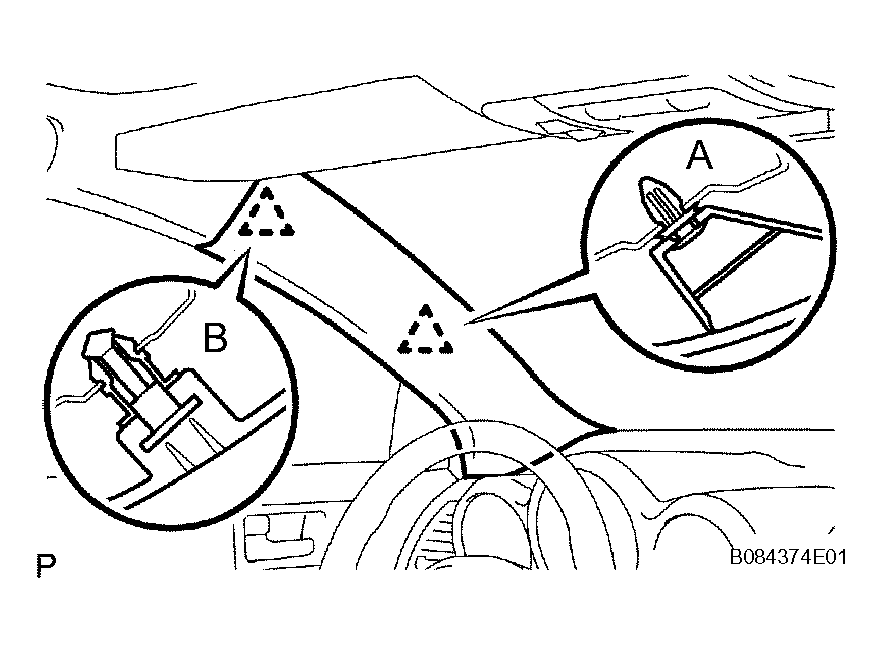

          Fig 15: Removing Front Pillar Garnish Clips (w/ Curtain Shield Airbag)
          G04224794Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. w/ Curtain shield airbag:

      Protect the curtain shield airbag LH.

      1. Thoroughly cover the airbag with a piece of cloth or nylon that is 700 mm (27.56 in.) x 120 mm (4.72 in.) and fix the ends of the cover with adhesive tape, as shown in the illustration.
        NOTE:

        Cover the curtain shield airbag with the protective cover as soon as the pillar garnish is removed.

  33. REMOVE FRONT PILLAR GARNISH RH

    HINT:

    Use the same procedures described for the LH side.

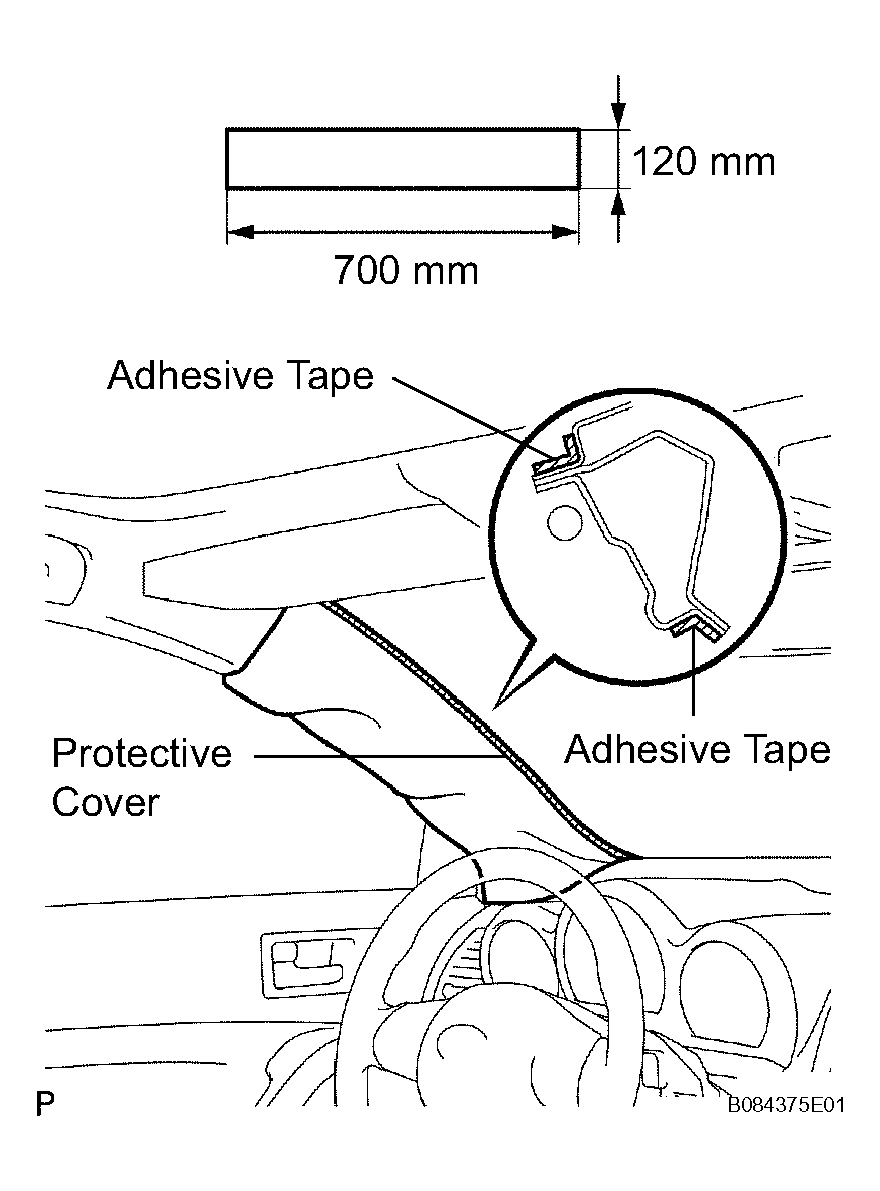

    Fig 16: Protecting Curtain Shield Airbag LH (w/ Curtain Shield Airbag)
    G04224795Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  34. REMOVE MAP LIGHT ASSEMBLY
    1. Using a clip remover, detach the 3 clips and remove the light.
    2. Disconnect the map light connector.
      Fig 17: Removing Map Light Clips
      G04224796Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  35. REMOVE NO. 1 ROOM LIGHT ASSEMBLY
    1. Using a screwdriver, detach the 4 claws and remove the lens.

      HINT:

      Tape the screwdriver tip before use.

      Fig 18: Removing No. 1 Room Light Lens Claws
      G04224797Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a screwdriver, detach the 4 claws and remove the light.

      HINT:

      Tape the screwdriver tip before use.

    3. Disconnect the light connector.
  36. REMOVE NO. 2 ROOM LIGHT ASSEMBLY
    1. Using a screwdriver, detach the light from the deck trim side panel LH.

      HINT:

      Tape the screwdriver tip before use.

  37. REMOVE LH VISOR ASSEMBLY
    1. Remove the 2 screws and visor.
  38. REMOVE RH VISOR ASSEMBLY
    1. Remove the 2 screws and visor.
  39. REMOVE VISOR HOLDER LH
    1. Remove the visor holder by turning it counterclockwise.

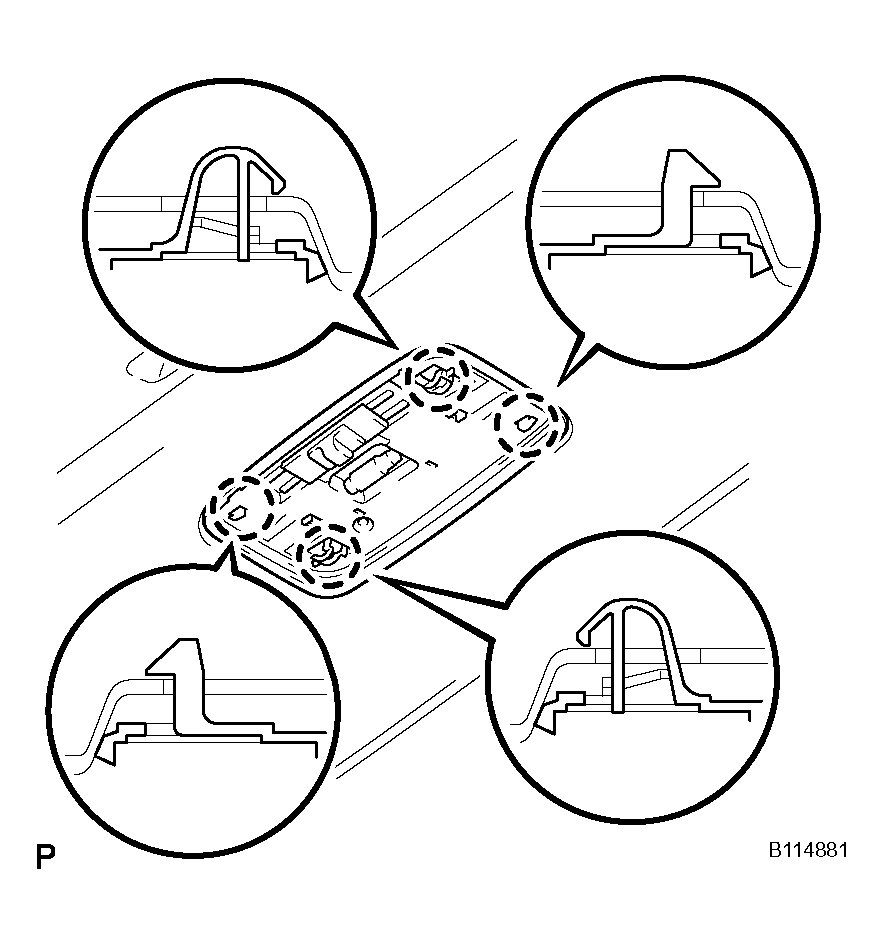

    Fig 19: Removing No. 1 Room Light Claws
    G04224798Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  40. REMOVE VISOR HOLDER RH
    1. Remove the visor holder by turning it counterclockwise.
    Fig 20: Removing Visor Holder
    G04224799Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  41. REMOVE ASSIST GRIP COVER
    1. Using a screwdriver, detach the 4 claws and remove the 2 covers.

      HINT:

      Tape the screwdriver tip before use.

    Fig 21: Removing Assist Grip Cover Claws
    G04224800Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  42. REMOVE ASSIST GRIP SUB-ASSEMBLY
    1. Using a screwdriver, detach the 4 claws and remove the assist grip.

      HINT:

      Tape the screwdriver tip before use.

    Fig 22: Removing Assist Grip Claws
    G04224801Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  43. REMOVE COAT HOOK
    1. Using a screwdriver, detach the claw and remove bolt and coat hook.

      HINT:

      Tape the screwdriver tip before use.

    Fig 23: Removing Coat Hook Bolt
    G04224802Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  44. REMOVE ROOF HEADLINING ASSEMBLY
    1. Using a clip remover, remove the 2 clips.
    2. Detach the 26 fasteners and remove the headlining.
    3. Remove the tape and the wire harness.
  45. REMOVE SIDE RAIL SPACER FRONT LH (w/o Curtain Shield Airbag)
  46. REMOVE SIDE RAIL SPACER FRONT RH (w/ Curtain Shield Airbag)
  47. REMOVE SIDE RAIL SPACER REAR LH (w/o Curtain Shield Airbag)
  48. REMOVE SIDE RAIL SPACER REAR RH (w/o Curtain Shield Airbag)
Fig 24: Removing Headlining Fasteners
G04224803Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
