Floor Shift Assembly: Removal

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.
  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
  2. REMOVE CONSOLE UPPER FRONT PANEL SUBASSEMBLY (See  REMOVAL  )
  3. REMOVE CONSOLE UPPER REAR PANEL SUBASSEMBLY (See  REMOVAL  )
  4. REMOVE REAR CONSOLE BOX ASSEMBLY (See  REMOVAL  )
  5. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY
    1. Remove the knob.

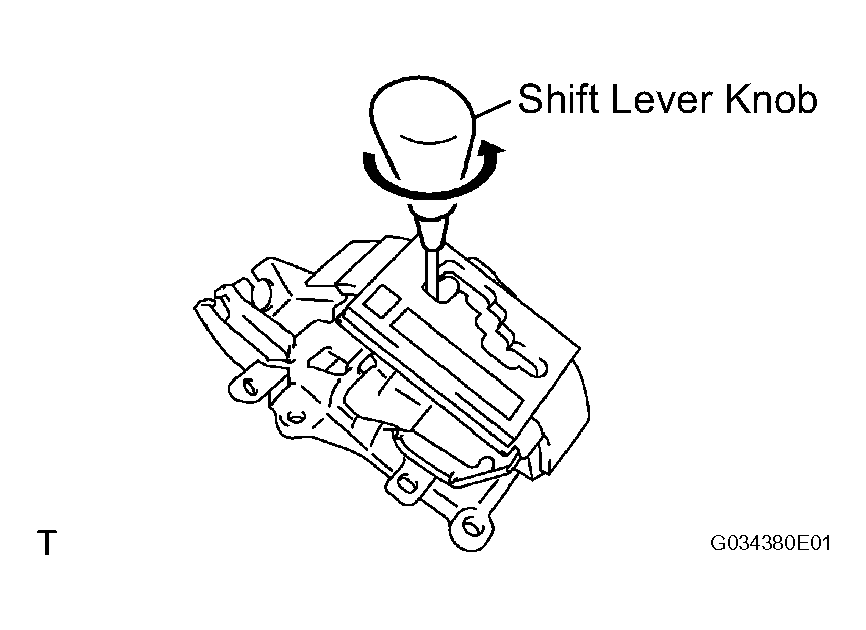

    Fig 1: Removing Knob
    G04222298Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. DISCONNECT TRANSMISSION CONTROL CABLE ASSEMBLY
    1. Disconnect the cable from the floor shift.

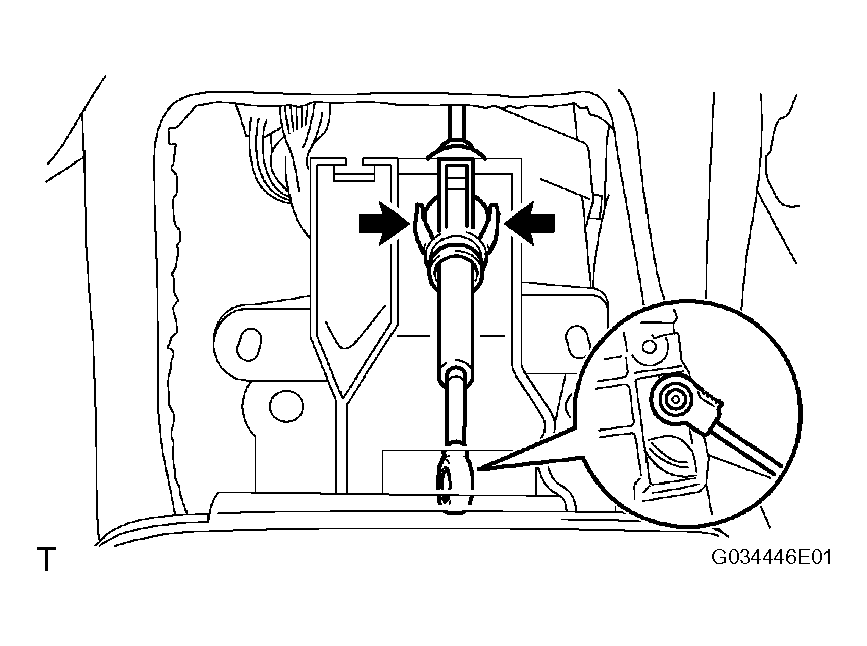

    Fig 2: Disconnecting Cable From Floor Shift
    G04222299Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE SHIFT LEVER ASSEMBLY
    1. Disconnect the shift lock control ECU connector.

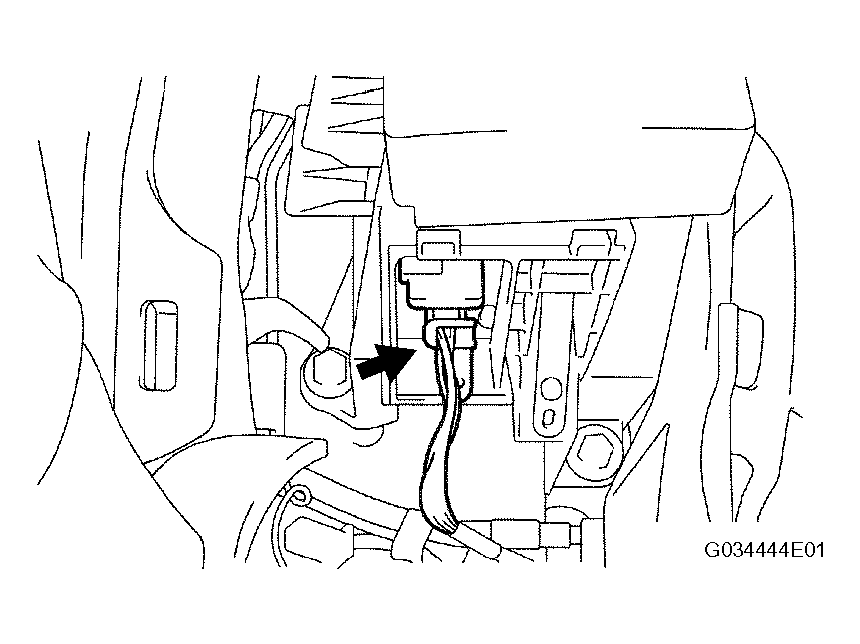

      Fig 3: Disconnecting Shift Lock Control ECU Connector
      G04222300Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 4 bolts and floor shift assembly.

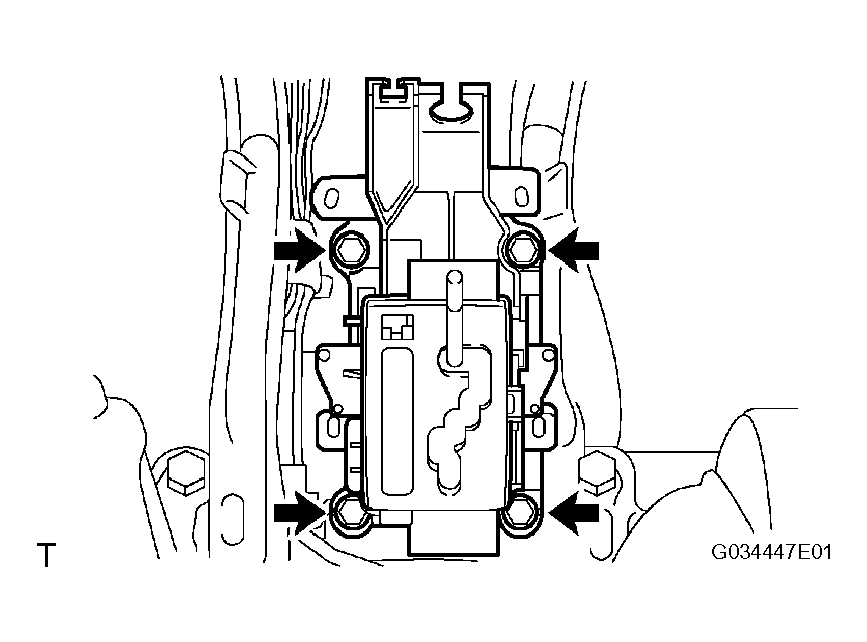

    Fig 4: Removing 4 Bolts And Floor Shift Assembly
    G04222301Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
