Lower Instrument Panel: Removal

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.
  1. TABLE OF BOLT, SCREW AND NUT

    HINT:

    All bolts, screws and nuts relevant to installing and removing the instrument panel are shown along with their alphabet code in the table below.

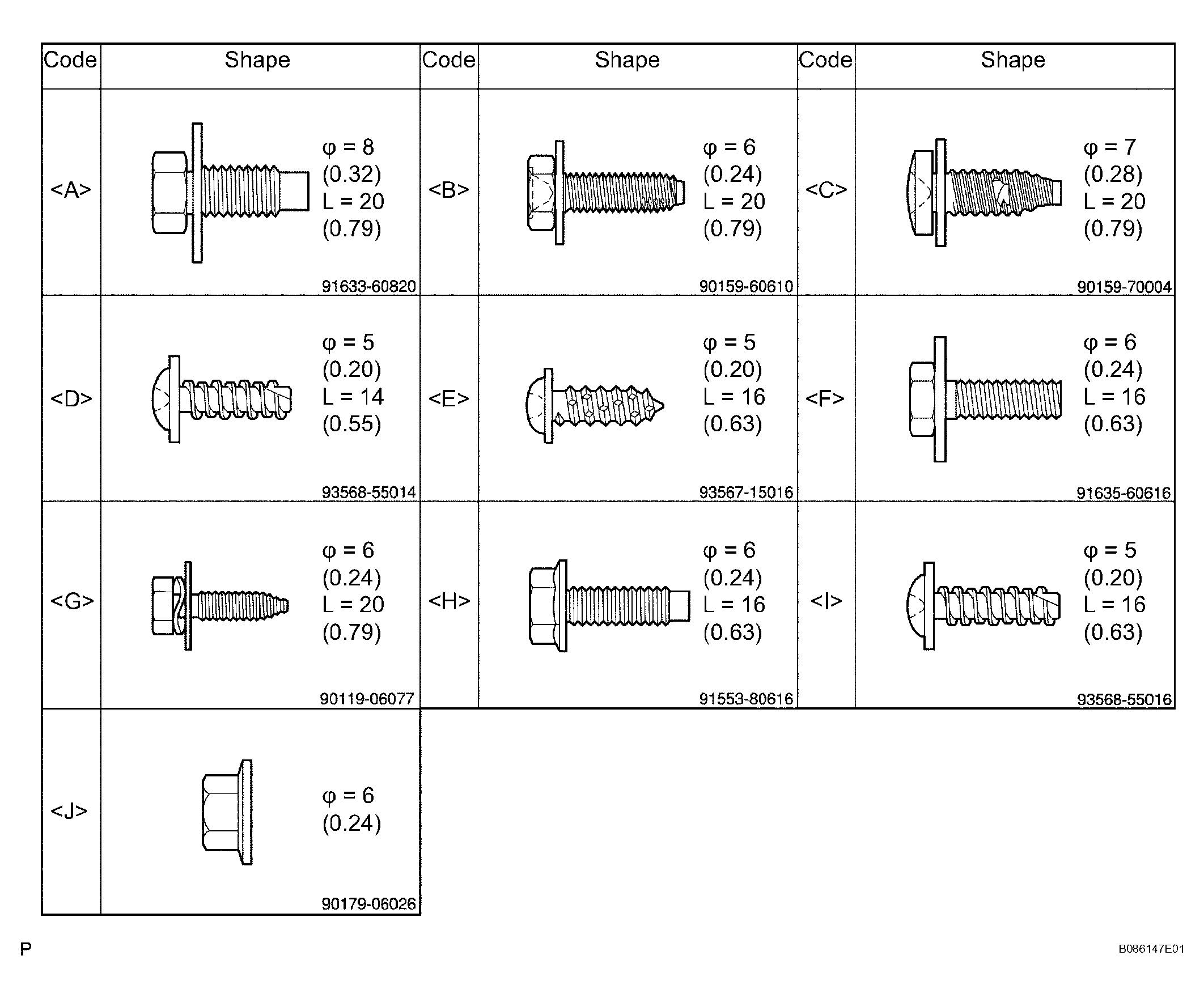

    Fig 1: Bolt, Screw And Nuts Specifications Chart
    G04224540Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
  3. REMOVE UPPER INSTRUMENT PANEL SUBASSEMBLY
    1. Remove the upper instrument panel (see UPPER INSTRUMENT PANEL  ).
  4. REMOVE STEERING WHEEL PAD ASSEMBLY (See  REMOVAL  )
  5. REMOVE STEERING WHEEL ASSEMBLY (See  REMOVAL  )
  6. REMOVE STEERING COLUMN COVER (See  REMOVAL  )
  7. REMOVE HEADLIGHT DIMMER SWITCH ASSEMBLY (See  REMOVAL  )
  8. REMOVE WINDSHIELD WIPER SWITCH ASSEMBLY (See  REMOVAL  )
  9. REMOVE CONSOLE UPPER REAR PANEL SUBASSEMBLY
    1. Detach the 7 claws and remove the console upper rear panel.

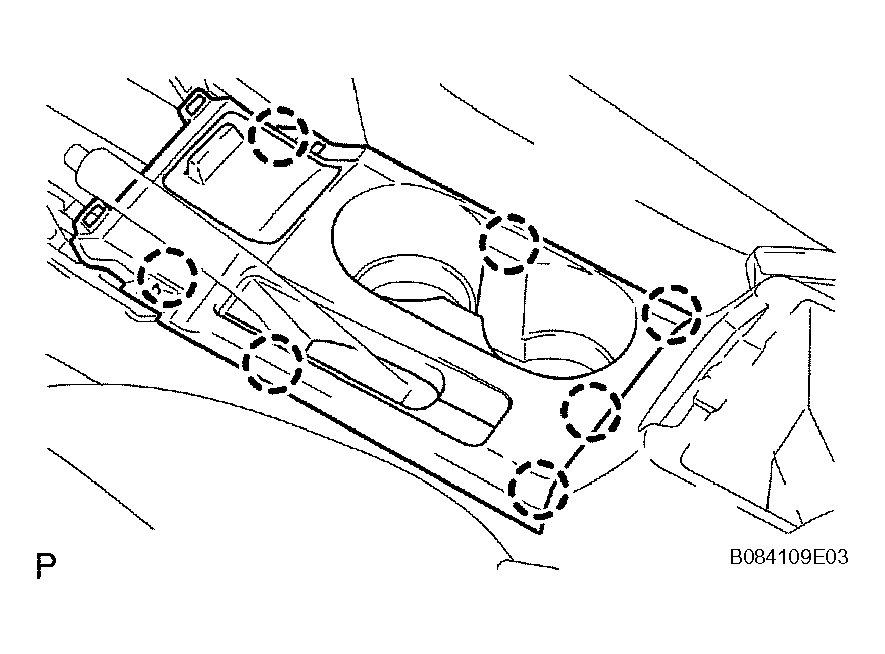

    Fig 2: Detaching Console Upper Rear Panel Claws
    G04224541Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE REAR CONSOLE BOX ASSEMBLY
    1. Disconnect the connector.
    2. Remove the console box carpet.

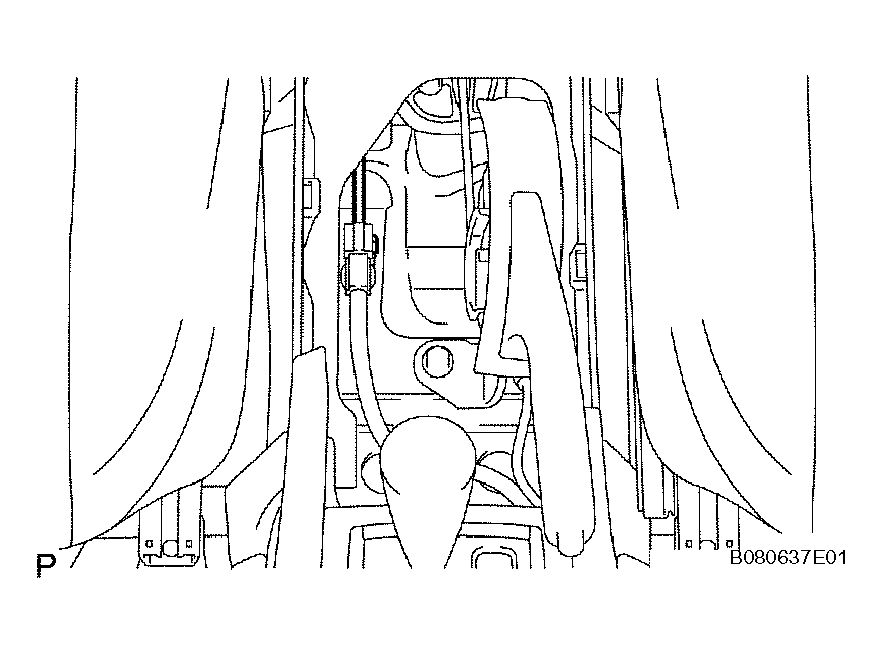

      Fig 3: Disconnecting Rear Console Box Connector
      G04224542Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Manual transaxle:

      Remove the 2 screws.

    4. Automatic transaxle:

      Remove the 4 screws.

    5. Remove the 2 bolts.
    6. Remove the clamp and console box, and disconnect the connector.
  11. REMOVE DRIVER SIDE KNEE AIRBAG ASSEMBLY
    1. Remove the driver side knee airbag (see REMOVAL ).

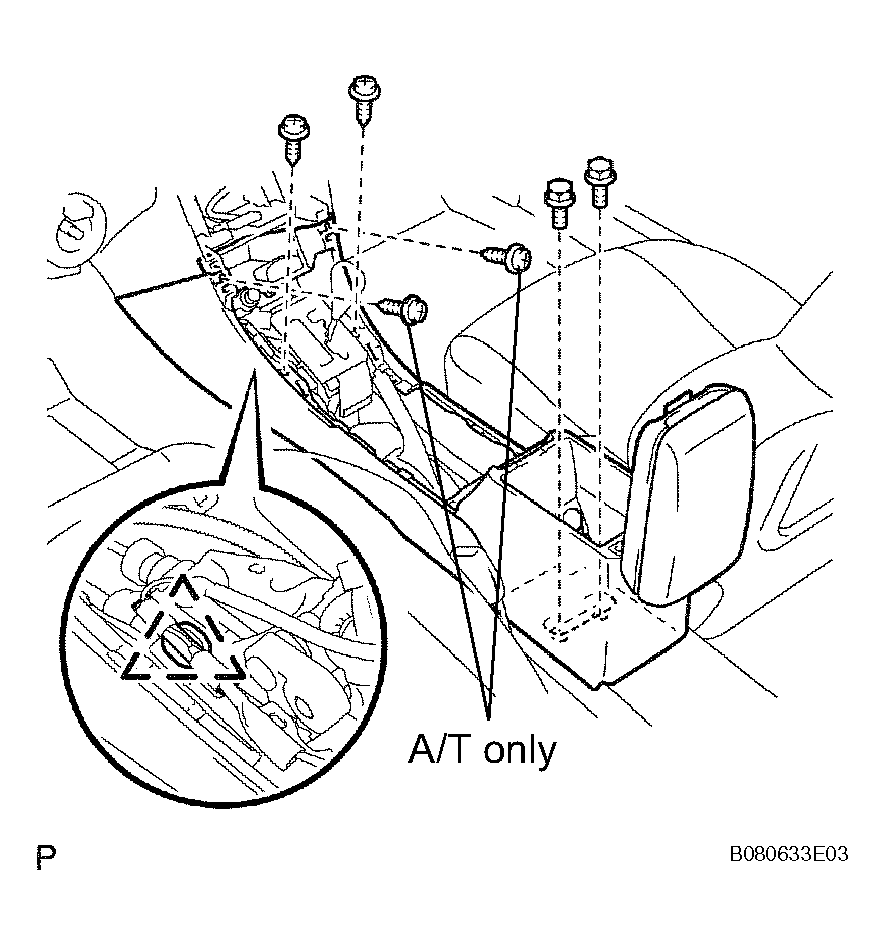

    Fig 4: Removing Rear Console Box Screws (A/T And M/T)
    G04224543Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
    1. Detach the 2 claws.
    2. Remove the instrument panel under cover, as shown in the illustration.

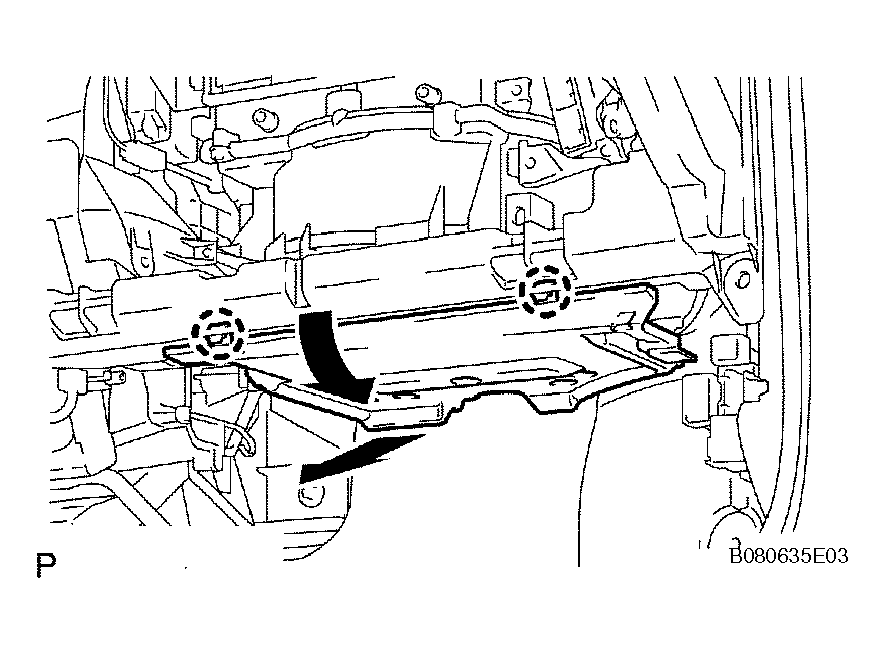

    Fig 5: Removing No. 1 Instrument Panel Under Cover Sub-Assembly
    G04224544Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE FRONT DOOR SCUFF PLATE LH
    1. Detach the 12 claws and remove the front door scuff plate.
  14. REMOVE FRONT DOOR SCUFF PLATE RH

    HINT:

    Use the same procedures for the RH side and LH side.

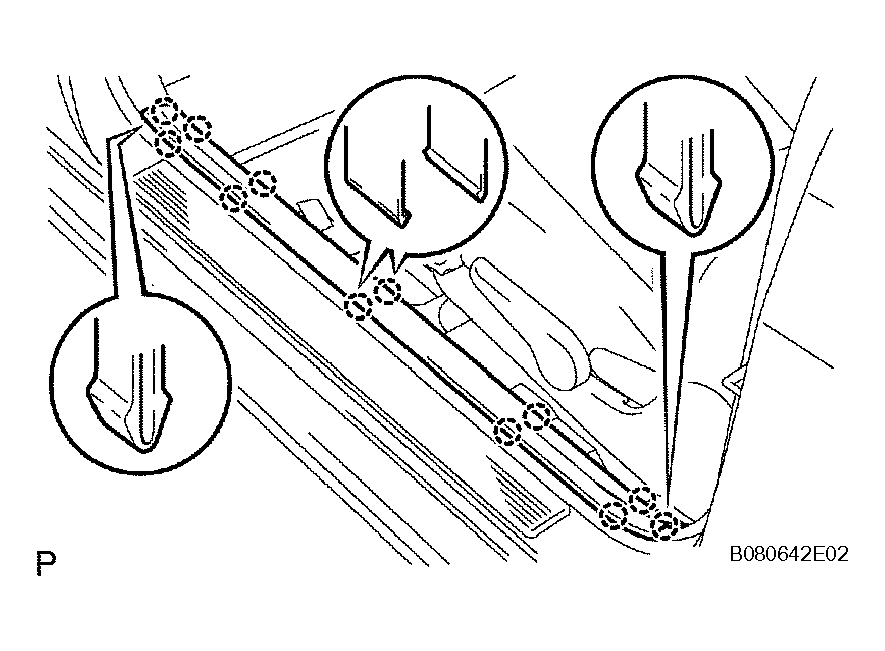

    Fig 6: Removing Front Door Scuff Plate
    G04224545Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE COWL SIDE TRIM SUB-ASSEMBLY LH
    1. Remove the clip.
    2. Remove the 2 clips and cowl side trim.
  16. REMOVE COWL SIDE TRIM SUB-ASSEMBLY RH

    HINT:

    Use the same procedures for the RH side and LH side.

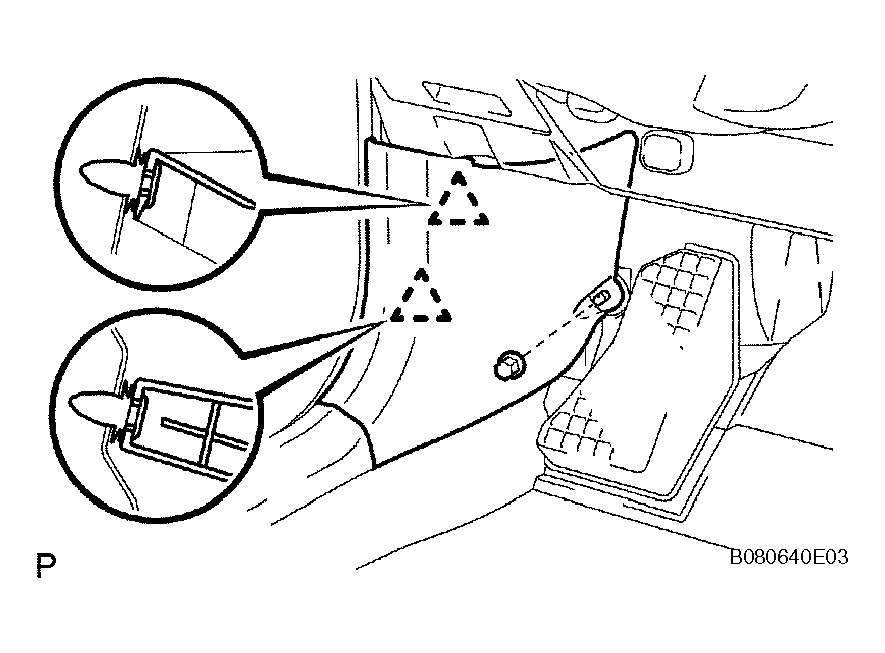

    Fig 7: Removing Cowl Side Trim Clips - LH
    G04224546Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE NO. 2 HEATER TO REGISTER DUCT
    1. Remove the 3 clips, and No. 2 heater to register duct.

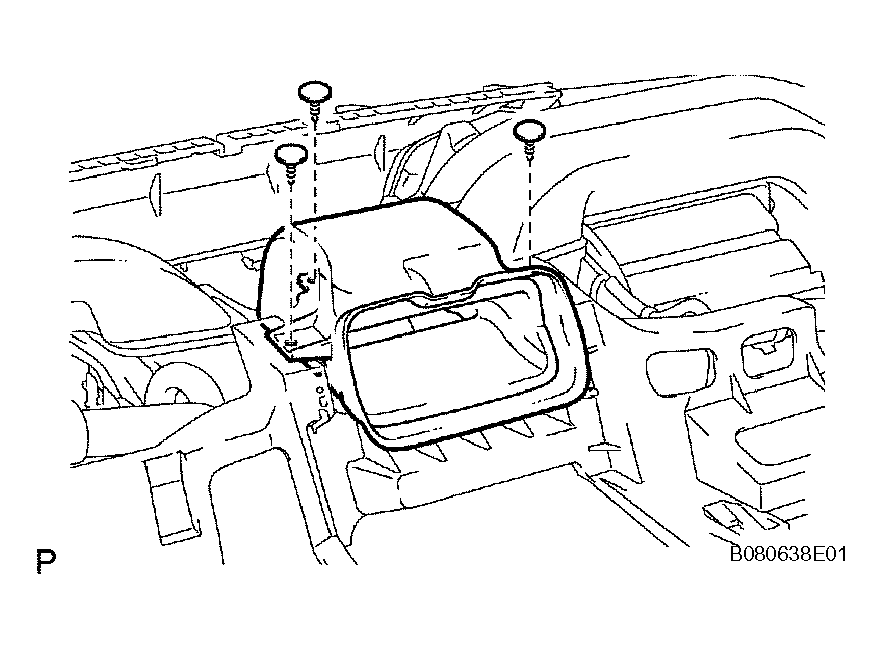

    Fig 8: Removing No. 2 Heater To Register Duct Clips
    G04224547Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE LOWER INSTRUMENT PANEL ASSEMBLY
    1. Disconnect the hood lock control cable.
    2. Remove the 3 screws, 2 bolts and 2 nuts.
    3. Remove the 2 clips.
    4. Detach the 7 wire harness clamps.
    5. Disconnect the 3 connectors.
    6. Pull the instrument panel lower toward the rear of the vehicle, and check that the wire harnesses are not caught, and then remove the instrument panel lower.

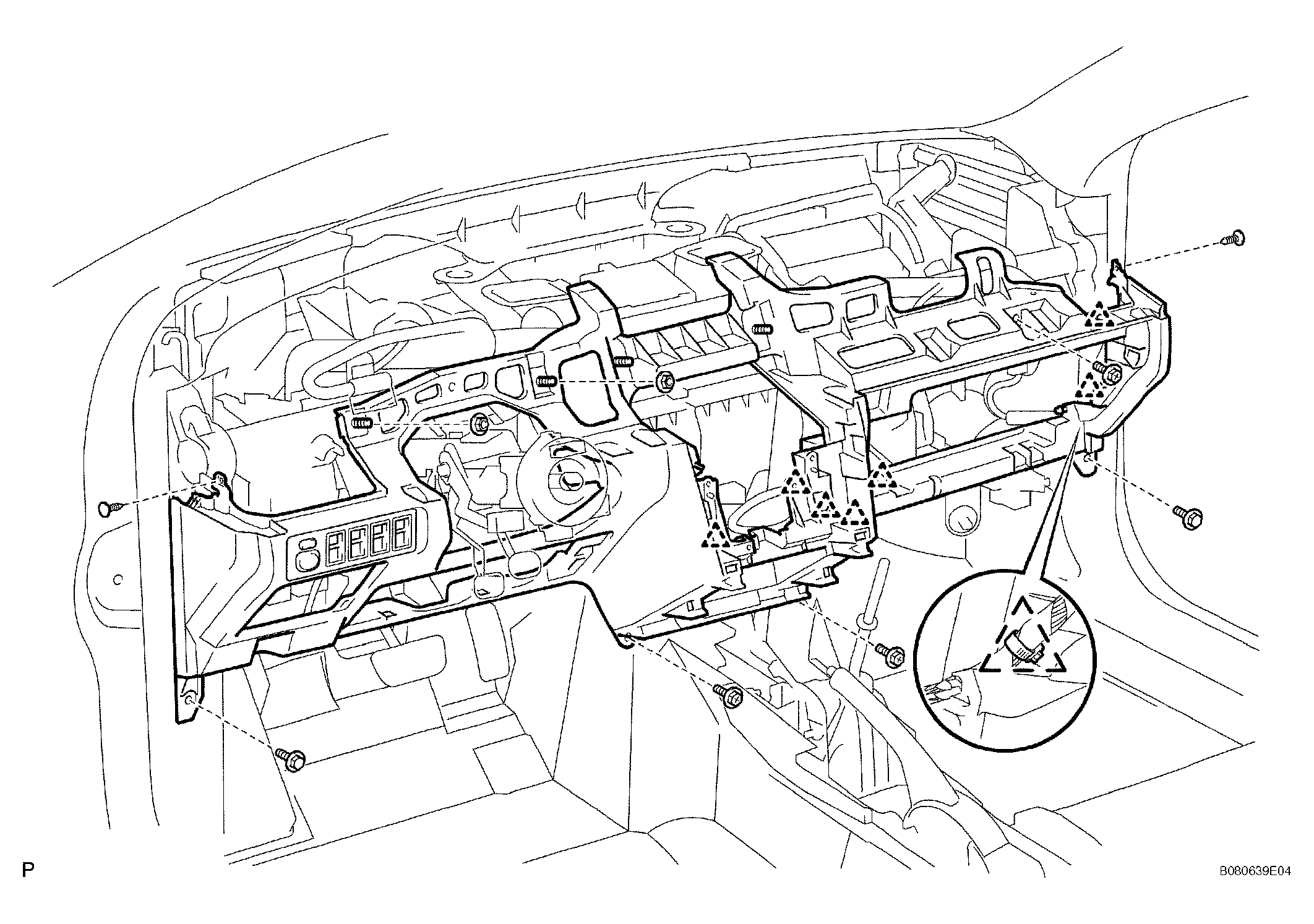

Fig 9: Removing Lower Instrument Panel Assembly
G04224548Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
