Headlight Dimmer Switch: Removal

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
REMOVE STEERING COLUMN COVER (See REMOVAL )
REMOVE HEADLIGHT DIMMER SWITCH ASSEMBLY
1. Disconnect the connector.
2. Detach the claw and remove the headlight dimmer switch.
  NOTE: Do not push the claw strongly, otherwise it will be damaged.

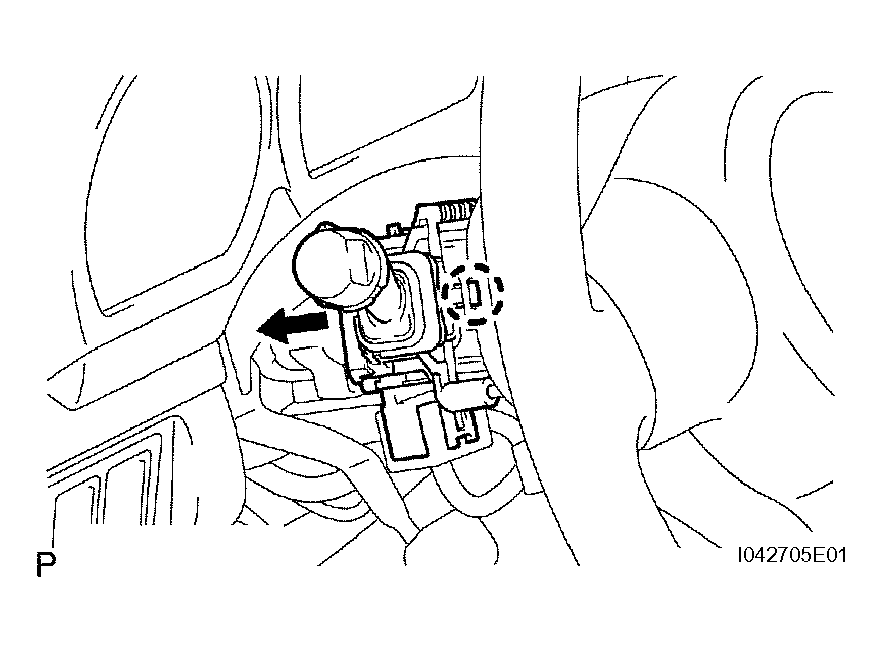

Fig 1: Detaching Claw
