AV Communication Line Check (Between Display Control Unit and NAVI Control Unit)

WARNING: This page is about a different car, the 2004 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

CHECK POWER SUPPLY AND GROUND CIRCUIT
1. Check power supply and ground circuit for NAVI control unit. Refer to POWER SUPPLY AND GROUND CIRCUIT CHECK FOR NAVI CONTROL UNIT .
OK or NG
1. OK: GO TO 2.
2. NG: Check the malfunctioning parts.

CHECK HARNESS

Turn ignition switch OFF
Disconnect NAVI control unit connector and display control unit connector.

Check continuity between NAVI control unit and display control unit.

CONNECTOR TERMINALS CONTINUITY

Terminals				Continuity
NAVI control unit (+)		Display control unit (-)
Connector	Terminal (Wire color)	Connector	Terminal (Wire color)
B152	44 (L)	M95	32 (L)	Yes
	45 (P)		34 (P)

Check continuity between NAVI control unit and around.

CONNECTOR TERMINALS CONTINUITY

Terminals			Continuity
NAV control unit(+)		(-)
Connector	Terminal (Wire color)
B152	44 (L)	Ground	No
	45 (P)

OK or NG

OK: GO TO 3.
NG: Repair harness or connector.

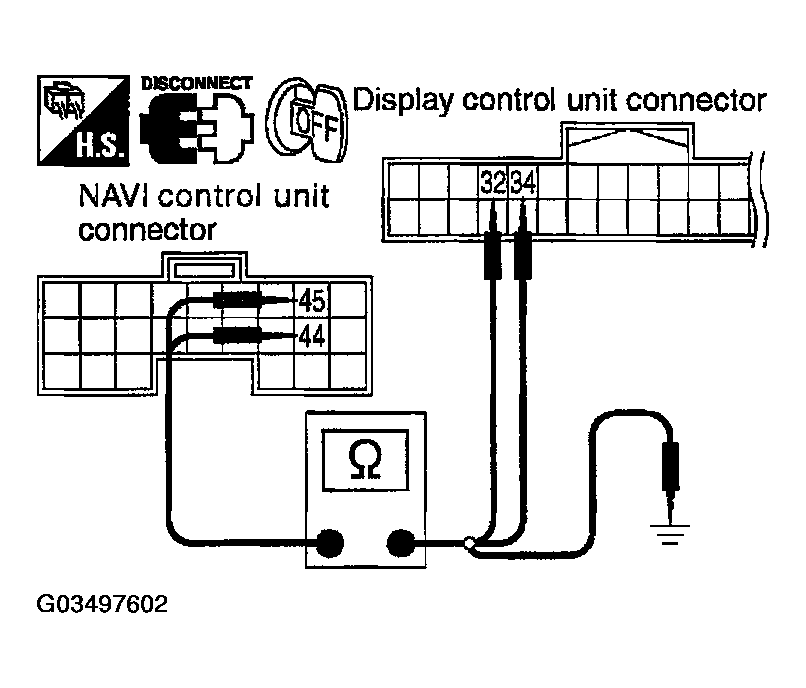

Fig 1: Checking Continuity Between NAVI Control Unit And Ground

Courtesy of NISSAN MOTOR CO., U.S.A.

CHECK AV COMMUNICATION SIGNAL
1. Connect NAVI control unit connector and display control unit connector.
2. Turn ignition switch ON.
3. Check signal between NAVI control unit harness connector B152 terminal 44 (L) and 45 (P) with CONSULT-II or oscilloscope.
  1. 44 (L), 45 (P) - Ground: Refer to TERMINALS AND REFERENCE VALUE FOR NAVI CONTROL UNIT .

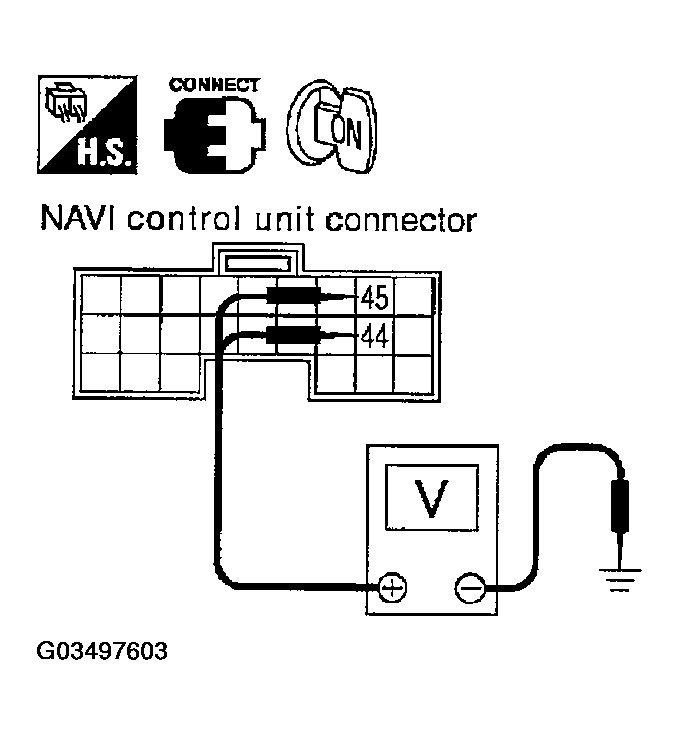

  Fig 2: Checking Signal Between NAVI Control Unit Harness Connector B152 Terminal 44 (L) And 45 (P)
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
1. OK: Replace display control unit. Refer to REMOVAL AND INSTALLATION OF DISPLAY CONTROL UNIT .
2. NG: Replace NAVI control unit. Refer to REMOVAL AND INSTALLATION OF NAVI CONTROL UNIT .
