Removal and Installation of NAVI Control Unit

WARNING: This page is about a different car, the 2004 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: To avoid damage, eject map DVD-ROM before removing the NAVI control unit.

Remove front seat RH. Refer to FRONT SEAT .
Remove NAVI control unit kick shield.

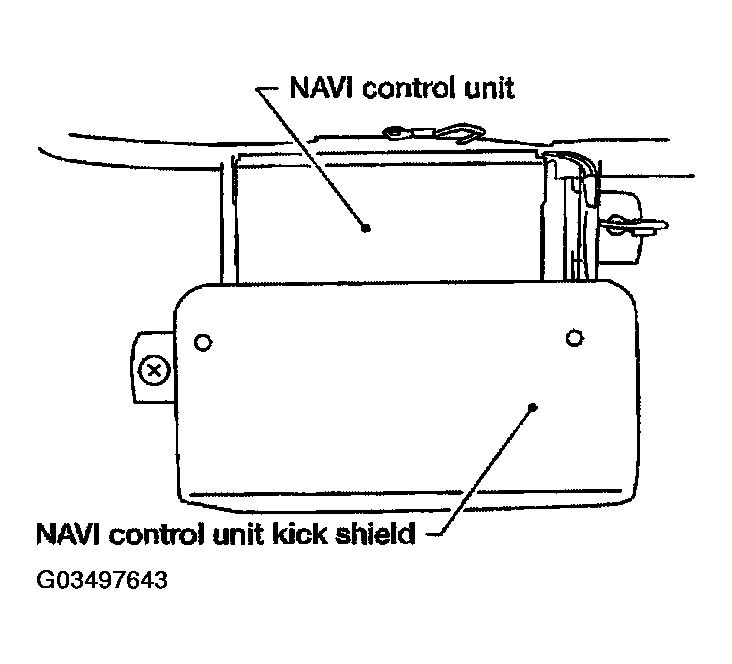

Fig 1: Identifying NAVI Control Unit Kick Shield
Courtesy of NISSAN MOTOR CO., U.S.A.
Disconnect connectors.
Remove screws and remove NAVI control unit.
Remove screws and brackets from NAVI control unit.
Installation is in the reverse order of removal.

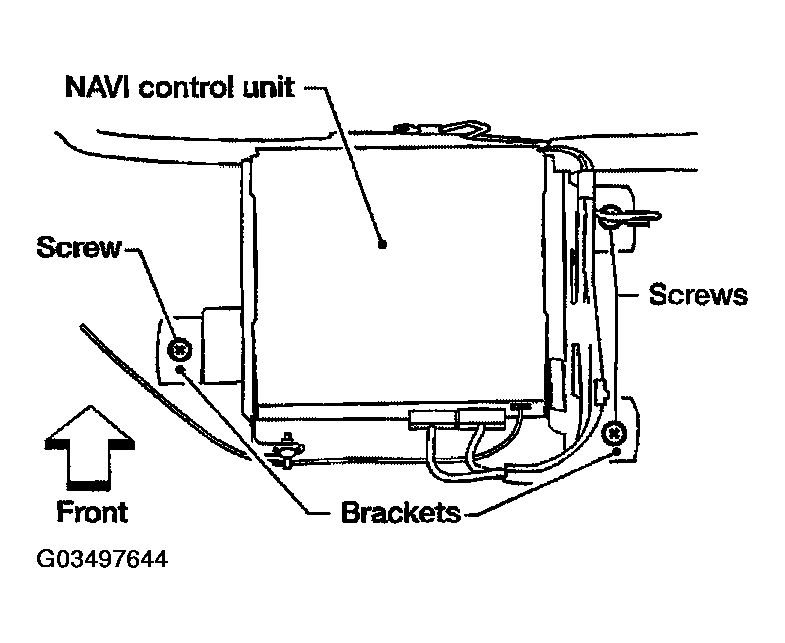

Fig 2: Identifying NAVI Control Unit
Courtesy of NISSAN MOTOR CO., U.S.A.
