Terminals and Reference Value for NAVI Control unit
WARNING: This page is about a different car, the 2004 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

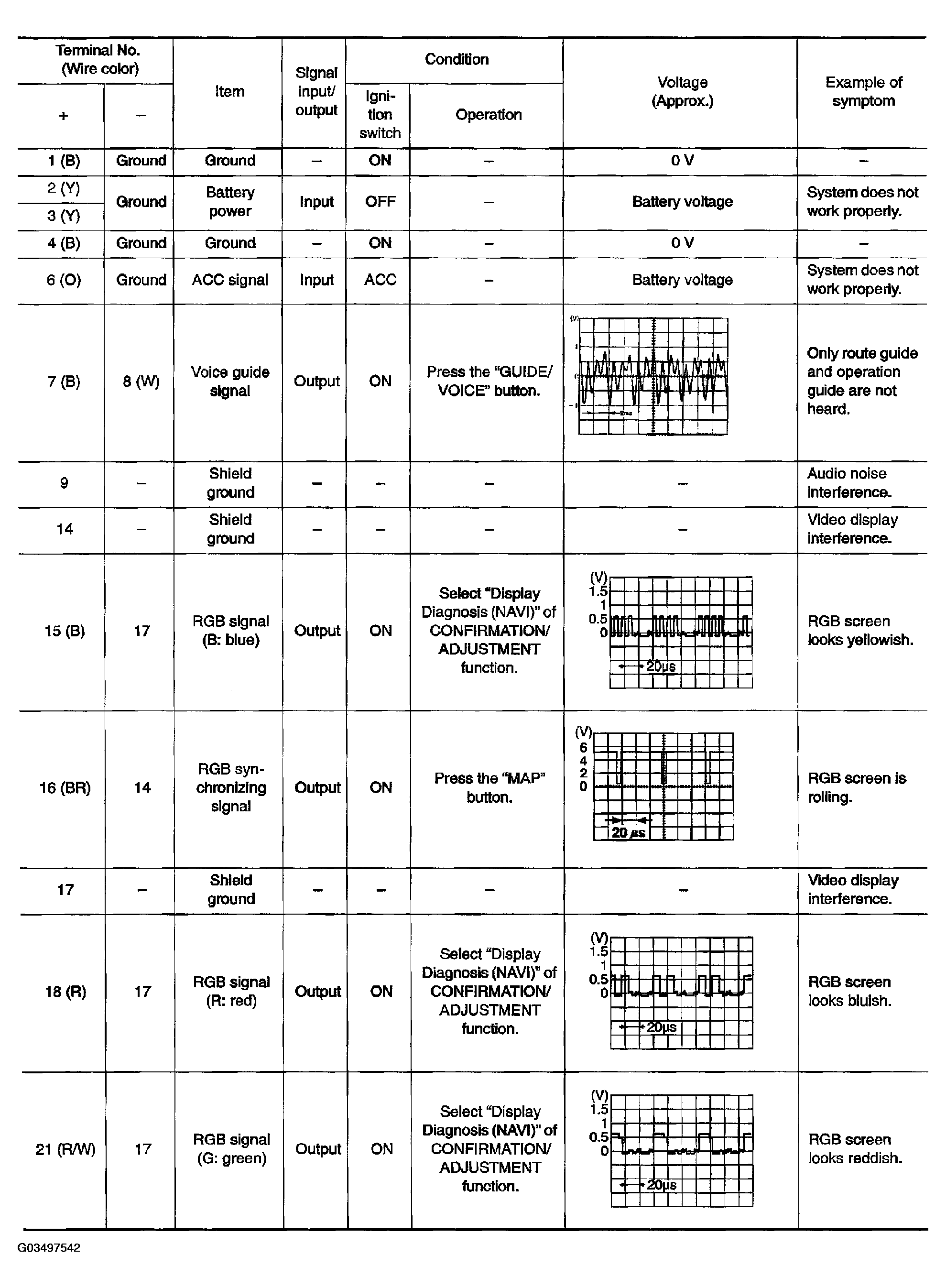

Fig 1: Terminals And Reference Value For NAVI Control Unit Chart (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

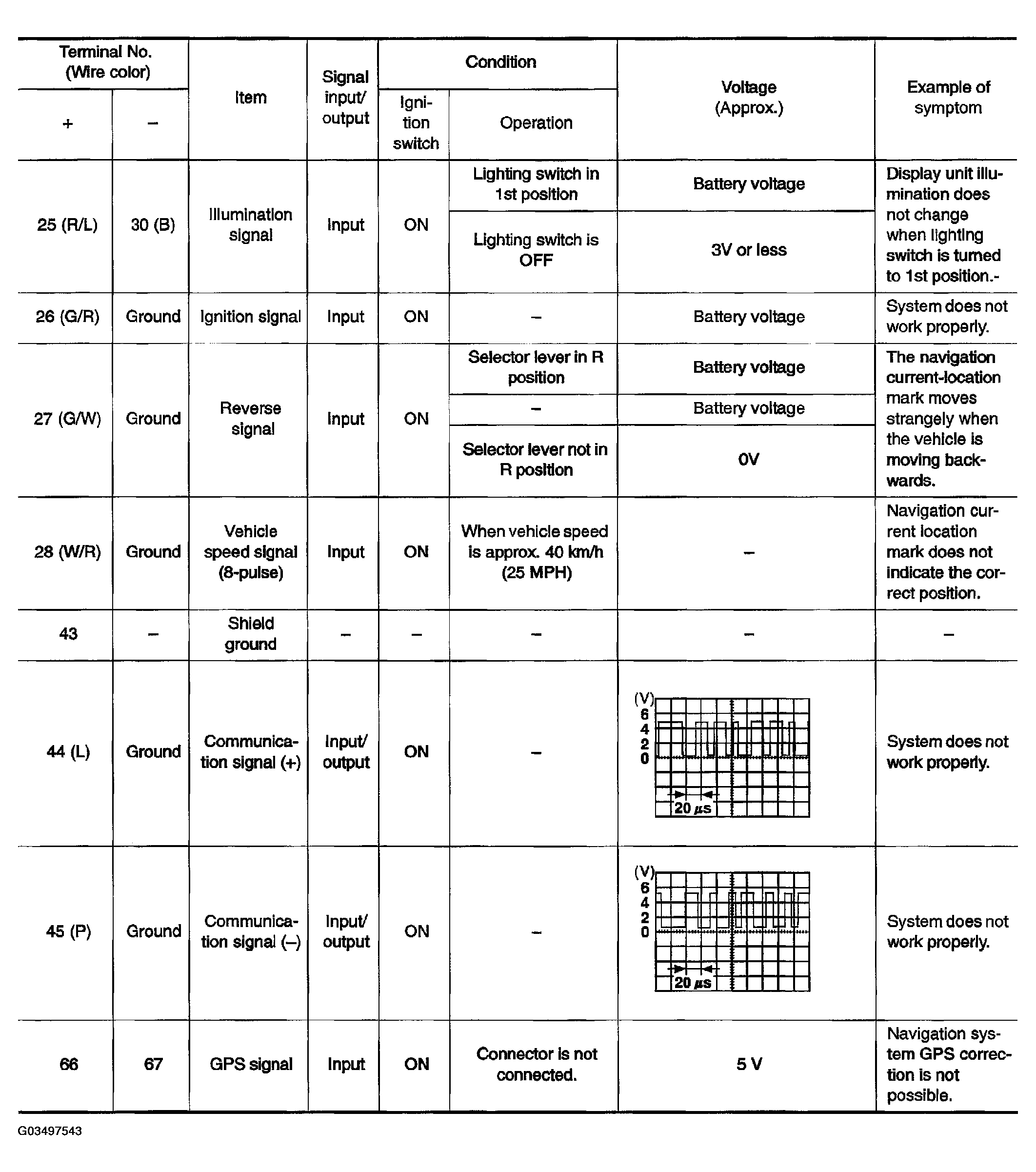

Fig 2: Terminals And Reference Value For NAVI Control Unit Chart (2 Of 2)
