Check Sheet Results (Example)

NOTE: If "NG" is displayed on "INITIAL DIAG (Initial diagnosis)" as "CAN DIAG SUPPORT MNTR" for the diagnosed control unit, replace the control unit.

Case 1

Replace ECM.

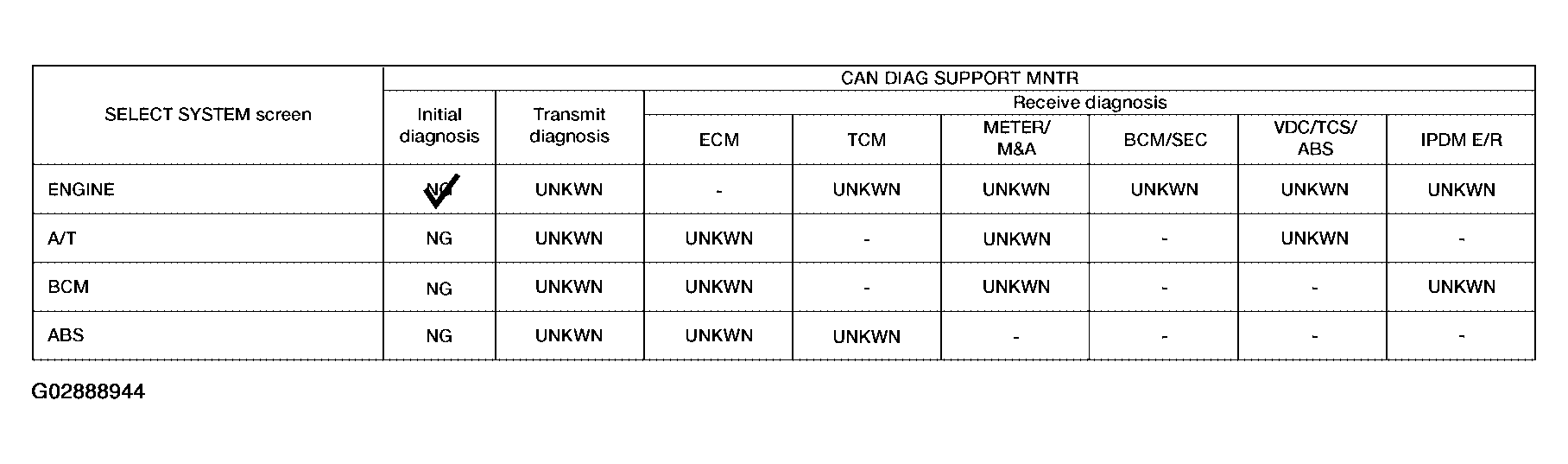

Fig 1: Check Sheet Results Case 1 (1 Of 2)
G02888944Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 2: Check Sheet Results Case 1 (2 Of 2)
G02888945Courtesy of NISSAN MOTOR CO., U.S.A.

Case 2

Replace TCM.

Fig 3: Check Sheet Results Case 2 (1 Of 2)
G02888946Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 4: Check Sheet Results Case 2 (2 Of 2)
G02888947Courtesy of NISSAN MOTOR CO., U.S.A.

Case 3

Replace BCM.

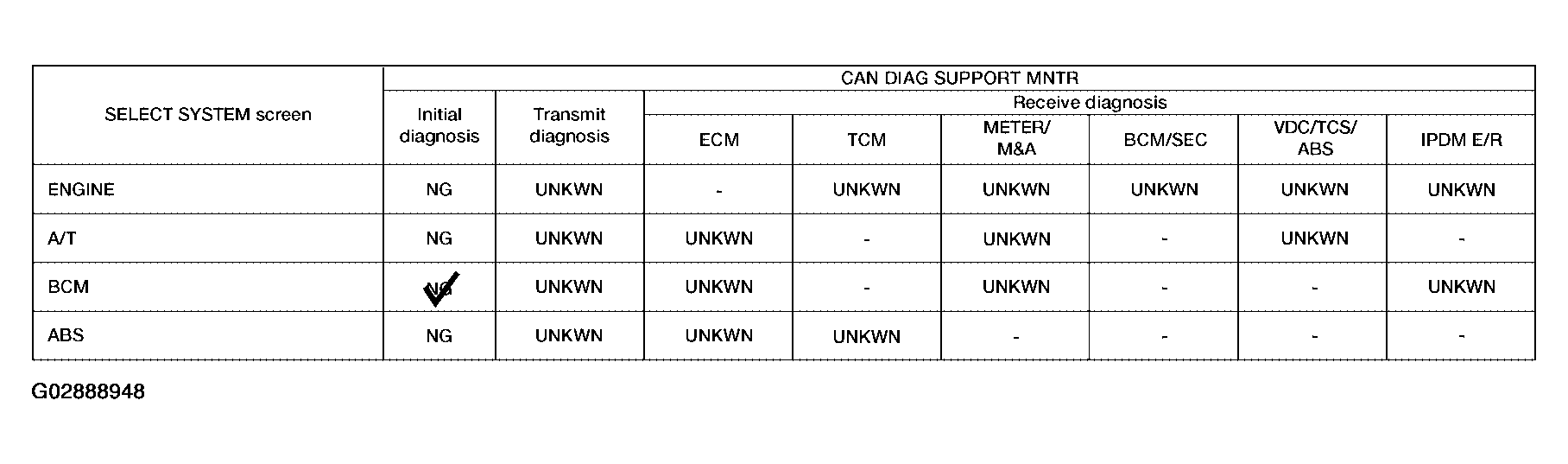

Fig 5: Check Sheet Results Case 3 (1 Of 2)
G02888948Courtesy of NISSAN MOTOR CO., U.S.A.

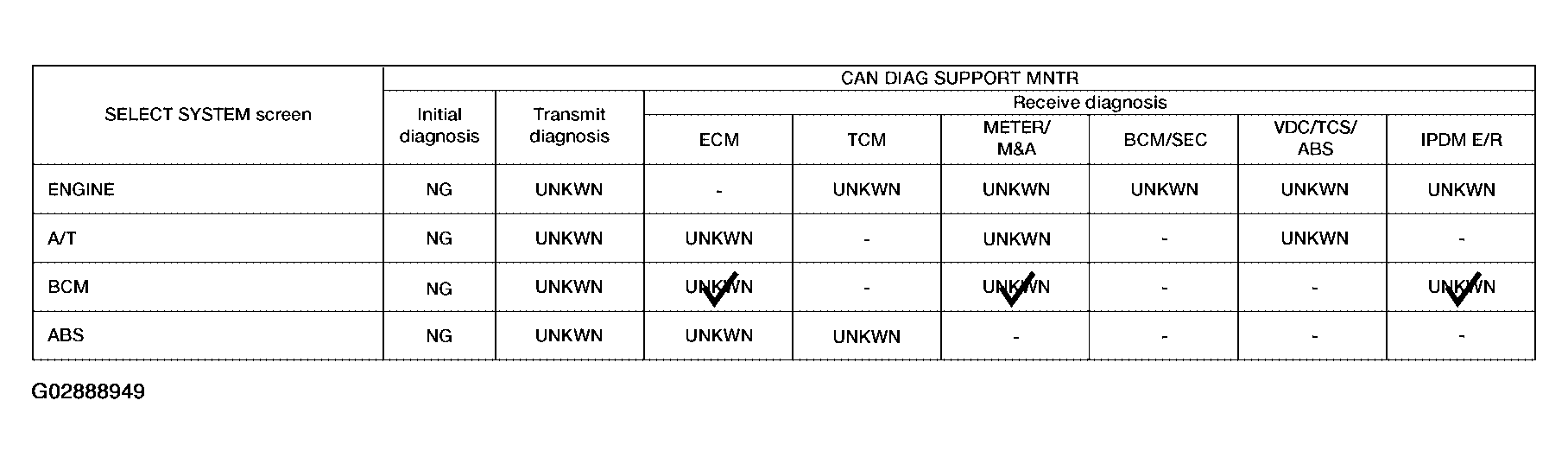

Fig 6: Check Sheet Results Case 3 (2 Of 2)
G02888949Courtesy of NISSAN MOTOR CO., U.S.A.

Case 4

Replace ABS actuator and electric unit (control unit).

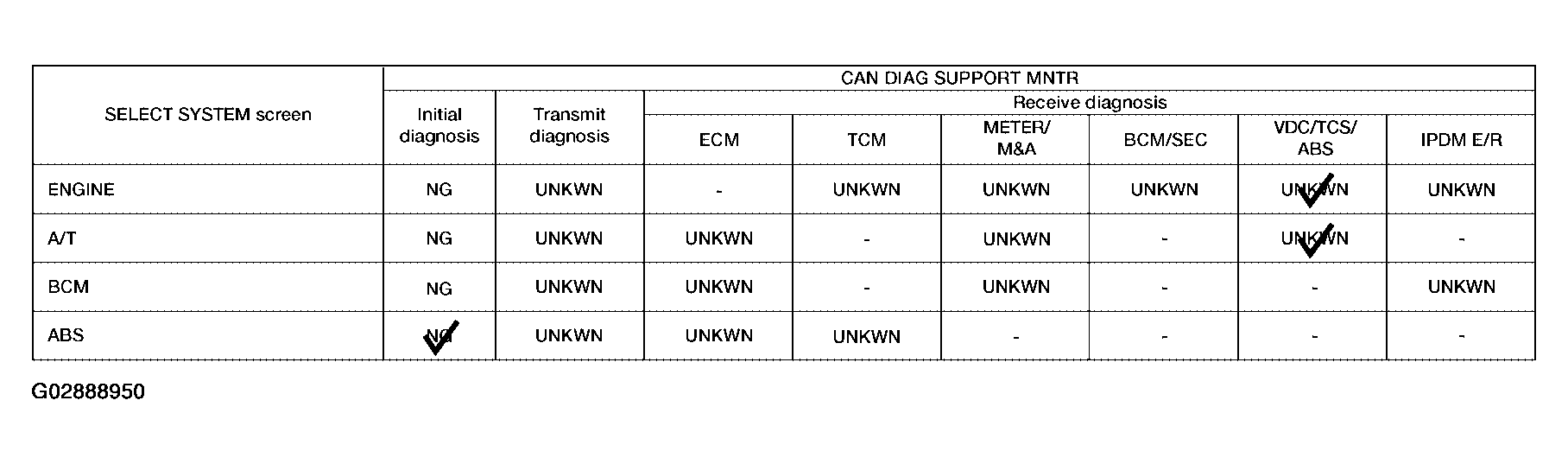

Fig 7: Check Sheet Results Case 3 (1 Of 2)
G02888950Courtesy of NISSAN MOTOR CO., U.S.A.

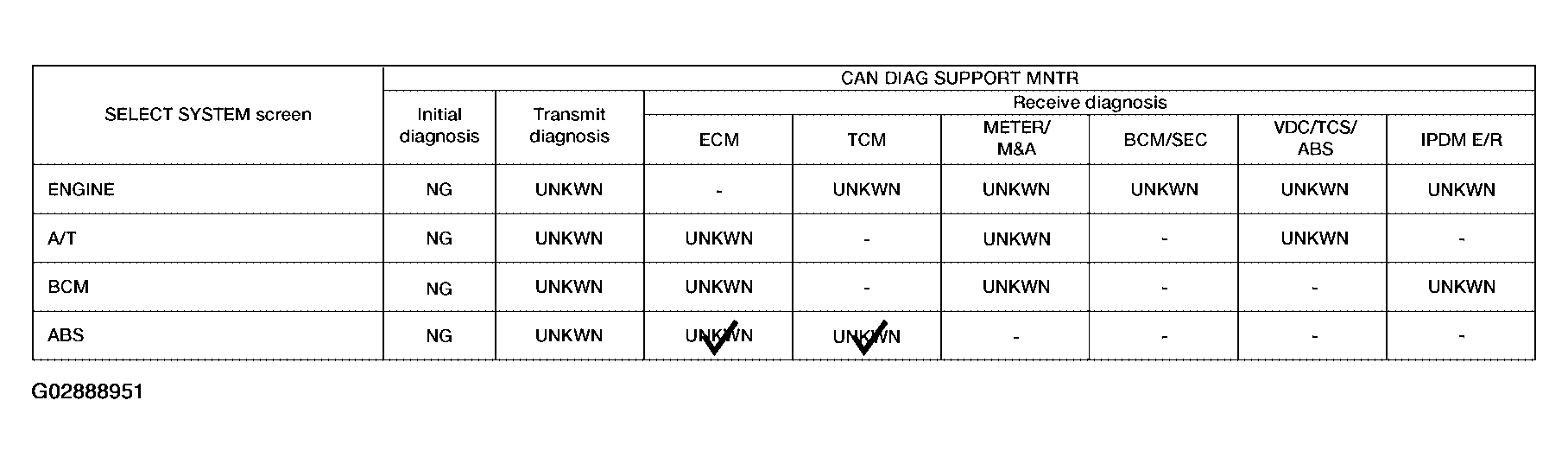

Fig 8: Check Sheet Results Case 3 (2 Of 2)
G02888951Courtesy of NISSAN MOTOR CO., U.S.A.

Case 5

Check harness between TCM and combination meter. Refer to "CIRCUIT CHECK BETWEEN TCM AND COMBINATION METER ".

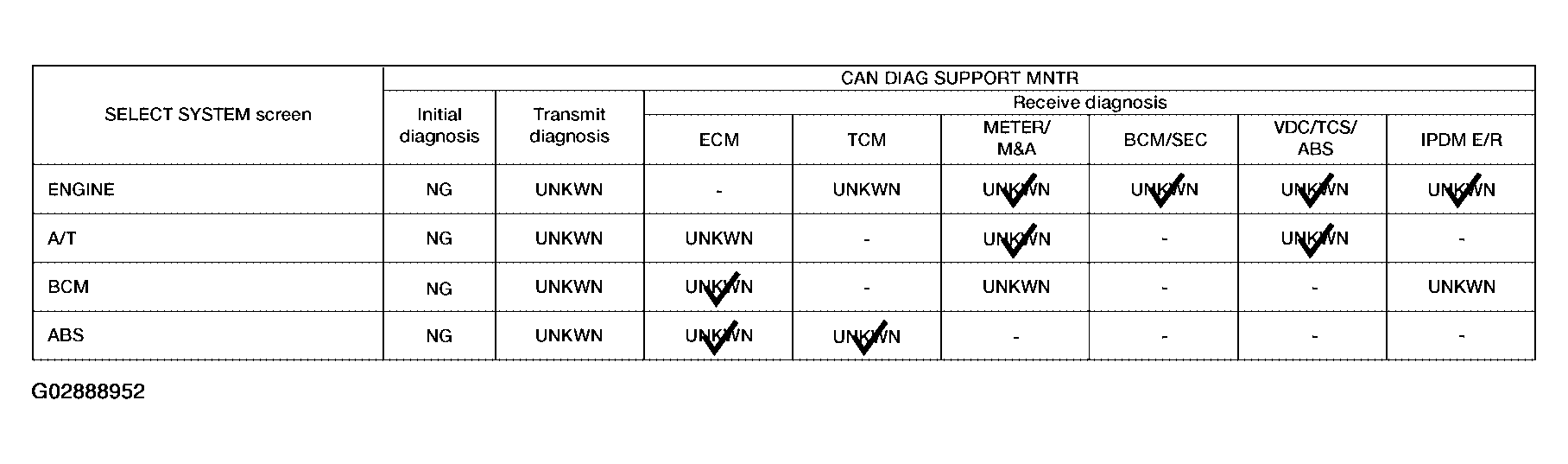

Fig 9: Check Sheet Results Case 5
G02888952Courtesy of NISSAN MOTOR CO., U.S.A.

Case 6

Check harness between combination meter and BCM. Refer to "CIRCUIT CHECK BETWEEN COMBINATION METER AND BCM ".

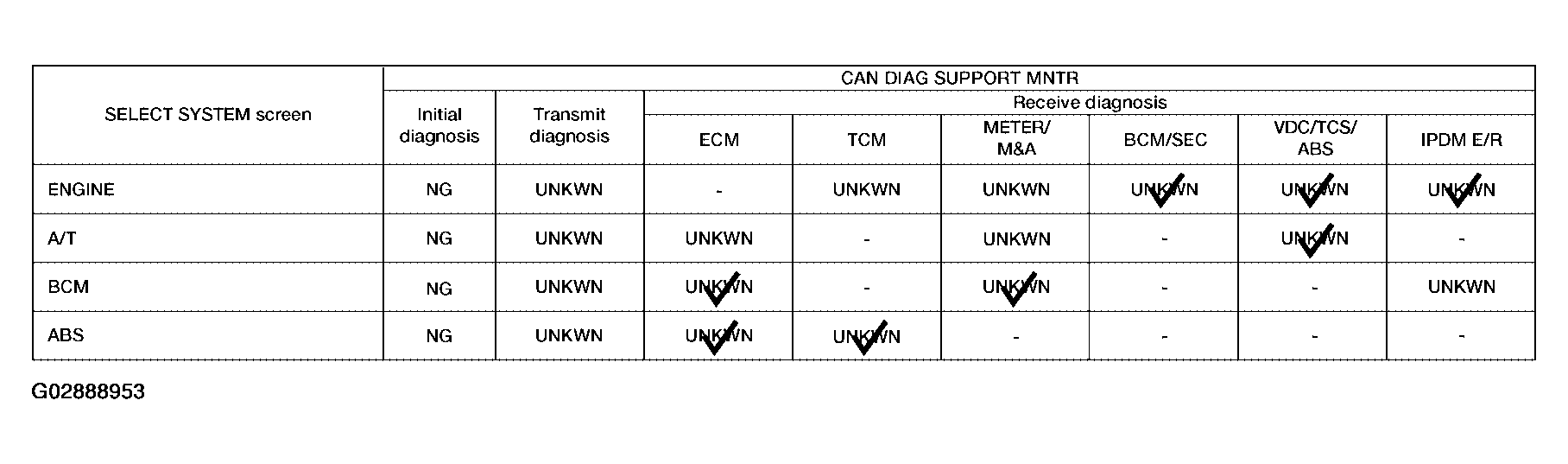

Fig 10: Check Sheet Results Case 6
G02888953Courtesy of NISSAN MOTOR CO., U.S.A.

Case 7

Check harness between BCM and ABS actuator and electric unit (control unit). Refer to "CIRCUIT CHECK BETWEEN BCM AND ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT) ".

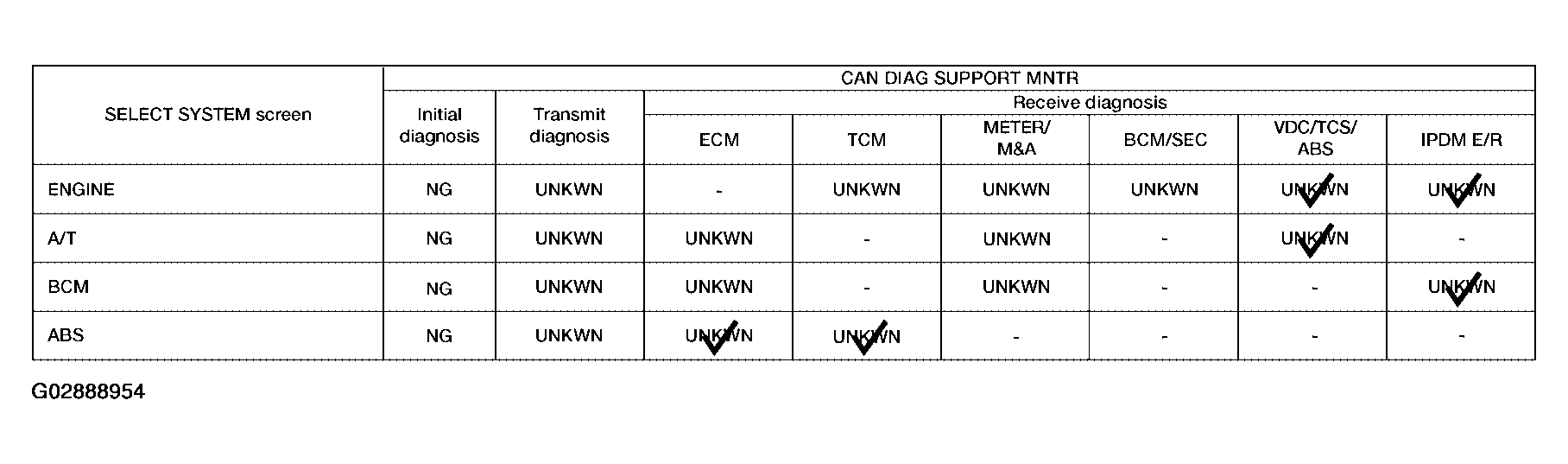

Fig 11: Check Sheet Results Case 7
G02888954Courtesy of NISSAN MOTOR CO., U.S.A.

Case 8

Check ECM circuit. Refer to "ECM CIRCUIT CHECK ".

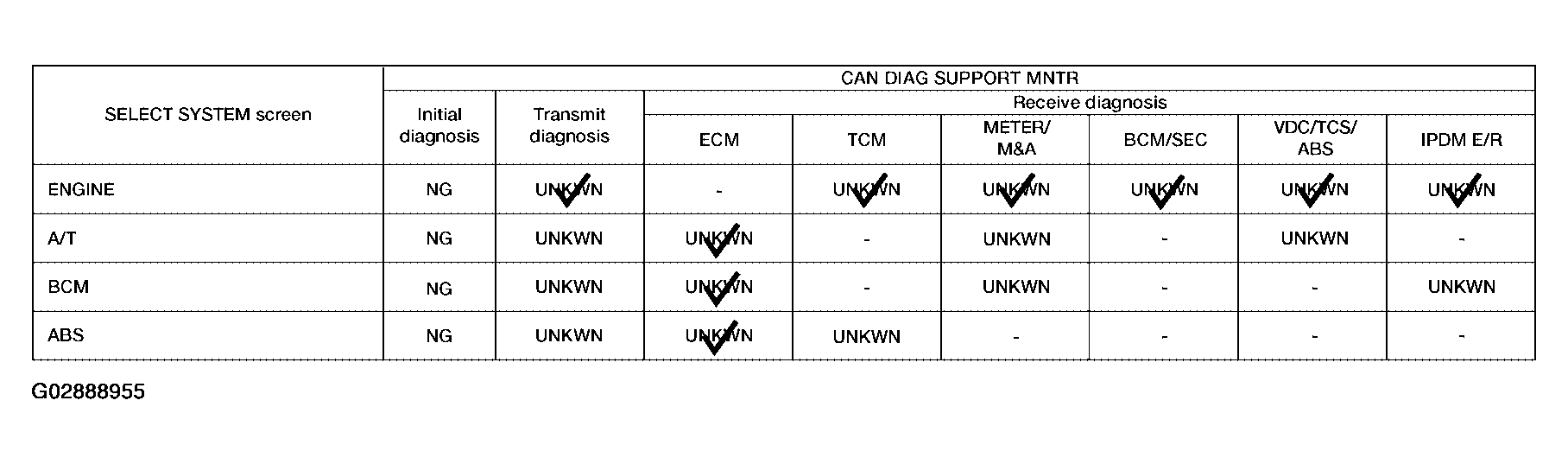

Fig 12: Check Sheet Results Case 8
G02888955Courtesy of NISSAN MOTOR CO., U.S.A.

Case 9

Check TCM circuit. Refer to "TCM CIRCUIT CHECK ".

Fig 13: Check Sheet Results Case 9
G02888956Courtesy of NISSAN MOTOR CO., U.S.A.

Case 10

Check combination meter circuit. Refer to "COMBINATION METER CIRCUIT CHECK ".

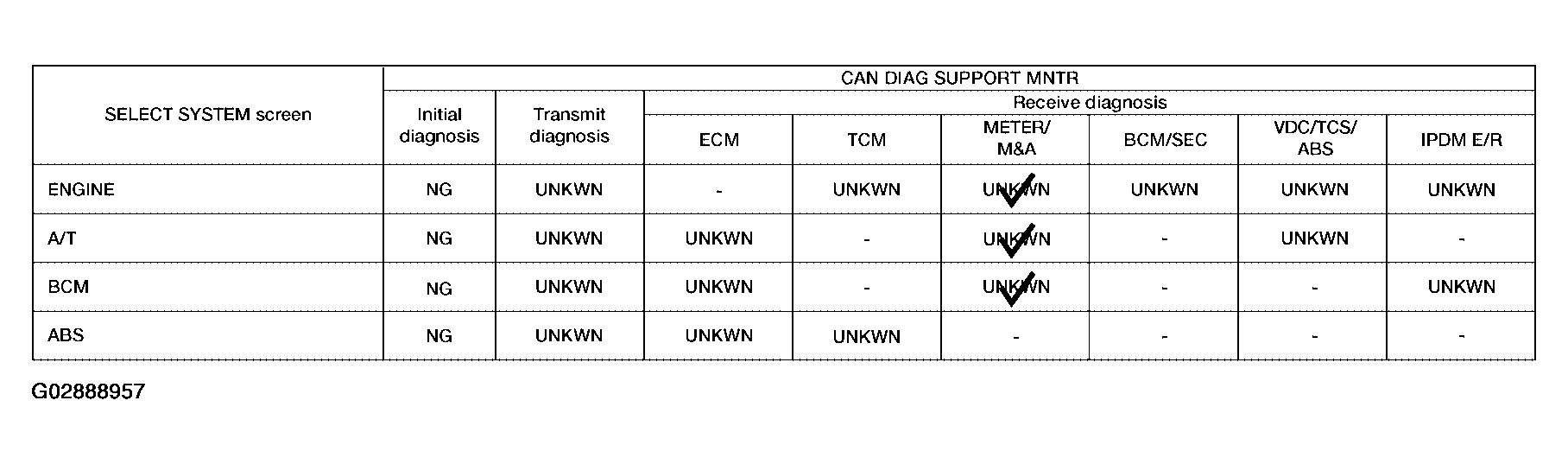

Fig 14: Check Sheet Results Case 10
G02888957Courtesy of NISSAN MOTOR CO., U.S.A.

Case 11

Check BCM circuit. Refer to "BCM CIRCUIT CHECK ".

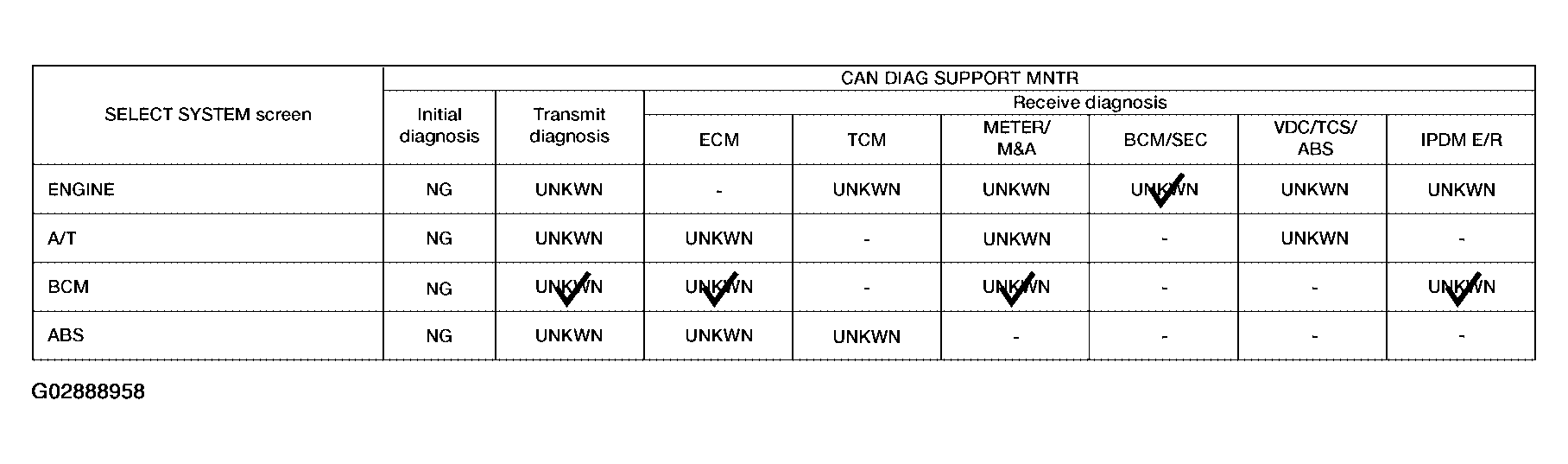

Fig 15: Check Sheet Results Case 11
G02888958Courtesy of NISSAN MOTOR CO., U.S.A.

Case 12

Check ABS actuator and electric unit (control unit) circuit. Refer to "ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT) CIRCUIT CHECK ".

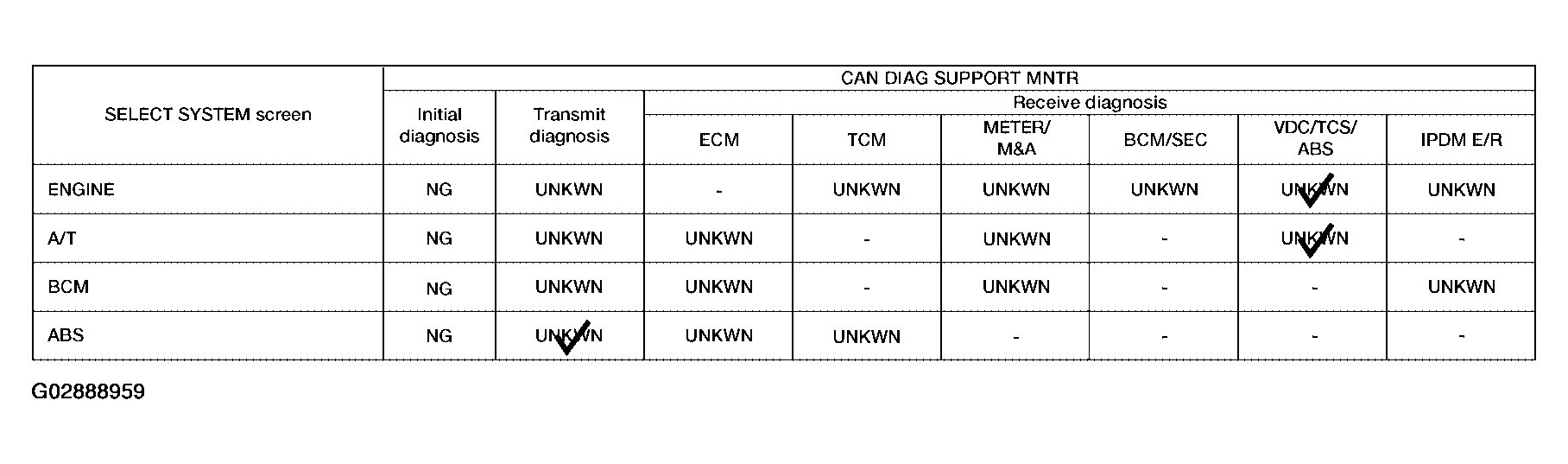

Fig 16: Check Sheet Results Case 12
G02888959Courtesy of NISSAN MOTOR CO., U.S.A.

Case 13

Check IPDM E/R circuit. Refer to "IPDM E/R CIRCUIT CHECK ".

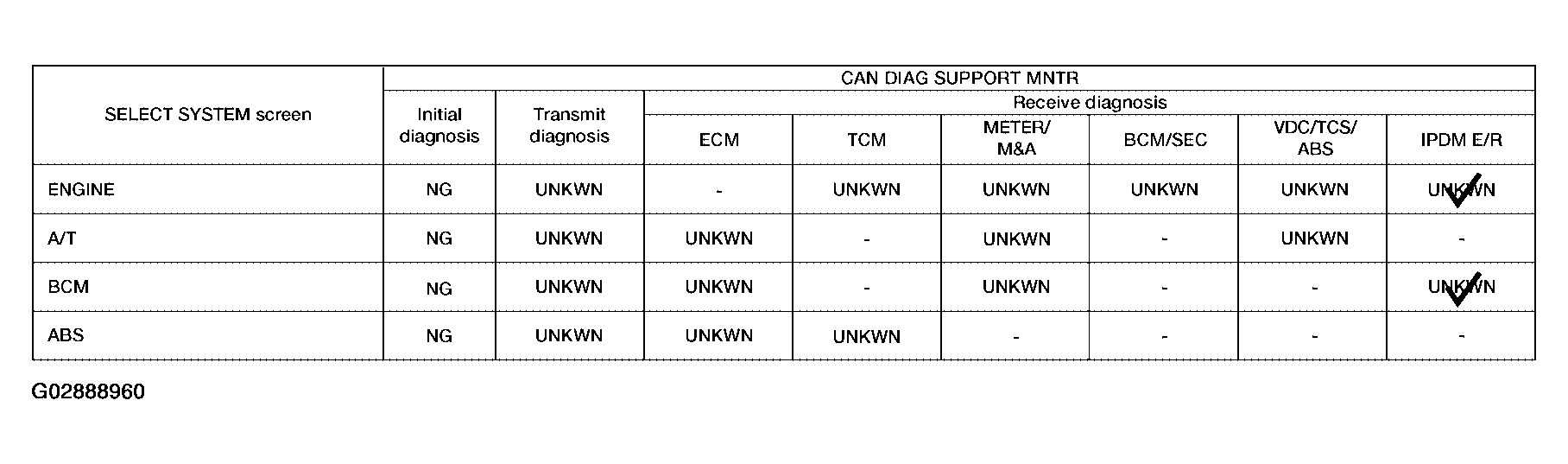

Fig 17: Check Sheet Results Case 13
G02888960Courtesy of NISSAN MOTOR CO., U.S.A.

Case 14

Check CAN communication circuit. Refer to "CAN COMMUNICATION CIRCUIT CHECK ".

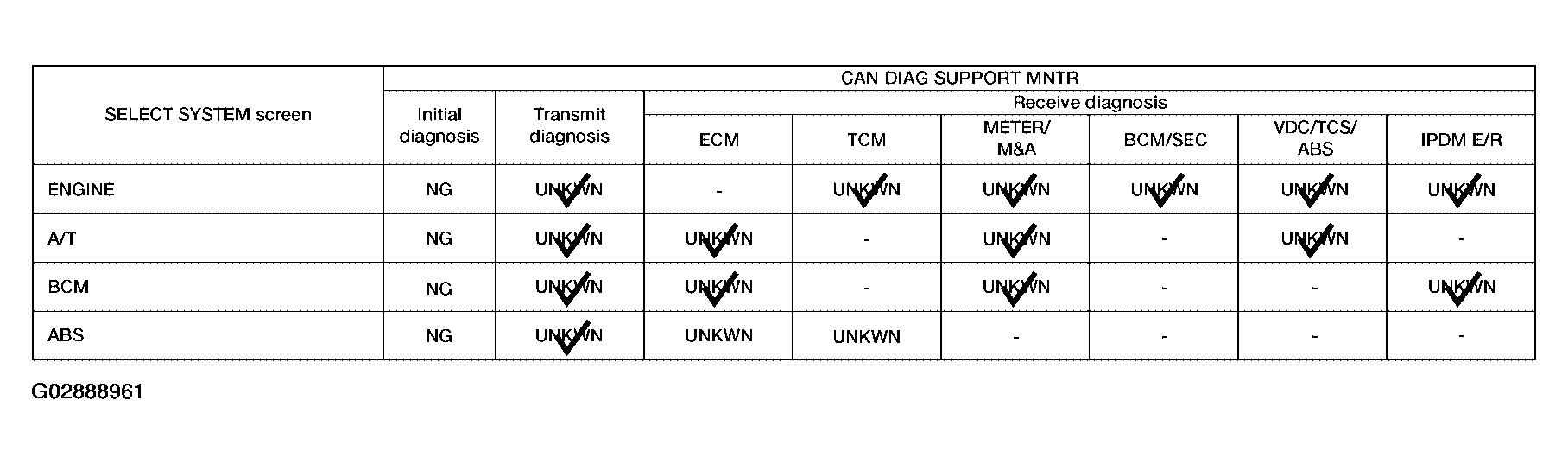

Fig 18: Check Sheet Results Case 14
G02888961Courtesy of NISSAN MOTOR CO., U.S.A.

Case 15

Check IPDM E/R ignition relay circuit. Refer to "IPDM E/R IGNITION RELAY CIRCUIT CHECK ".

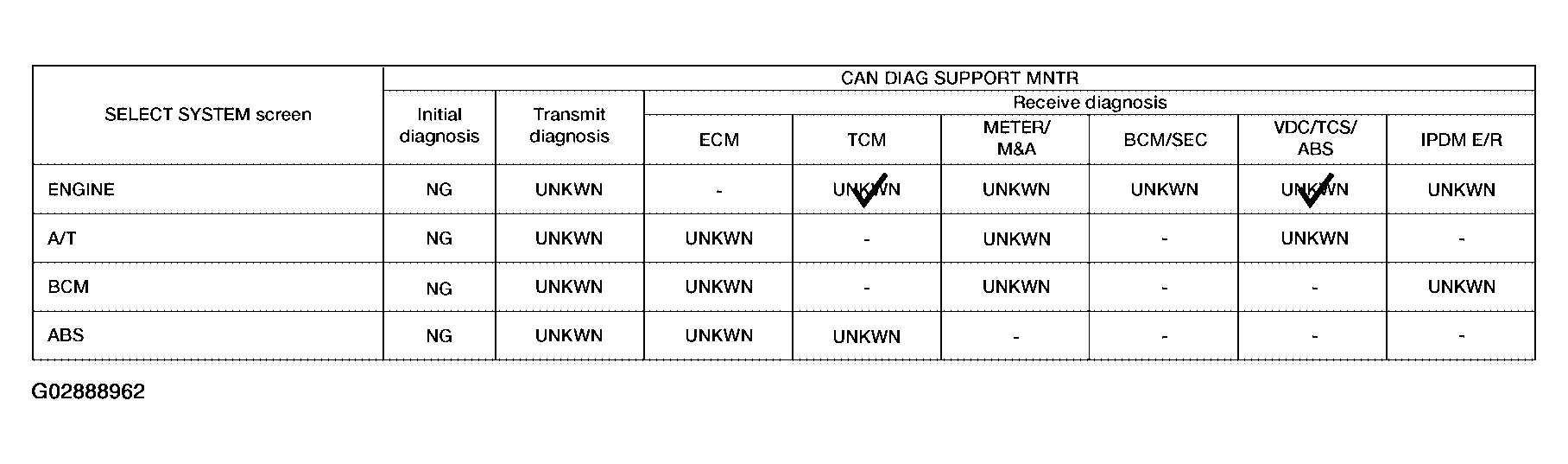

Fig 19: Check Sheet Results Case 15 (1 Of 2)
G02888962Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 20: Check Sheet Results Case 15 (2 Of 2)
G02888963Courtesy of NISSAN MOTOR CO., U.S.A.
