TCM Circuit Check

CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Check the terminals and connector of TCM for damage, bent or loose connection (control module-side and harness-side).
  OK or NG
  1. OK : GO TO 2.
  2. NG : Repair terminal or connector.
CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect TCM connector.
2. Check resistance between TCM harness connector F56 terminals 5 (L) and 6 (Y).
  5 (L) - 6 (Y) : Approx. 54 - 66Ω

  OK or NG
  1. OK : Replace TCM.
  2. NG : Repair harness between harness connector F59 and TCM.

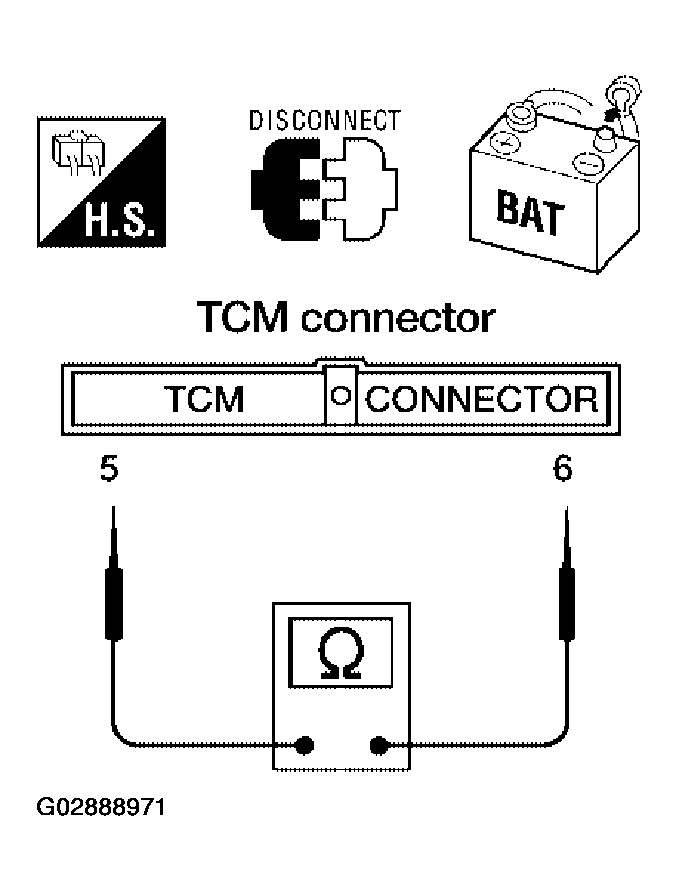

    Fig 1: Checking Resistance Between TCM Harness Connector F56 Terminals 5 (L) And 6 (Y)
    Courtesy of NISSAN MOTOR CO., U.S.A.
